Rear Drive Axle/Differential - Dana S110 and S130

Specifications

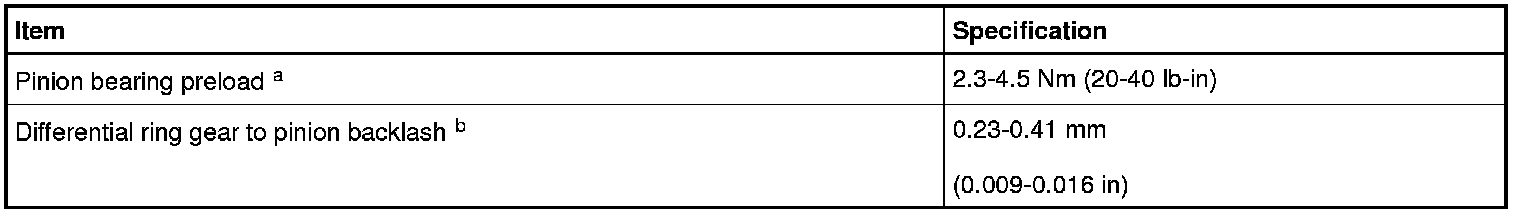

General Specifications





a Establish the pinion bearing preload prior to pinion seal installation.

b The acceptable backlash tolerance is ± 0.0508 mm (0.002 in) from the backlash etched in the differential ring gear. The tooth contact pattern can move only by adjusting backlash. The tooth contact pattern can move only in the direction of heel-to-toe and toe-to-heel. Depth of the tooth contact pattern is not adjustable. Contact Spicer Service at 1-800-826-4357 for assistance if unable to establish an acceptable tooth contact pattern within the limits of backlash.

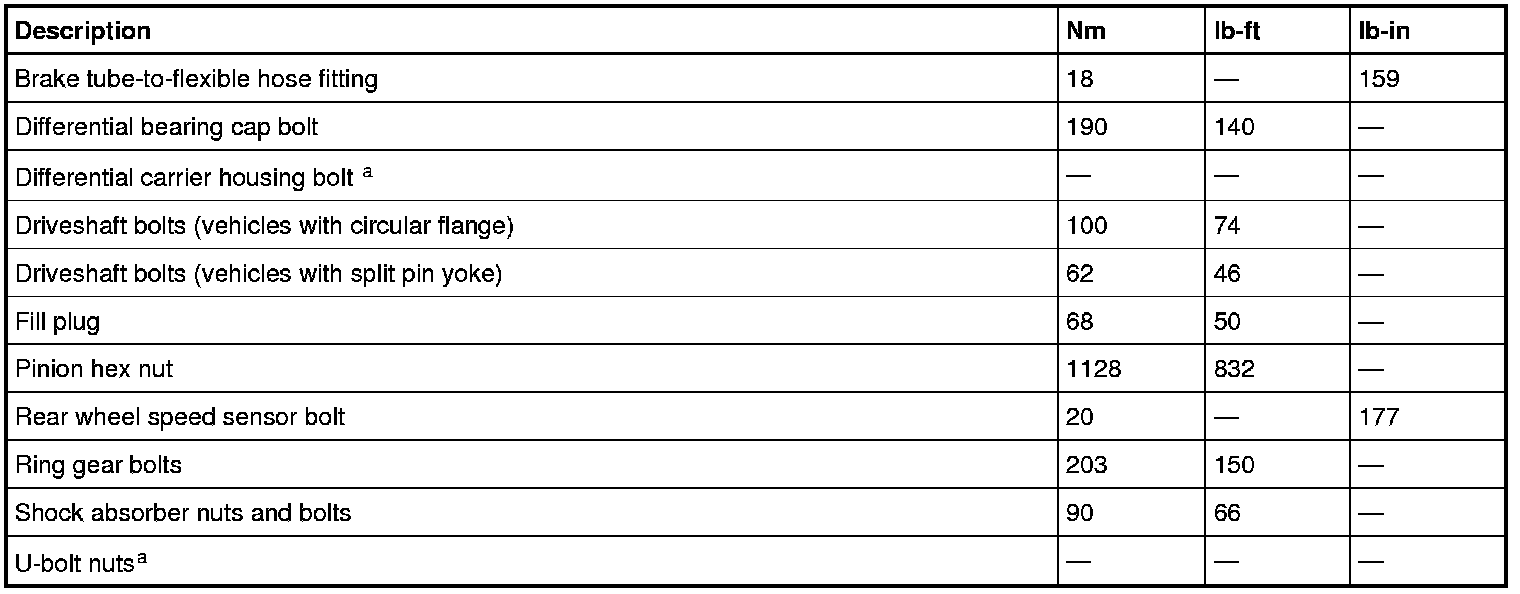

Torque Specifications





a Refer to the procedure in Differential Assembly.
