Transmission Connector Layouts
Transmission Connector Layouts

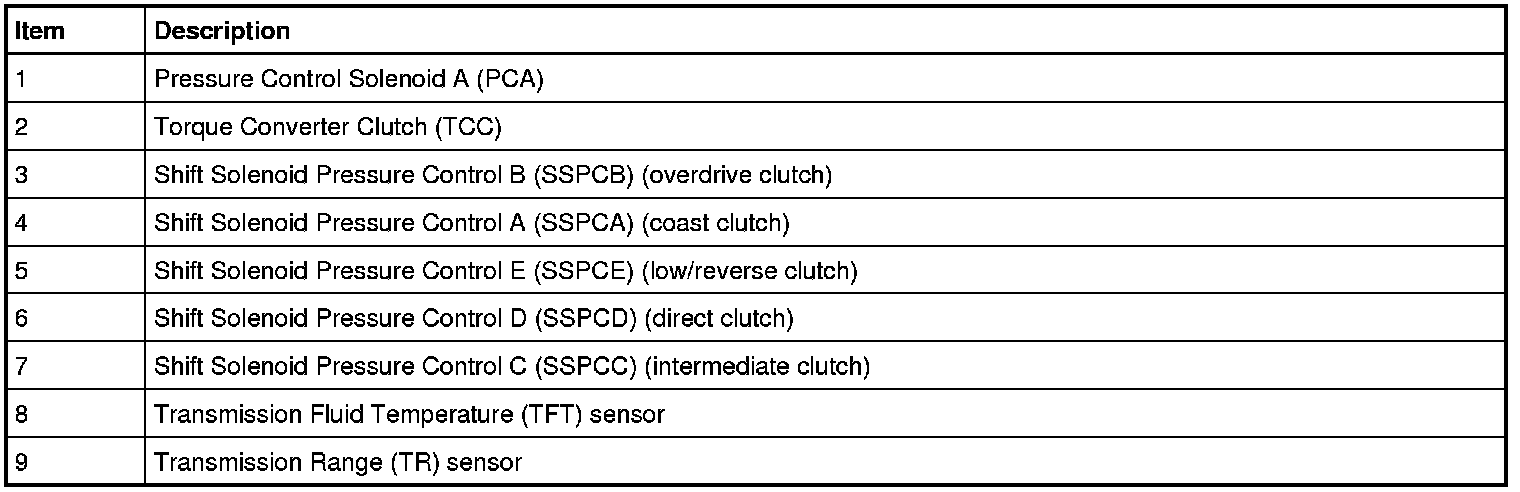

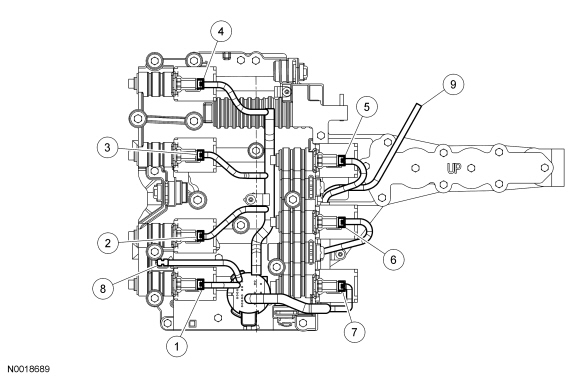

Internal Transmission Harness Connector/Component Locator

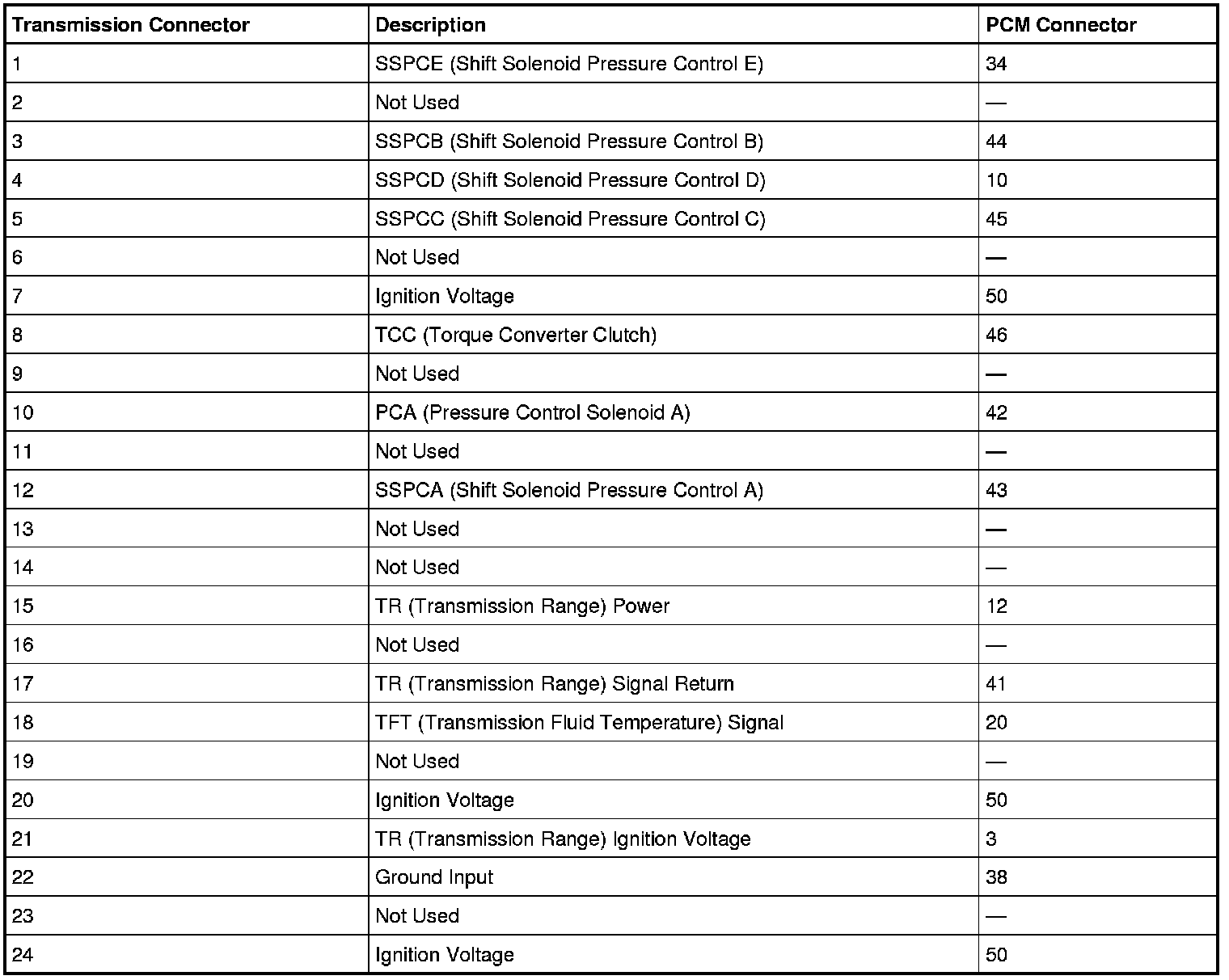

Transmission Vehicle Harness - C1385

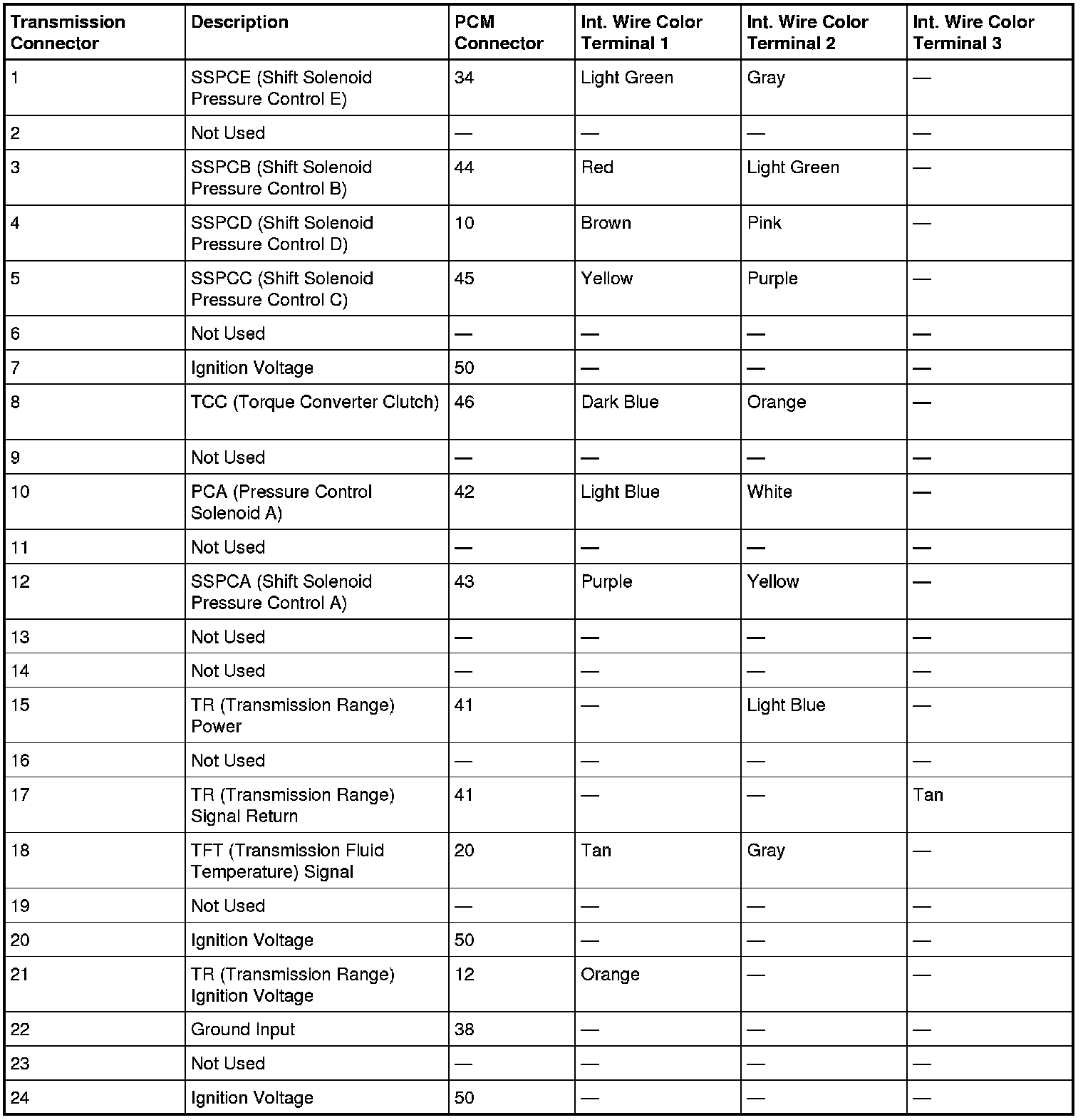

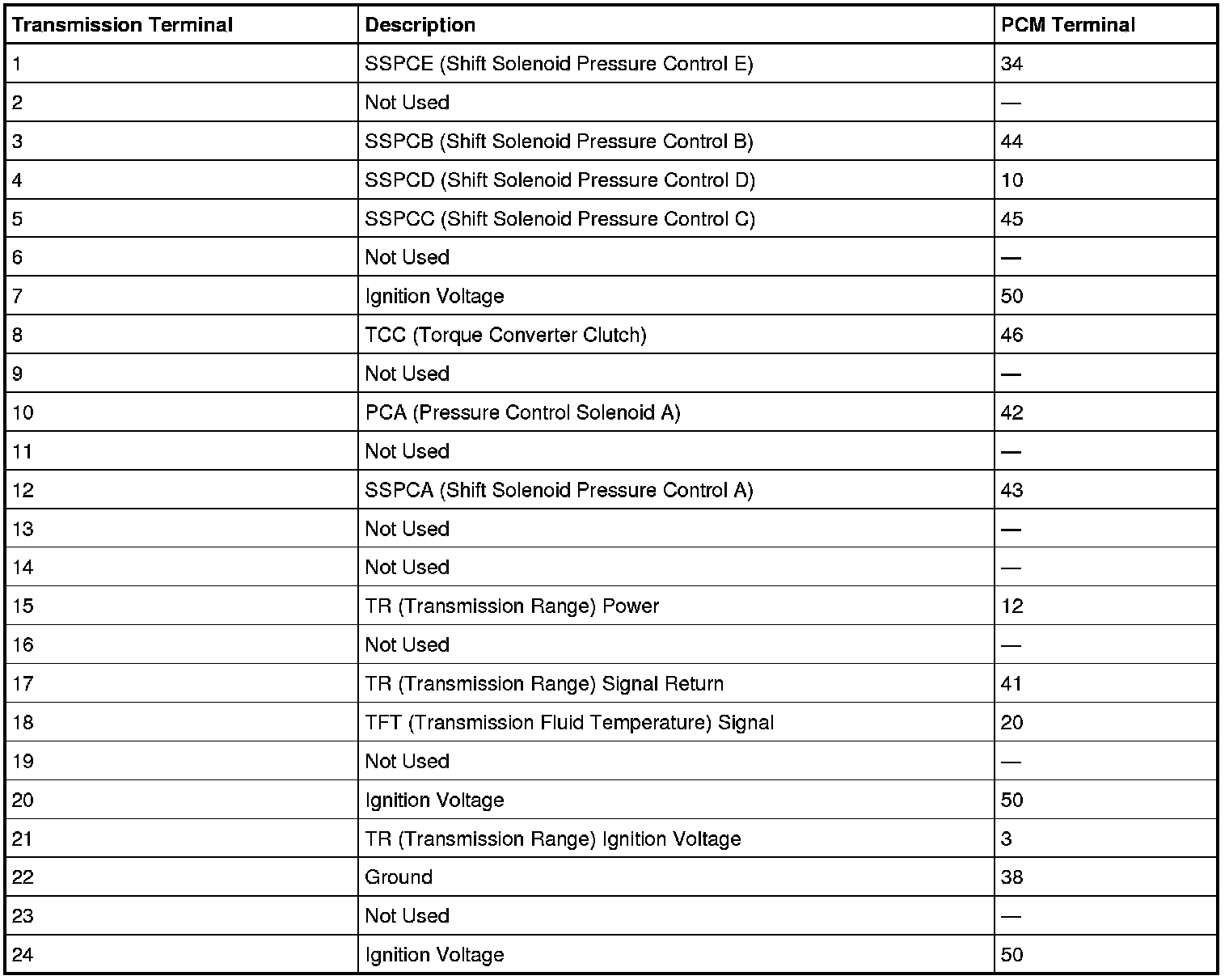

Transmission Internal Harness Connector

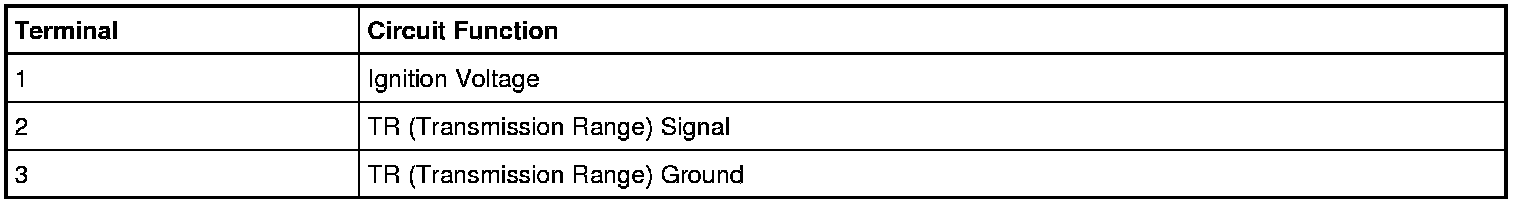

Internal Harness Transmission Range (TR) Sensor Connector - Tan
Internal Harness SSPC-x Solenoid Connector - Tan

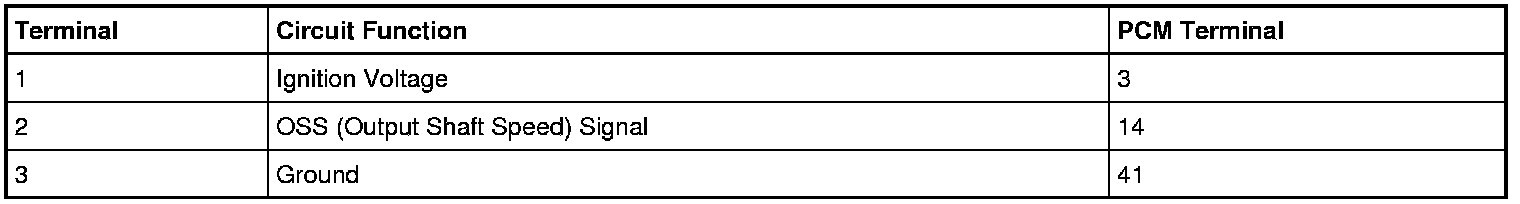

Output Shaft Speed (OSS) Sensor - C193

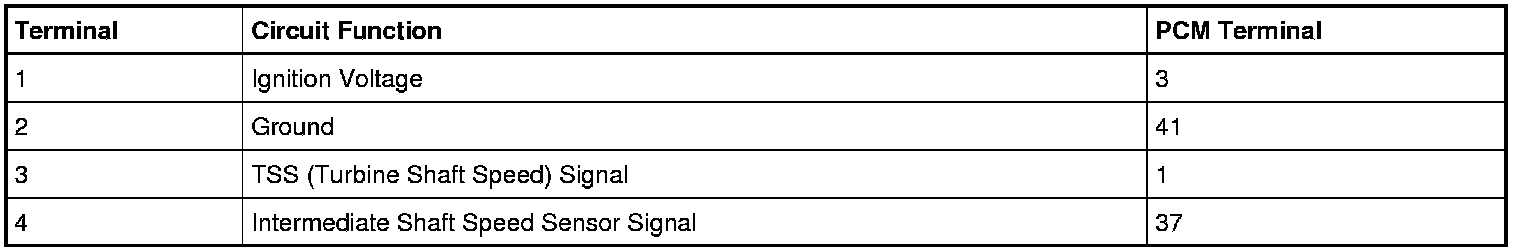

Turbine Shaft Speed (TSS) and Intermediate Shaft Speed Sensor - C1387
PCM - C175T
