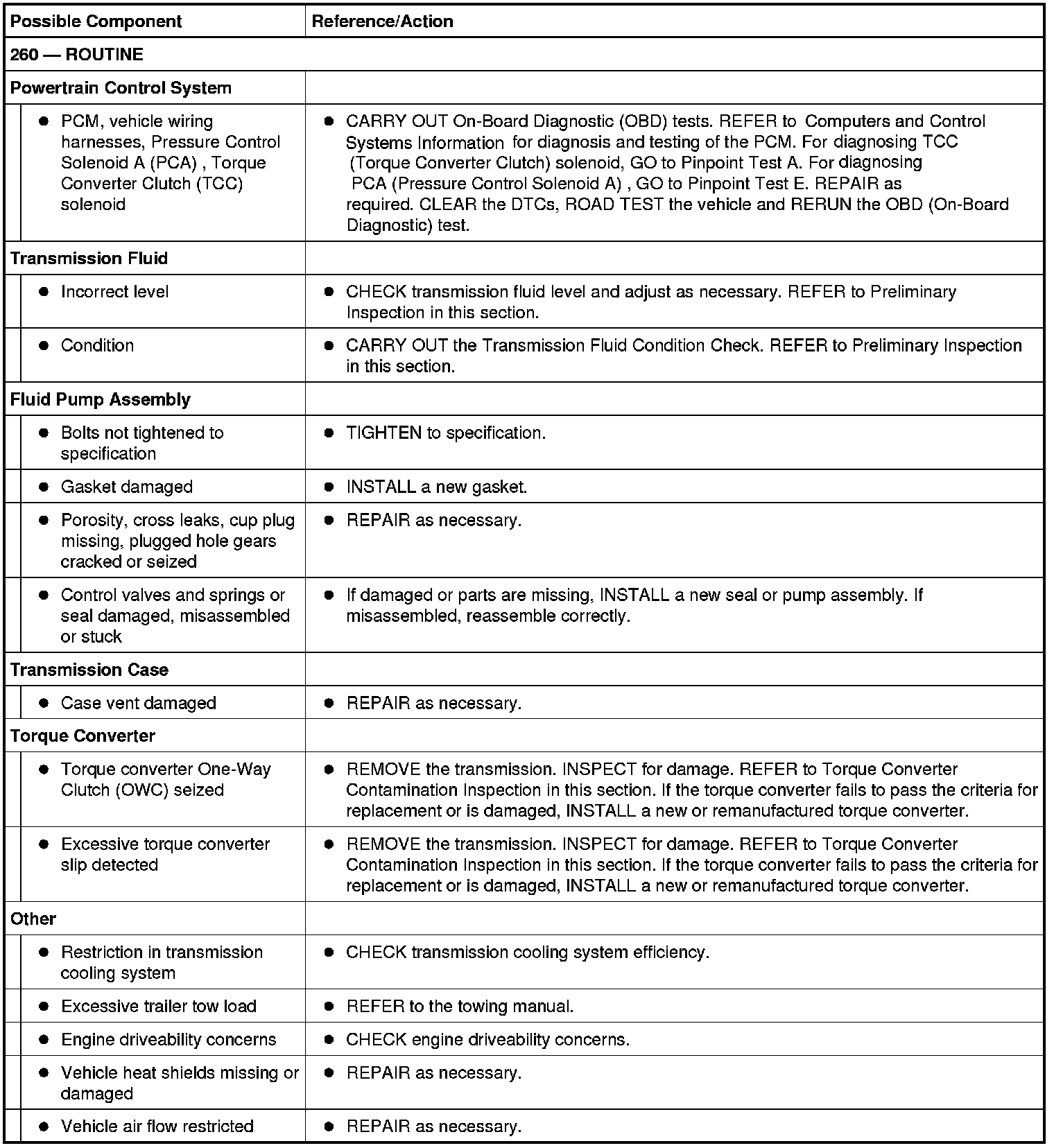

260, Transmission Overheating




Diagnostic Routines

Transmission Overheating

NOTE: Failure Mode Effect Management may be enabled, refer to Routine 266. 266, Power Take-Off (PTO) Concerns
