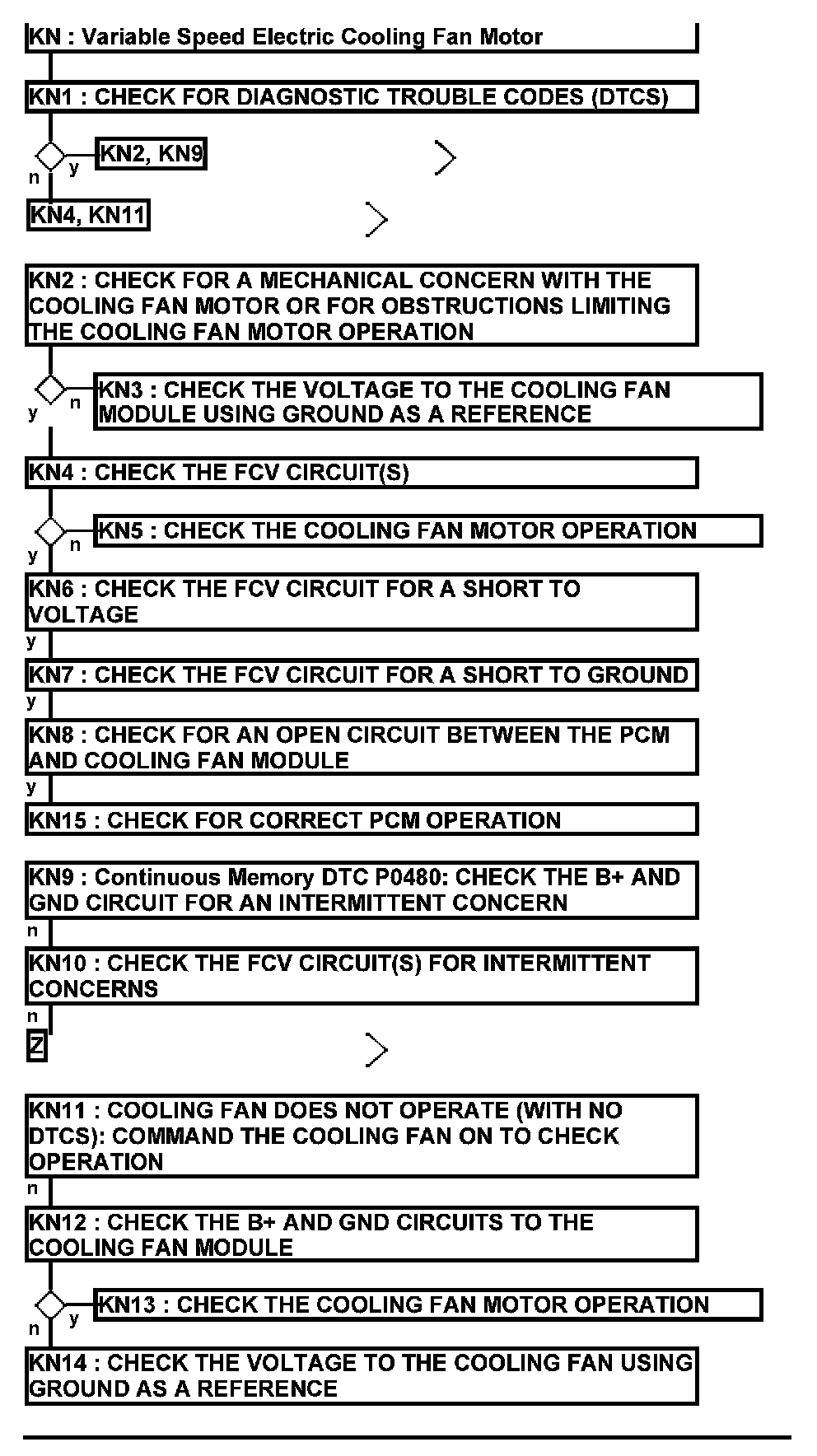

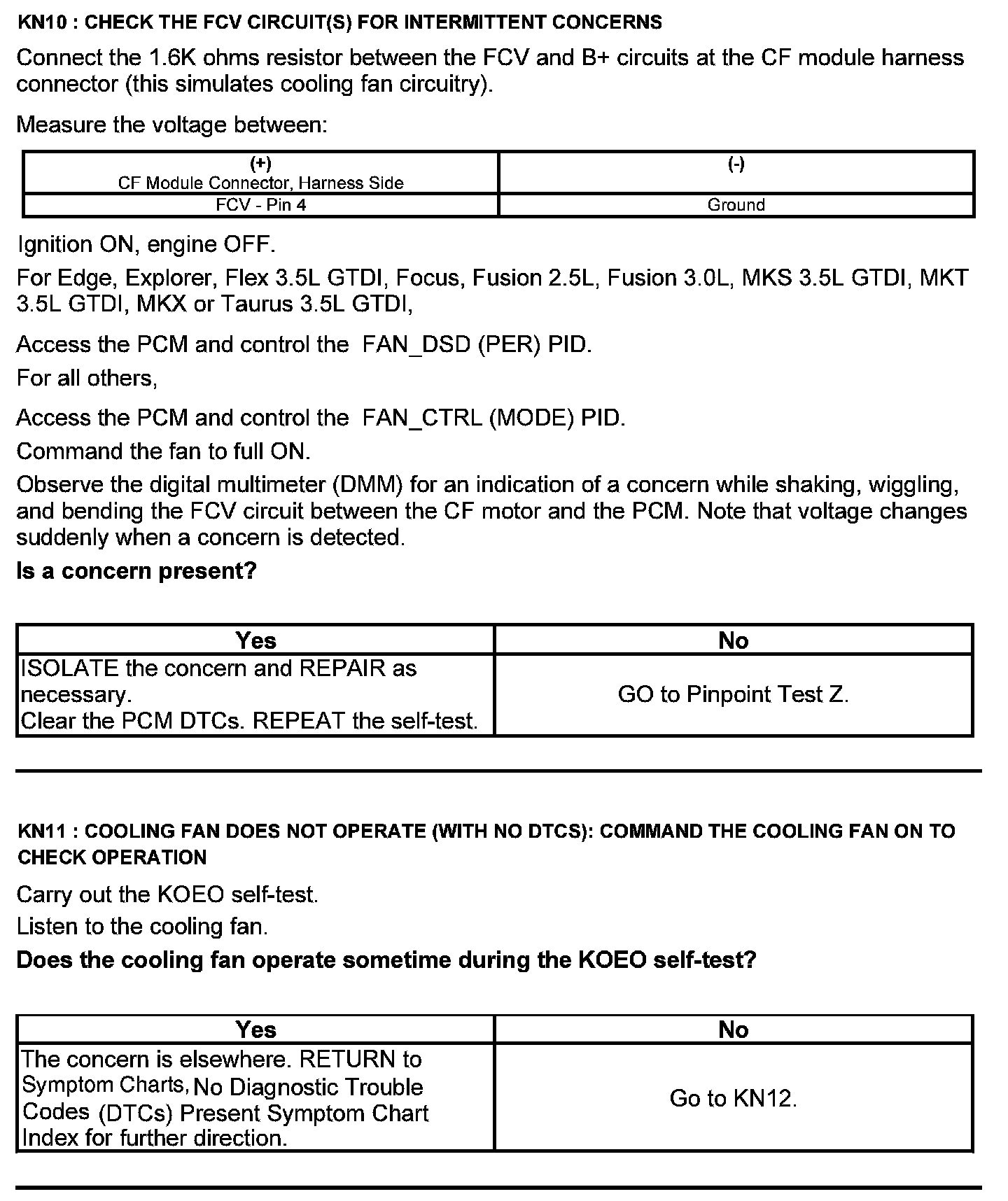

Test KN: Variable Speed Electric Cooling Fan Motor



Variable Speed Electric Cooling Fan Motor











Cooling Fan (CF) Module Connector





Harness Side






Cooling Fan (CF) Motor Connector





Harness Side






Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
