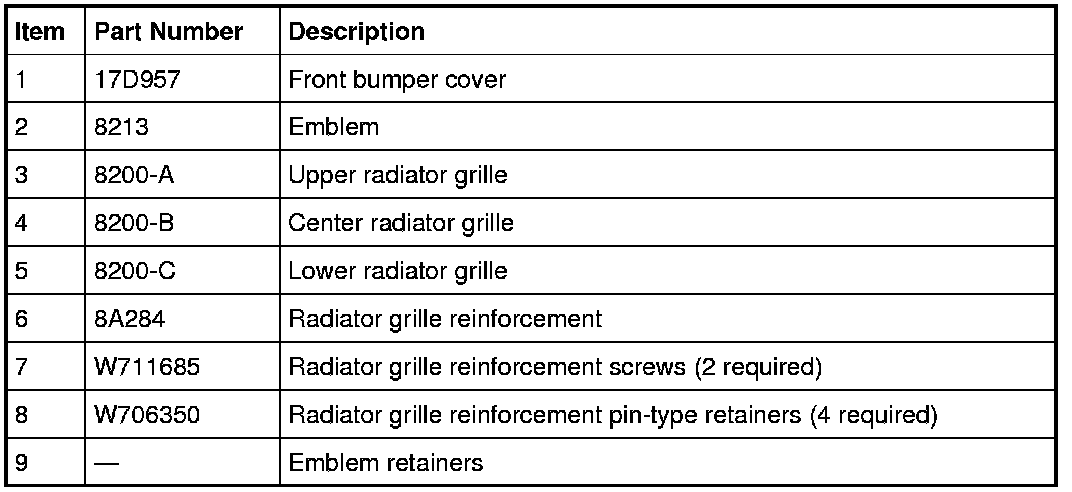

Radiator Grille
Radiator GrilleRemoval and InstallationAll grilles 1.
Remove the front
bumper cover.
Center grille only 2.
Remove the emblem retainers and remove the emblem.
All grilles 3.
Remove the radiator grille reinforcement.
4.
Release the radiator grille from the radiator grille reinforcement.
5.
To install, reverse the removal procedure.
