Parking Aid Module (PAM)

Parking Aid Module (PAM)

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

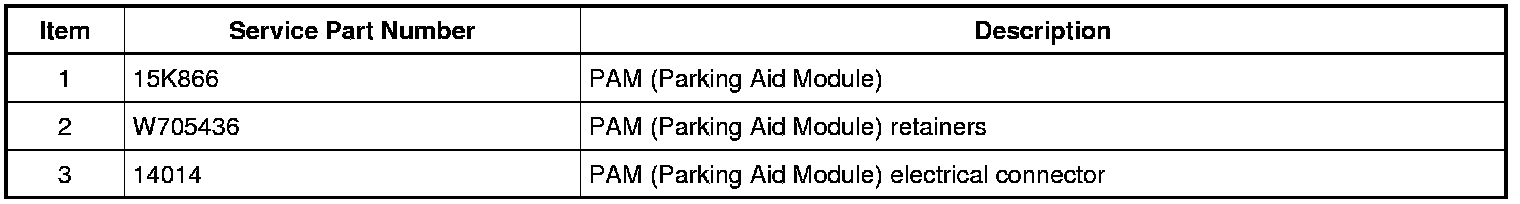

Exploded View

Parking Aid Module 4 Door









Parking Aid Module 5 Door










Removal

1. NOTE: Module configuration is required when a new PAM (Parking Aid Module) is being installed.

If a new module is being installed, upload the module configuration information from the PAM (Parking Aid Module) into the scan tool by following the instructions on the scan tool.

2. If equipped, remove the subwoofer. REFER to Speaker - Subwoofer .

3. Five door vehicles.





4.





5.





6. NOTE: Four door vehicle shown, 5 door similar.






7. For 5 door vehicles, remove the upper C-pillar trim panel. REFER to C-Pillar Trim Panel - Upper. C-Pillar Trim Panel - Upper

8. Five door vehicles with full bench rear seat.





9. Five door vehicles with 60/40 rear seat.





10. Five door vehicles.





11. Five door vehicles.





12. Four door vehicles.





13. Four door vehicles.





14. NOTE: Four door vehicle shown, 5 door similar.






Installation

1. To install, reverse the removal procedure.

2. If a new module has been installed, download the PAM (Parking Aid Module) configuration information from the scan tool to the new PAM (Parking Aid Module) by following the instructions on the scan tool.
