Rear Bumper: Service and Repair

Bumper - Rear

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

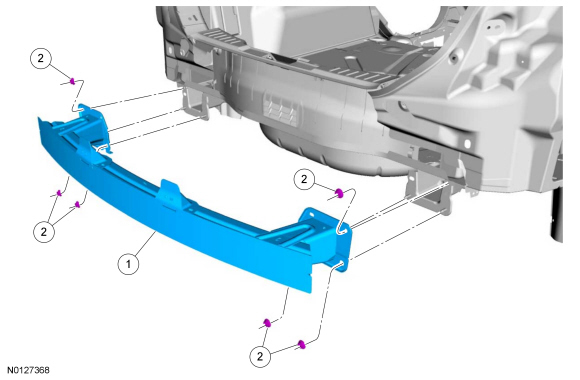

Exploded View

4-Door Sedan









5-Door Hatchback










Removal

NOTE: The removal steps in this procedure may include installation details.

1. Remove the rear bumper cover. REFER to Bumper Cover - Rear .

2.
- 25 Nm (18 lb-ft)





Installation

1. To install, reverse the removal procedure.
