Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Connector Views >> C908 Interior/Map Lamps Assembly, Left Front

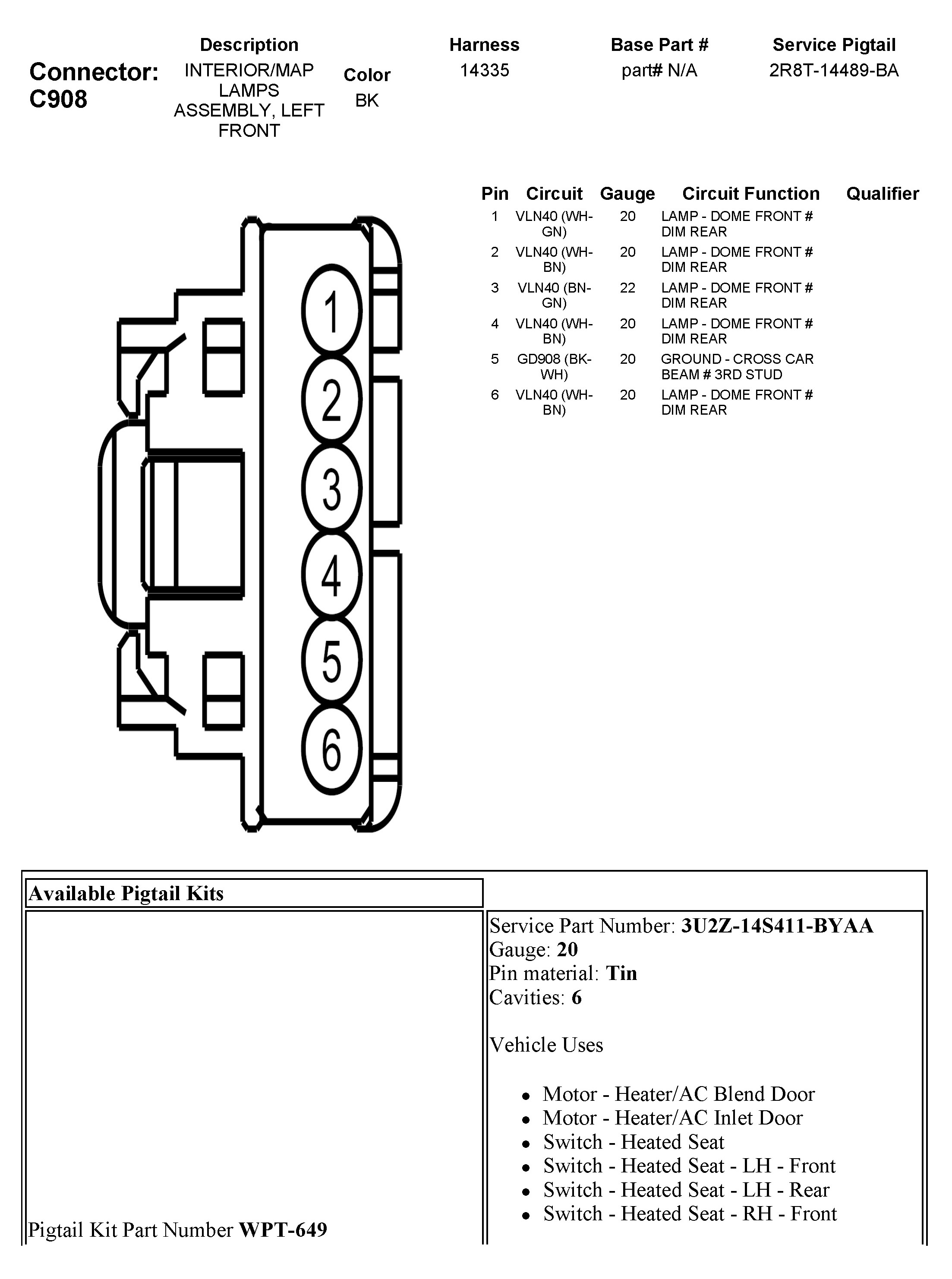

C908 Interior/Map Lamps Assembly, Left Front
