Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Fusion AWD V6-3.0L Flex Fuel
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>

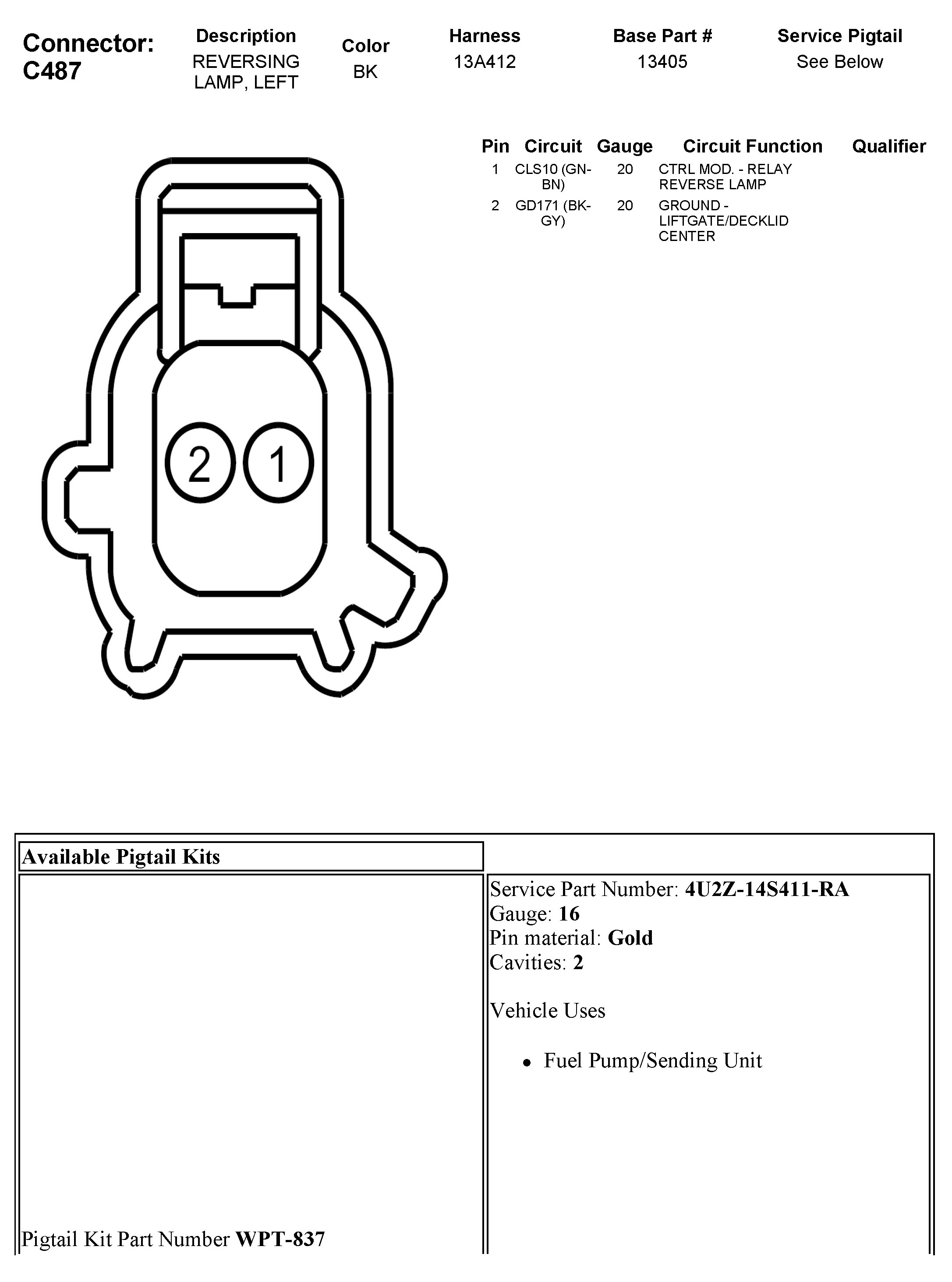

C487 Reversing Lamp, Left
C487 Reversing Lamp, Left
