Automatic Transmission

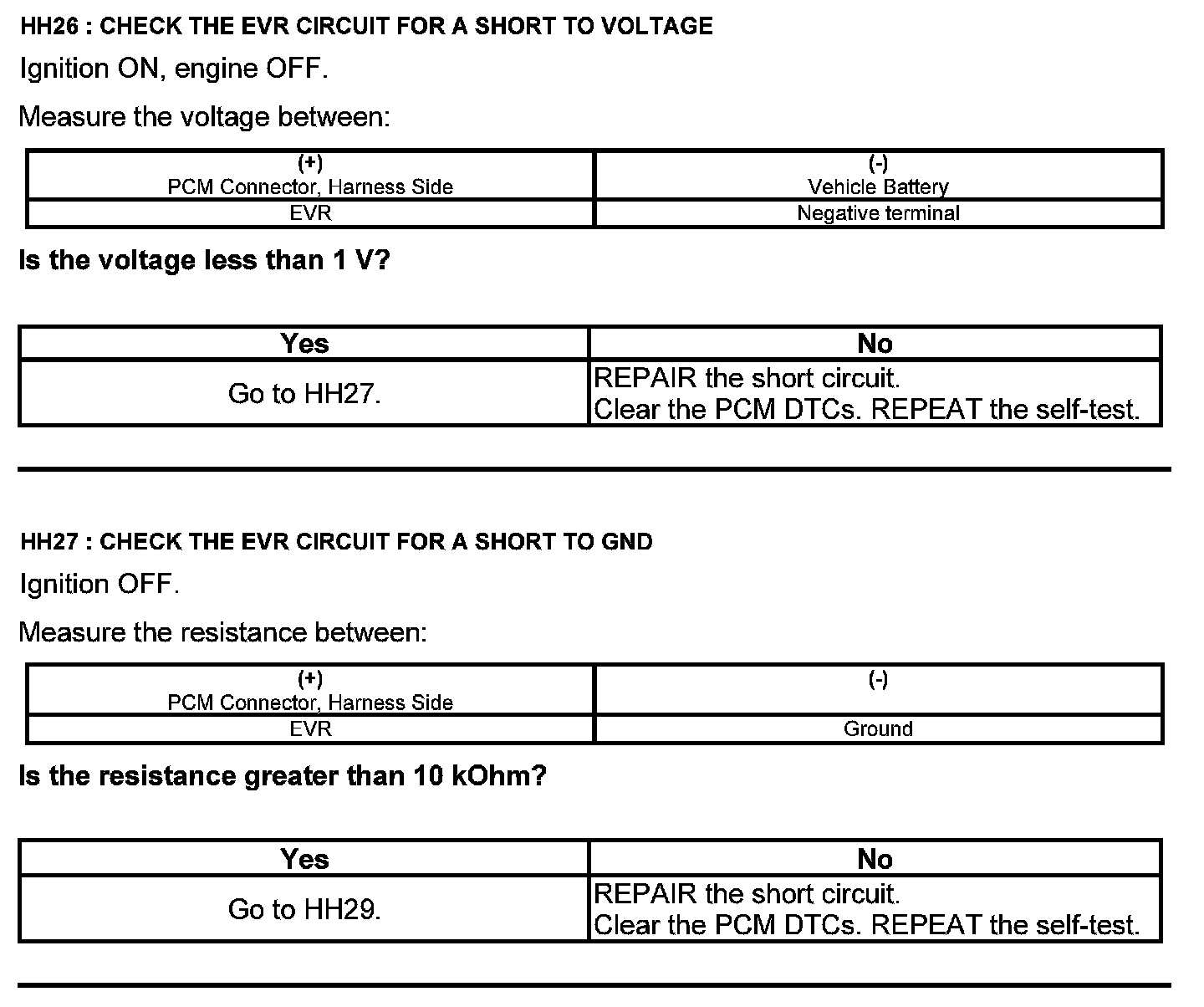

Exhaust Gas Recirculation System Module (ESM) - Automatic Transmission
















EGR System Module (ESM) Connector





Harness Side






Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
