Automatic Transaxle/Transmission - 6F35
>>
Diagnostic Routines
>>
Shift Concerns: 210/310 - 249/349
>>
242/342, Harsh 3-4 Shift (Automatic)
242/342, Harsh 3-4 Shift (Automatic)
Diagnosis By Symptom
Diagnostic Routines

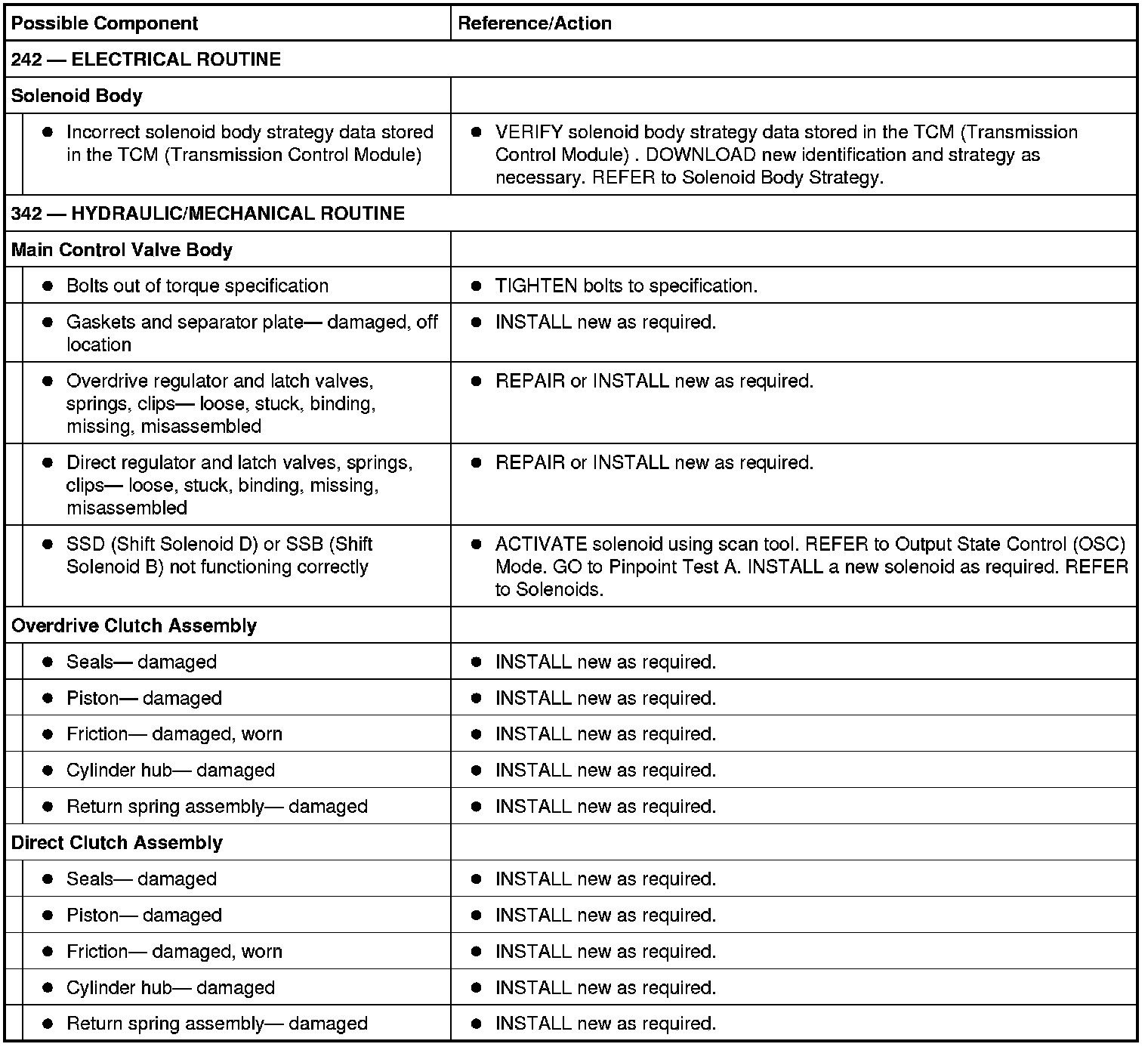

Shift Concerns: Harsh 3-4 Shift (Automatic)
