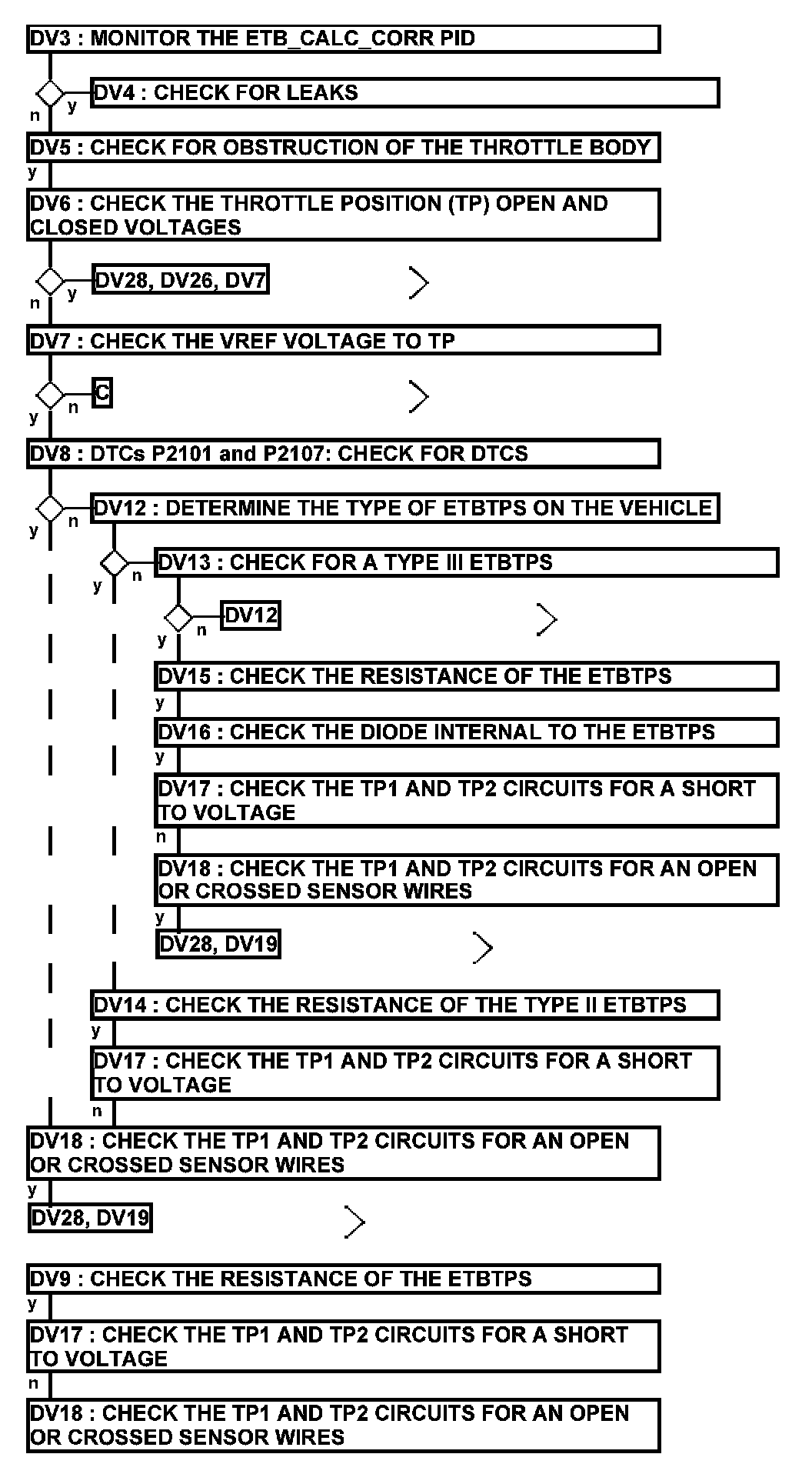

Test DV: Throttle Body Assembly Electronic Throttle Control (ETC)

Throttle Body Assembly Electronic Throttle Control (ETC)

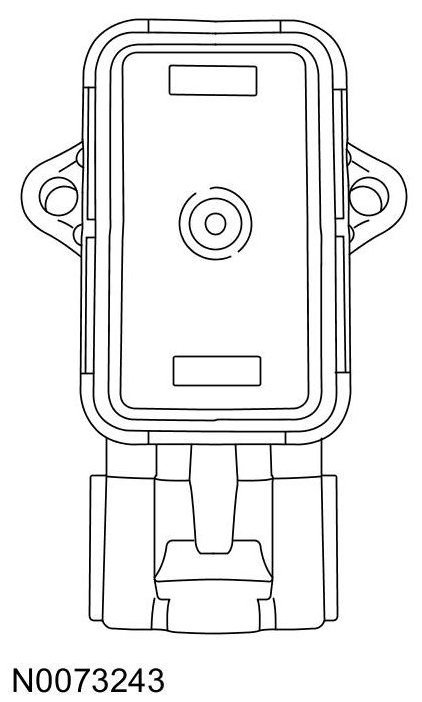

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector

Harness Side

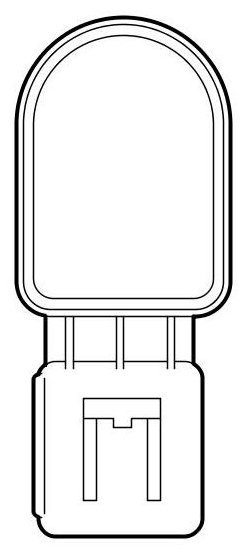

Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector

Harness Side

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.

Harness Side
