Automatic Transaxle/Transmission - 6R80

Specifications

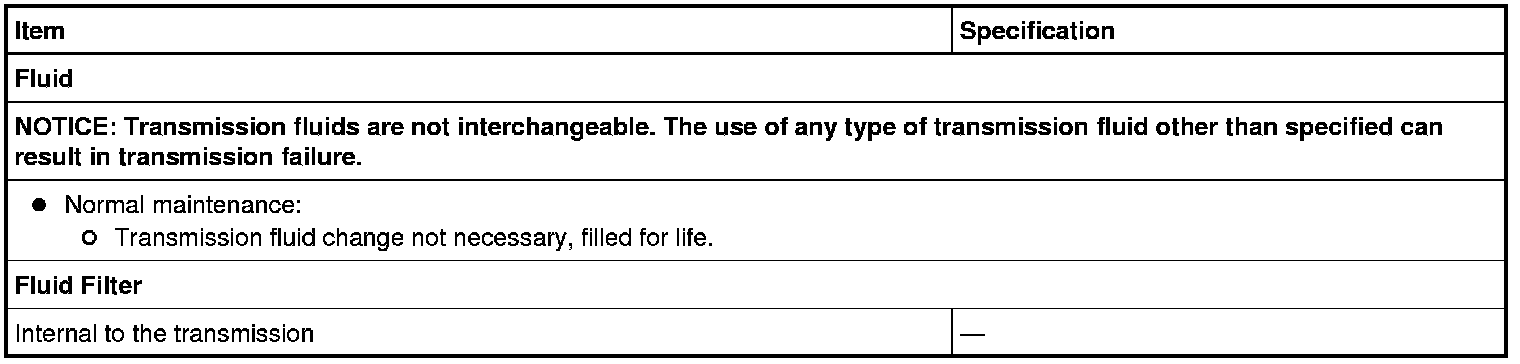

General Specifications






Assembly Weight






Clutch Application Chart






- D = Drive Clutch

- H = Hold Clutch

- O/R = Overrunning

a Clutch released when vehicle speed is above 3 mph.

Solenoid Operation Chart





CB = Clutch brake

NC = Normally closed

NH = Normally high

NL = Normally low

a Solenoid state changes if vehicle is moving forward with the selector lever in the NEUTRAL position.

b Solenoid is On when vehicle is above 3 mph.





Stall Speed






End Play

NOTE: All friction and steel plates use a wave design plate.






Clutch Plate Quantity 3.7L Engine






Clutch Plate Quantity 5.0L Engine






Shift Speeds

NOTE: Shift speed ranges are approximate for all applications. For specific applications (engine, axle ratio, tire size and application), refer to the Automatic Transmission Specification booklet.

Always drive the vehicle in a safe manner according to driving conditions and obey all traffic laws.






Torque Specifications





a Refer to the procedure in Automatic Transmission/Transaxle.
