Register - Passenger Side

Register - Passenger Side

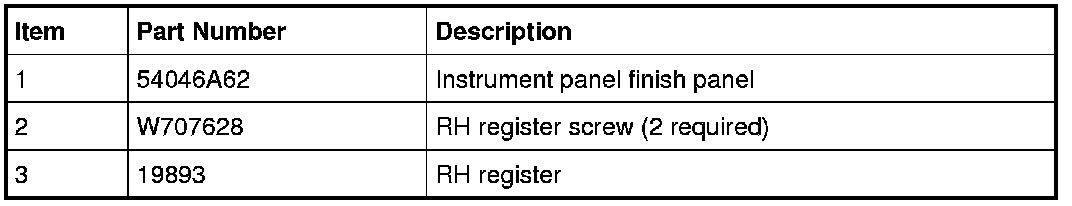

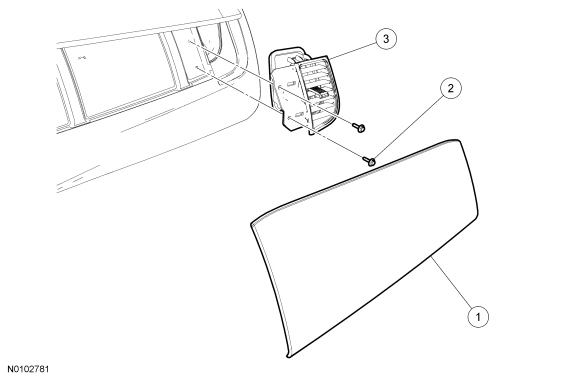

Removal and Installation

1. Remove the instrument panel finish panel.

2. Remove the 2 RH register screws.

3. Remove the RH register.

4. To install, reverse the removal procedure.
