Brake Shoe: Adjustments
Brake Shoe Adjustment 1.
Remove the
brake drum. For additional information, refer to Brake Drum .
2.

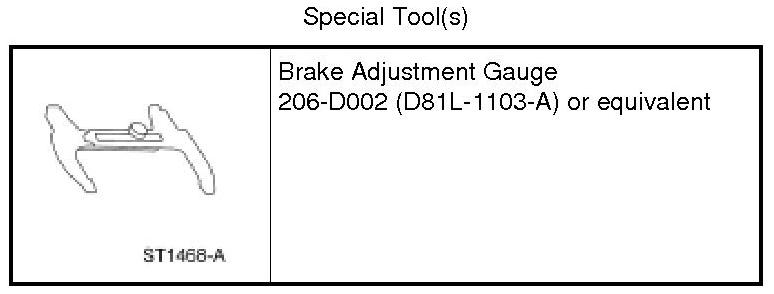

Using the Brake Adjustment Gauge, measure the inside diameter of the
brake drum.
3.
Position the Brake Adjustment Gauge on the brake shoes and linings and adjust accordingly.
4.
Install the
brake drum. For additional information, refer to Brake Drum .
