Crankshaft End Play
Crankshaft End PlayNOTE: Refer to the Engine system level.
1.

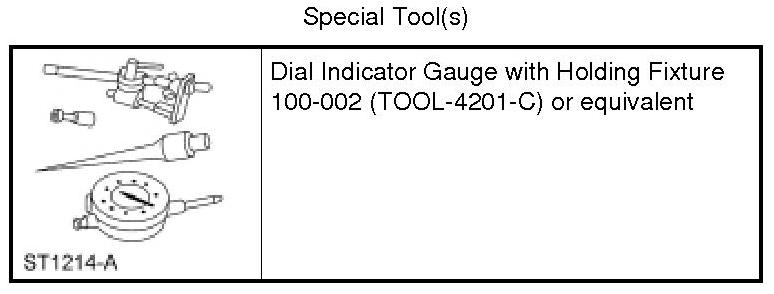

Install the Dial Indicator Gauge with Holding Fixture.
2.
Position the
crankshaft to the rear of the cylinder block.
3.
Zero the Dial Indicator Gauge.
4.
Move the
crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
