Transaxle Support Insulator - Anti-Roll

Transaxle Support Insulator - Anti-Roll









Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

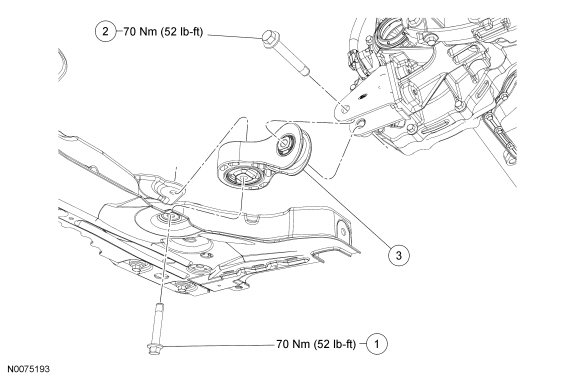

2. Remove the 2 bolts and the nut, rotate the bottom of the engine forward enough so the roll restrictor clears the subframe and remove the roll restrictor.





Installation

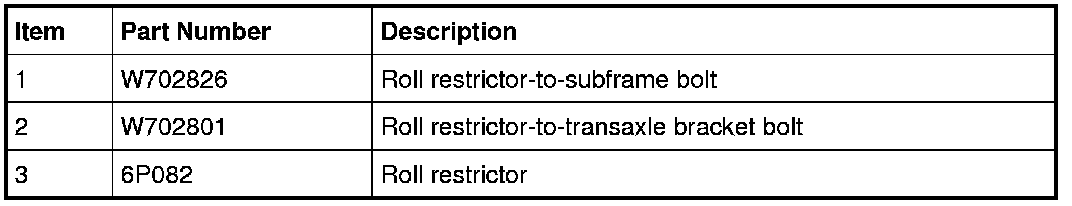

1. NOTICE: The roll restrictor bolts are different lengths. If the long bolt is used to hold the roll restrictor to the subframe, damage to the steering rack may occur.

Position the roll restrictor in place and loosely install the roll restrictor-to-subframe bolt.






2. Install the roll restrictor-to-transaxle bracket bolt and tighten both of the roll restrictor bolts.
- Tighten to 70 Nm (52 lb-ft).
