Tire Monitor System - TPMS Lamp ON/Wheel Bead Corrosion
TSB 12-6-206/06/12
TIRE PRESSURE MONITOR SYSTEM (TPMS)
WARNING LAMP ILLUMINATED - 22 INCH WHEELS
ONLY
FORD:
2009-2013 Edge
LINCOLN:
2009-2013 MKX
This article supersedes TSB 11-5-16 to update the vehicle model years and Service Procedure.
ISSUE
Some 2009-2013 Edge and MKX vehicles equipped with 22 inch wheels may exhibit the tire pressure monitor system (TPMS) warning lamp illuminated
identifying low tire pressure in one or more wheels.
ACTION
Follow the Service Procedure steps to correct the
condition.
SERVICE PROCEDURE
1. Is the TPMS warning light illuminated identifying one or more tires low on air pressure?
a. Yes - continue to Step 2.
b. No - this procedure doe not apply, refer to Workshop Manual (WSM), Section 204-04 for normal diagnostics.
2. Determine which tire(s) have low air pressure by using either an air pressure gauge or the TPMS diagnostics.
3. For the tire(s) identified with low air pressure, determine if air is leaking from the tire bead seat area on wheel(s) by removing the wheel/tire assembly from the vehicle and either spraying with soapy water solution or using a dunk tank. Is the air leak coming from the tire bead seat area?
a. Yes - continue to Step 4.
b. No - this procedure does not apply, refer to WSM, Section 204-04 for normal diagnostics.
4. Remove all four (4) wheels from vehicle.
5. Disassemble tires from wheels, refer WSM 204-04.
6. On each wheel, clean the tire sealing surface with a 3M Maroon Scotch Brite pad to remove corrosion and dirt.
7. On each tire:
a. Remove vents and whiskers from both the inboard and outboard bead seat area using a coarse grit emery cloth. (Figure 1)

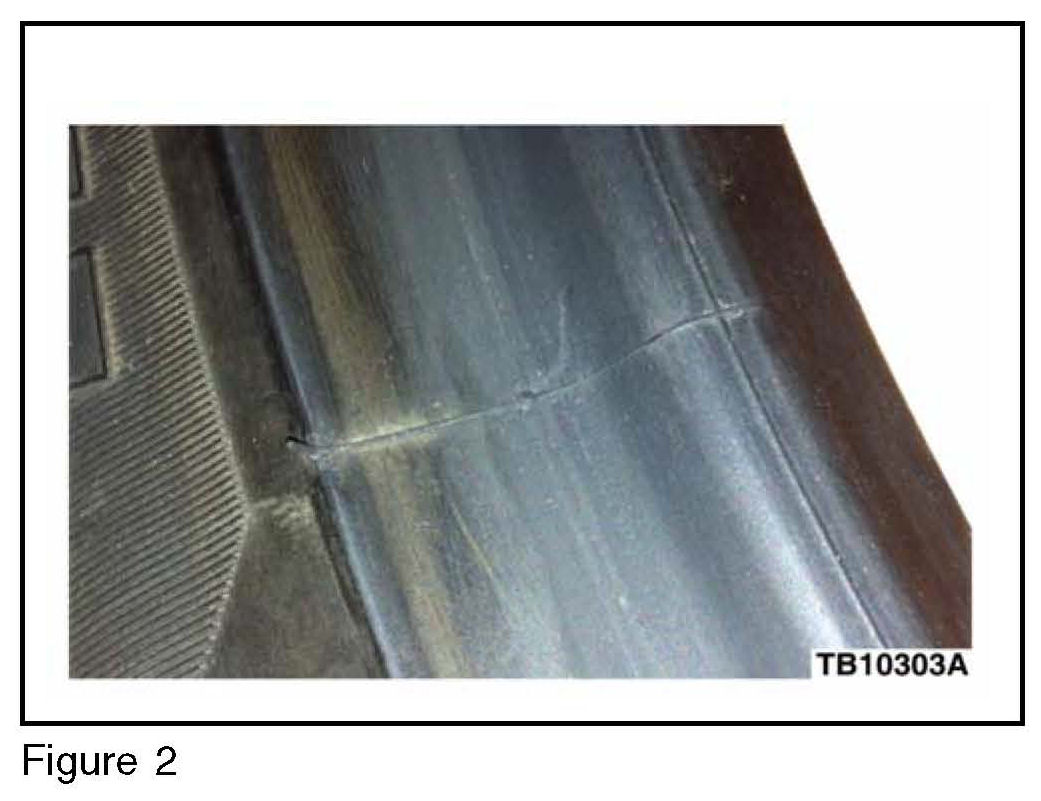

b. Perform 10 circumferential rub cycles (back and forth) per side until surface is smooth. (Figure 2)
8. Reinstall tires onto wheels.
9. Before inflating, depress inboard side of each tire and apply bead sealant circumferentially to the entire inboard wheel bead seat surface. (Figure 3)
a. The sealant is being applied to the inboard wheel bead seat surface and the illustration is a wheel cross section with the arrows showing the areas to apply the bead sealer. (Figure 3)
10. Repeat Step 9 and apply the sealant to the outboard wheel bead seat surface. (Figure 3)
11. Inflate each tire to seat the tire to the wheel and let stand for 15 minutes, refer to WSM, Section 204-04.
12. Balance each wheel and tire assembly.
13. Install wheels on vehicle, refer to WSM, Section 204-04.
Please advise the customer that if they have a new
tire or wheel installed after this repair procedure
that this procedure may have to be performed again
on the new tire and wheel.
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited
Warranty Coverage Warranty/ESP coverage limits/policies/prior approvals
are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
OPERATION DESCRIPTION TIME
120602A 2009-2013 Edge And 1.7 Hrs.
MKX: Follow Service
Procedure To Apply Sealer
On All Four (4) Wheel/Tire
Assemblies (Do Not Use
With Any Other Labor
Operations)
DEALER CODING
CONDITION
BASIC PART NO. CODE
TIRE 01
