Fog/Driving Lamp: Service and Repair

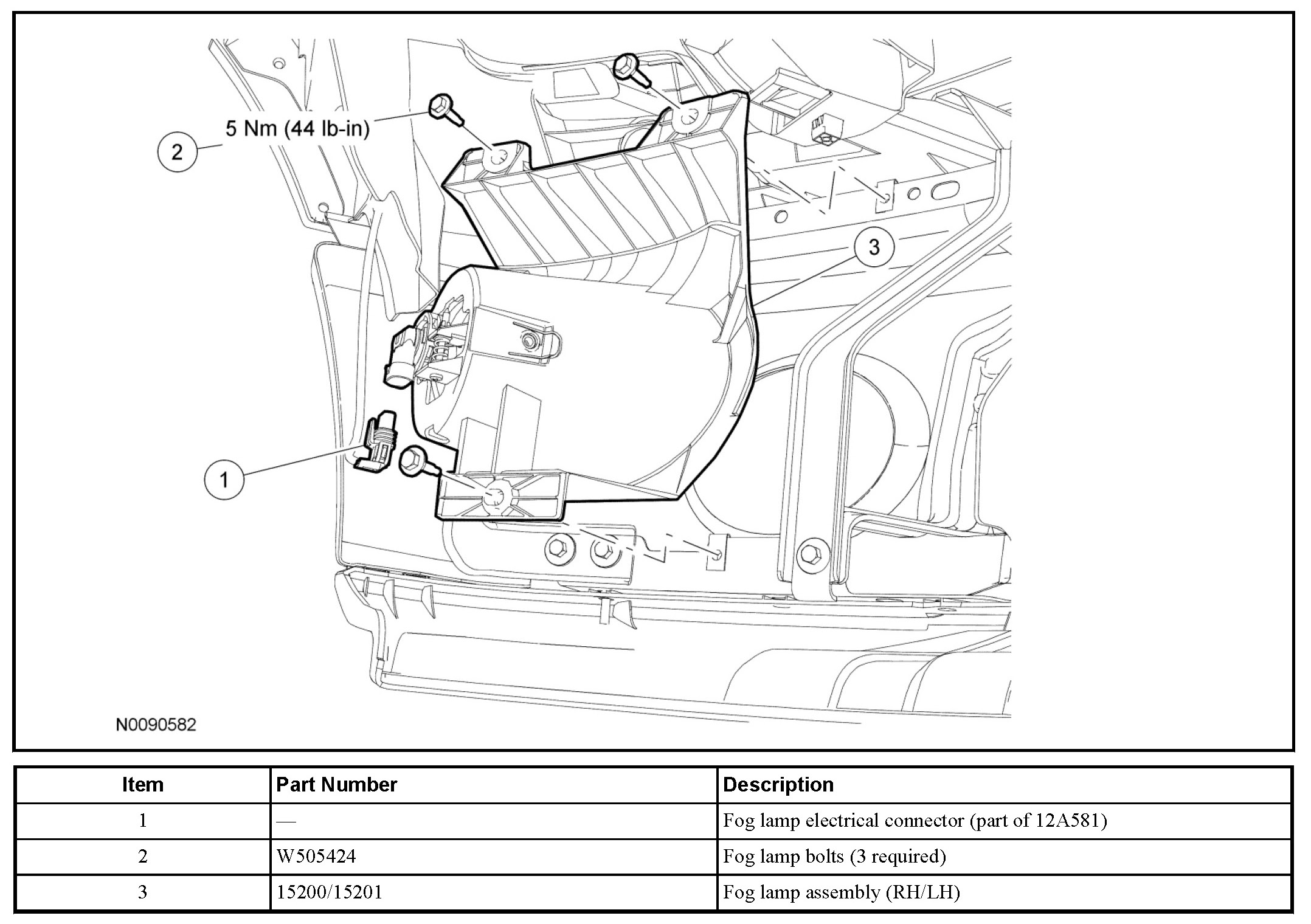

Fog Lamp







Removal and Installation

NOTE: Make sure the fog lamp switch and ignition switch are in the OFF position.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the fog lamp electrical connector.
3. Remove the 3 bolts and the fog lamp bracket.
4. To install, reverse the removal procedure.
