Front Door Trim Panel

REMOVAL
1. Disconnect and isolate battery negative cable.

Trim Panel Handle:

2. Using a small flat bladed tool or equivalent, press retaining clip upward through cutout in handle cover and remove cover.

Trim Panel Fasteners:

3. Remove switch bezel and disconnect electrical connectors.
4. Remove the screws.

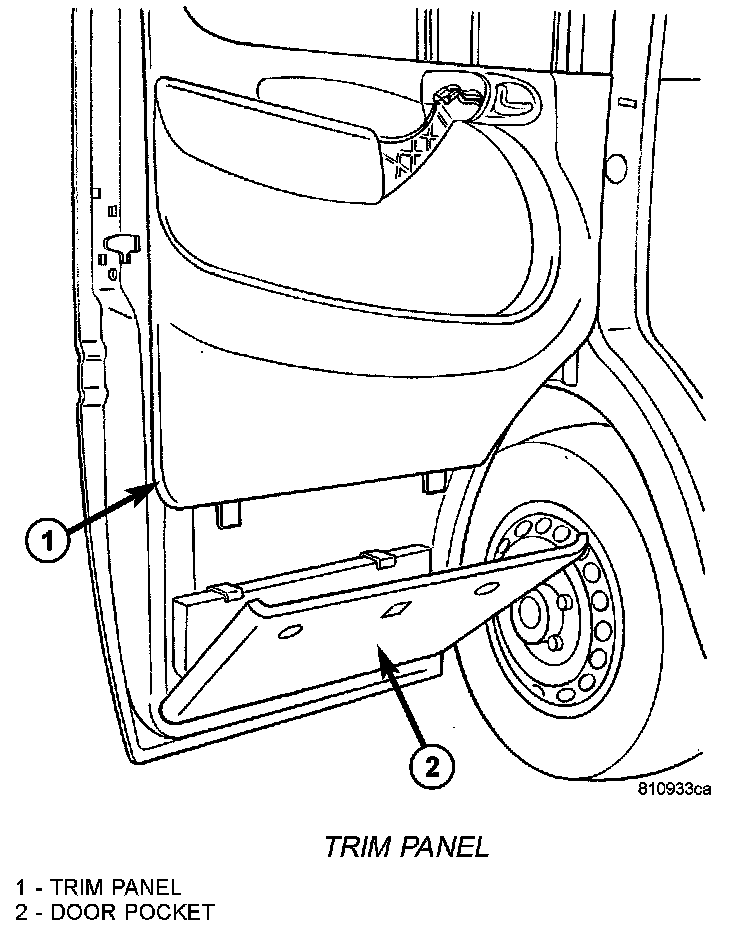

Trim Panel:

5. Remove mounting ring and remove window crank, if equipped.
6. Open pocket door.

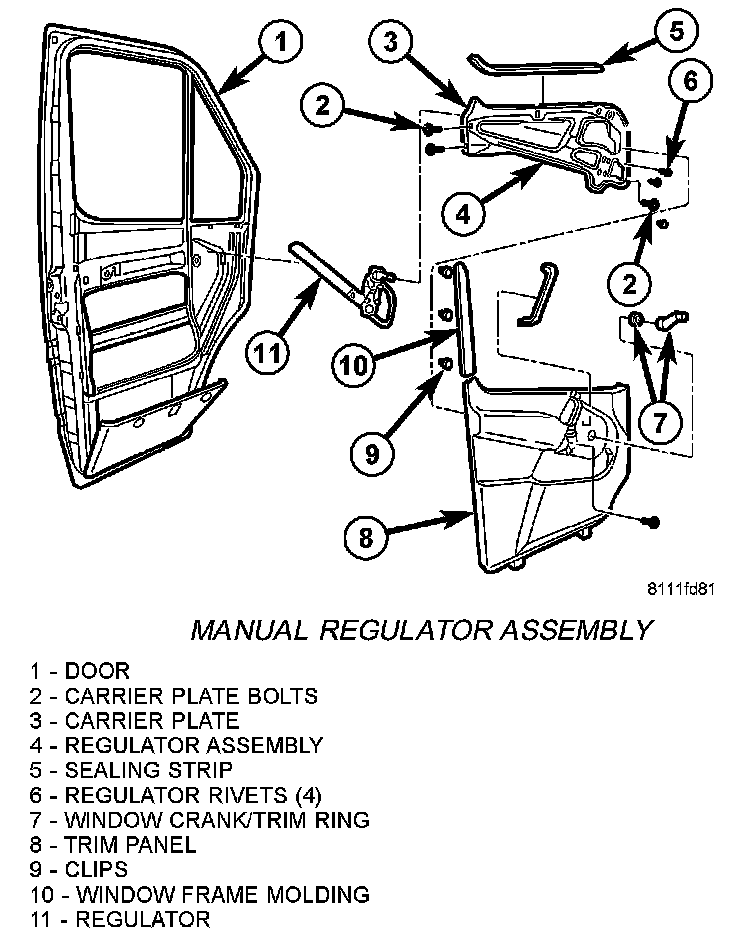

Manual Regulator Assembly:

7. Using a trim stick C-4755 or equivalent, separate window frame molding from door
8. Slightly pull door trim upward and swing away slightly

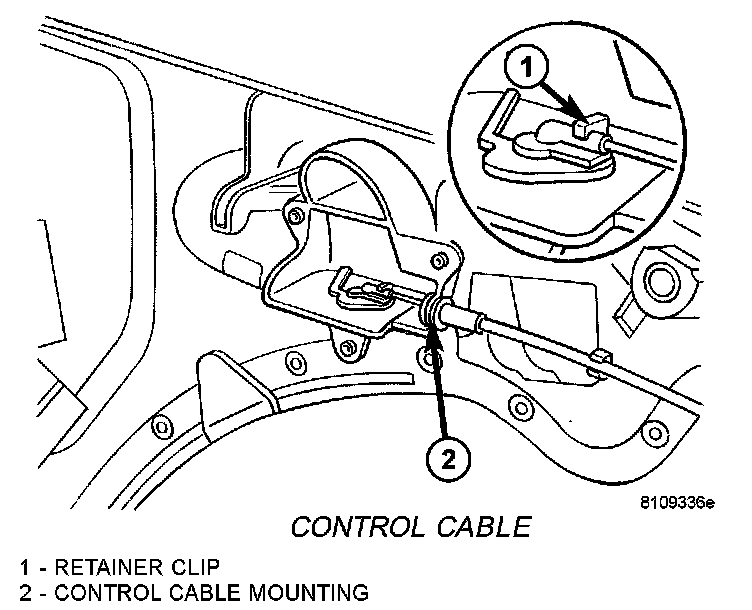

Control Cable:

9. Unlock retainer clip and disconnect control cable

INSTALLATION
1. Position trim panel and connect control cable
2. Install trim panel
3. Position window frame molding and seat clips fully
4. Close pocket door
5. Install window crank and mounting ring, if equipped
6. Install handle screws
7. Connect electrical connectors and install switch bezel
8. Install handle cover
9. Connect battery negative cable
