Electrical Diagrams

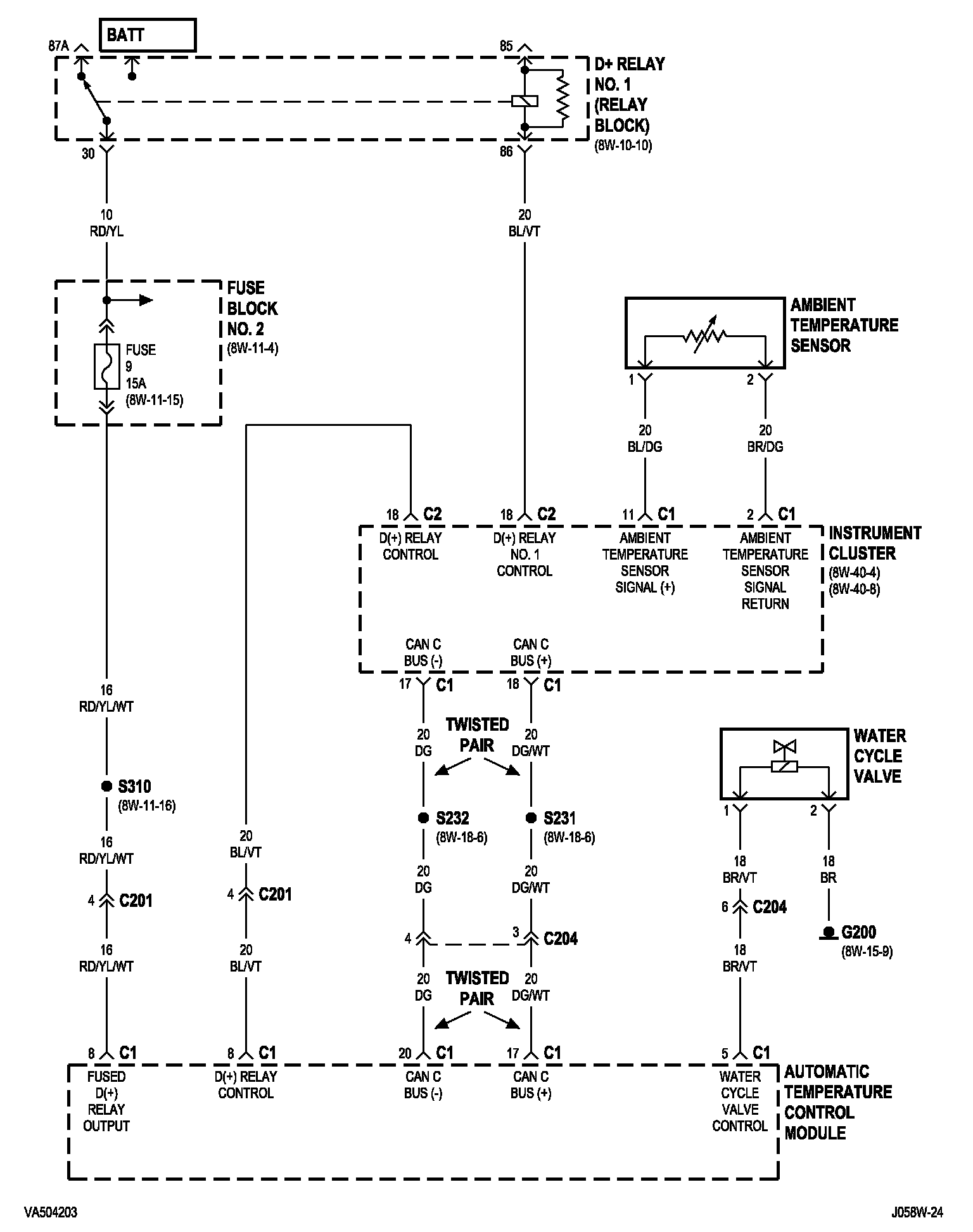

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.8w-42-2:

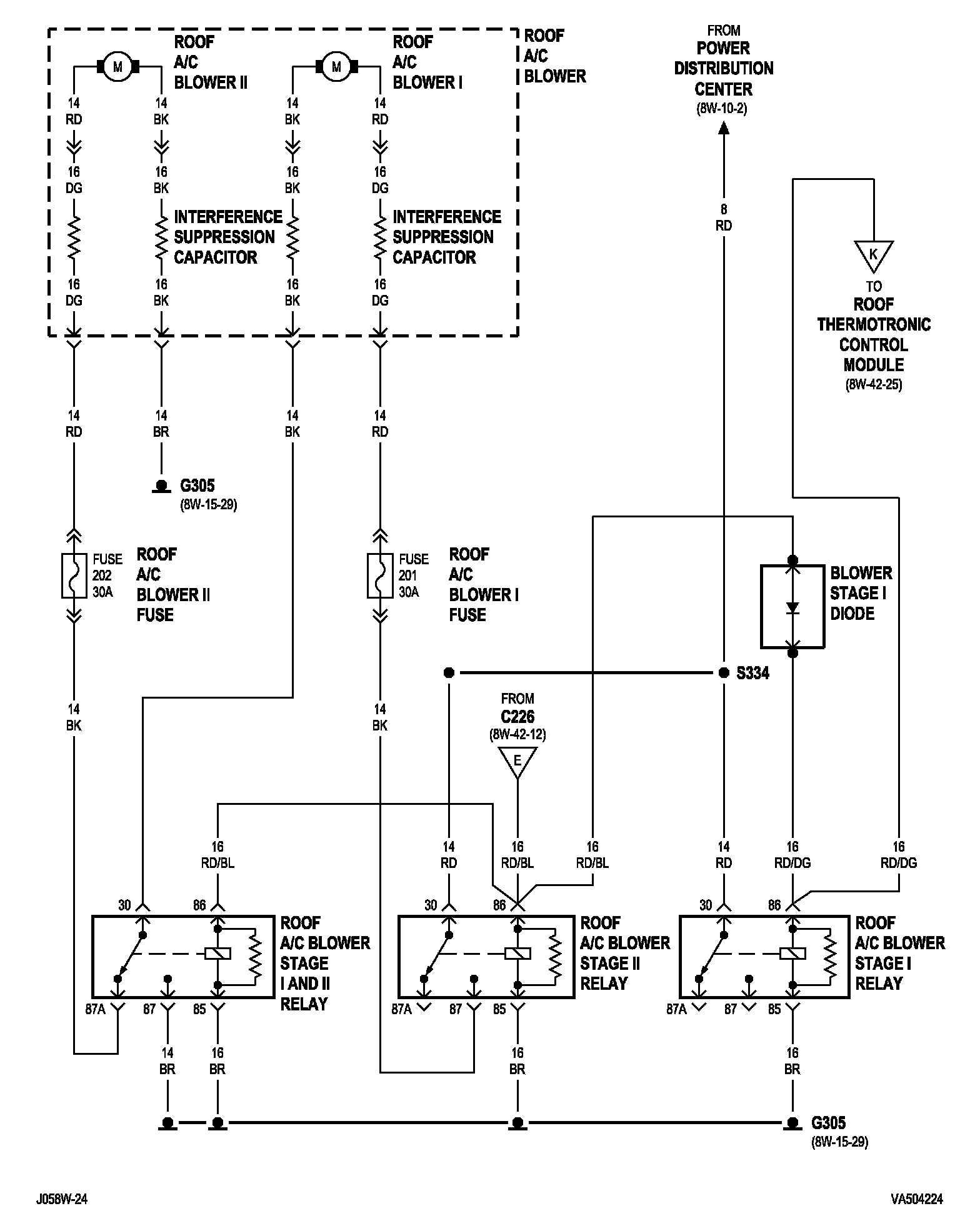

8w-42-3:

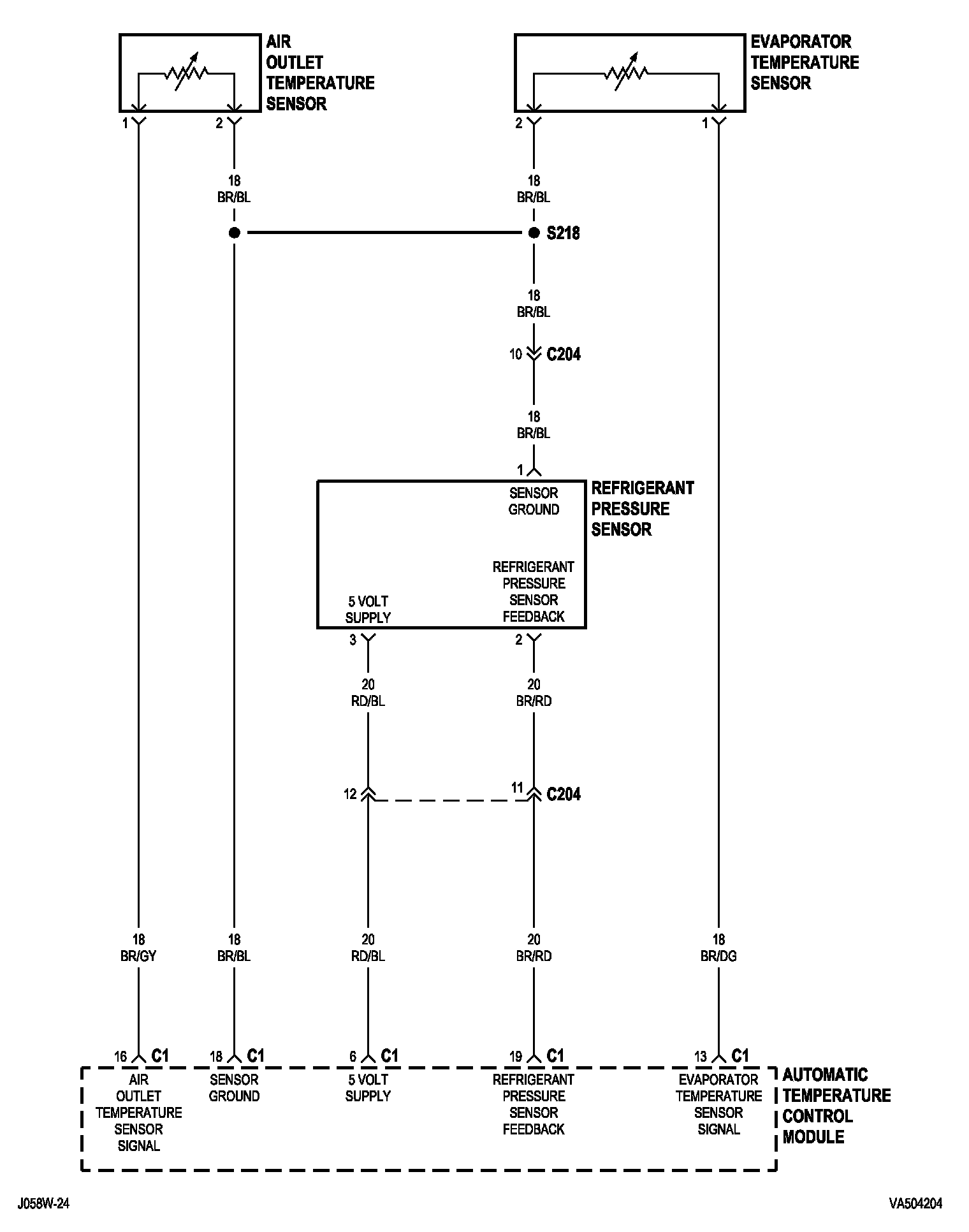

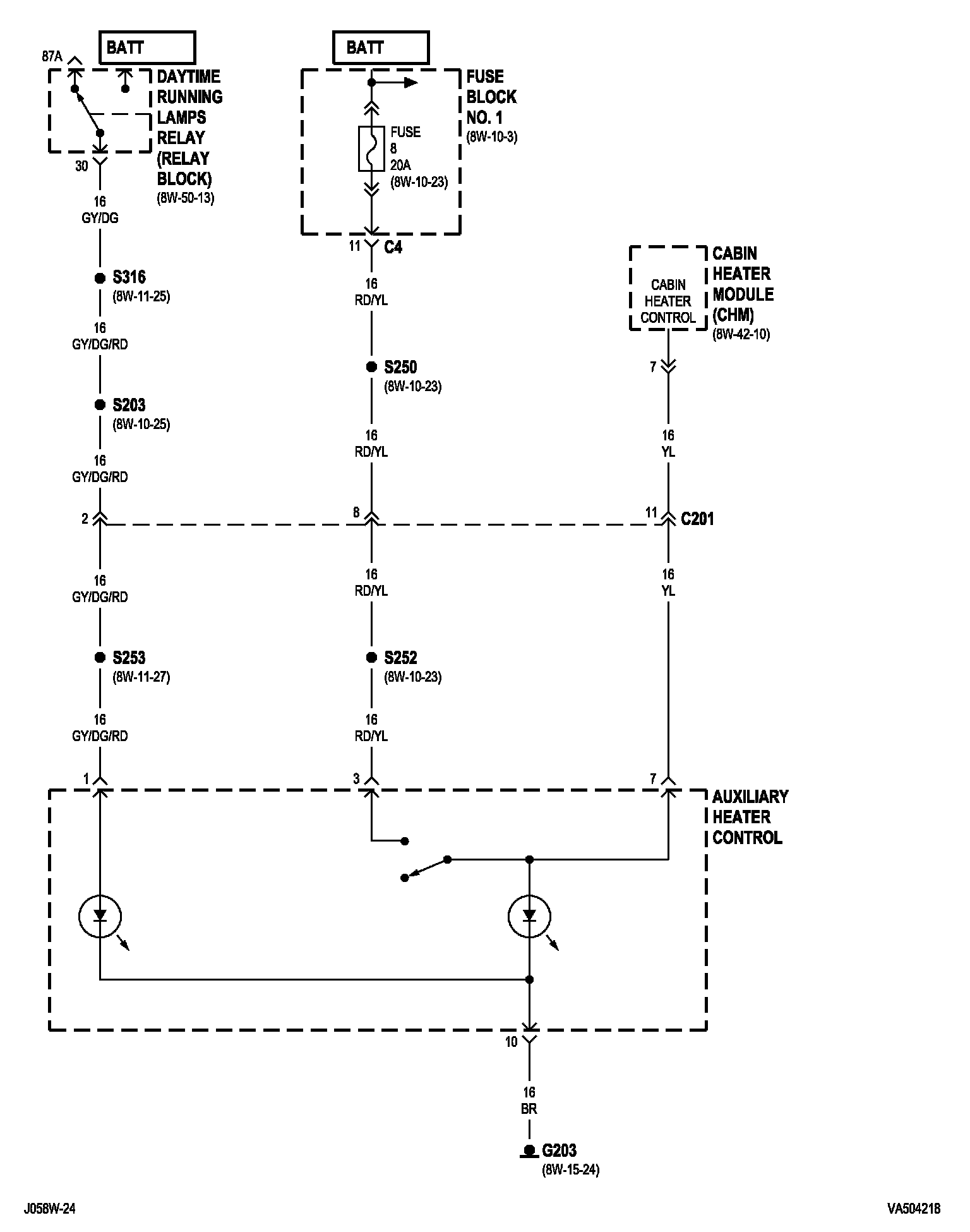

8w-42-4:

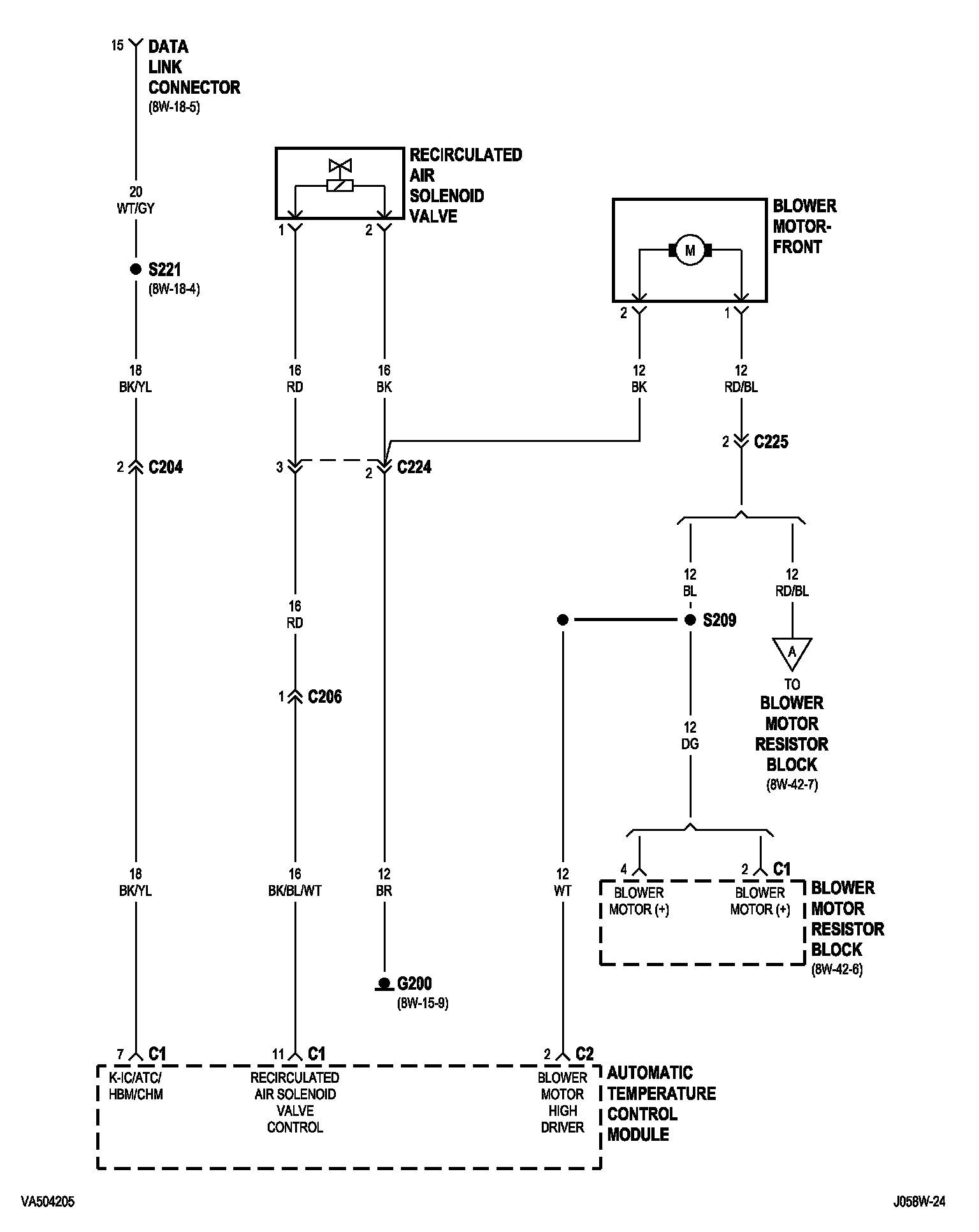

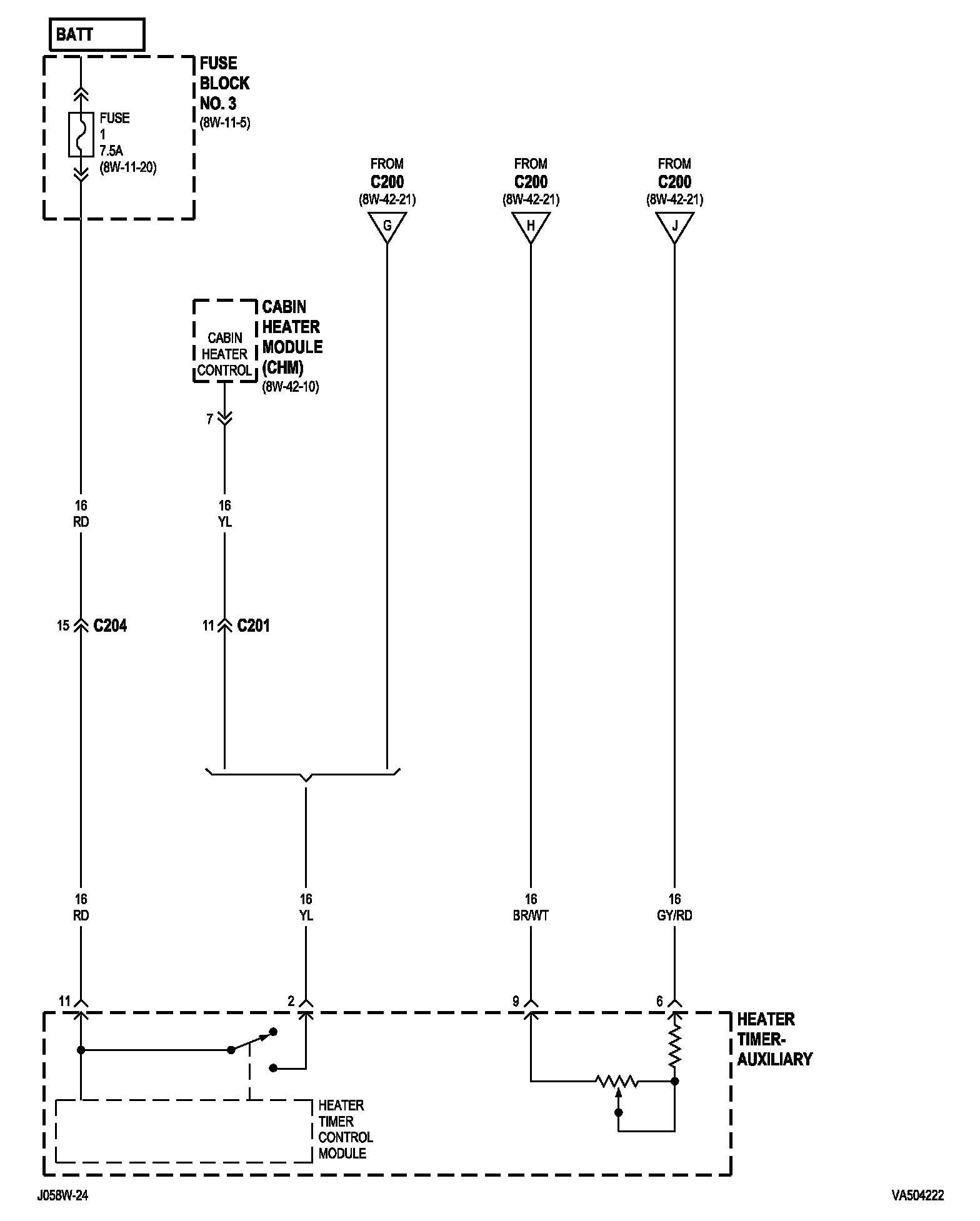

8w-42-5:

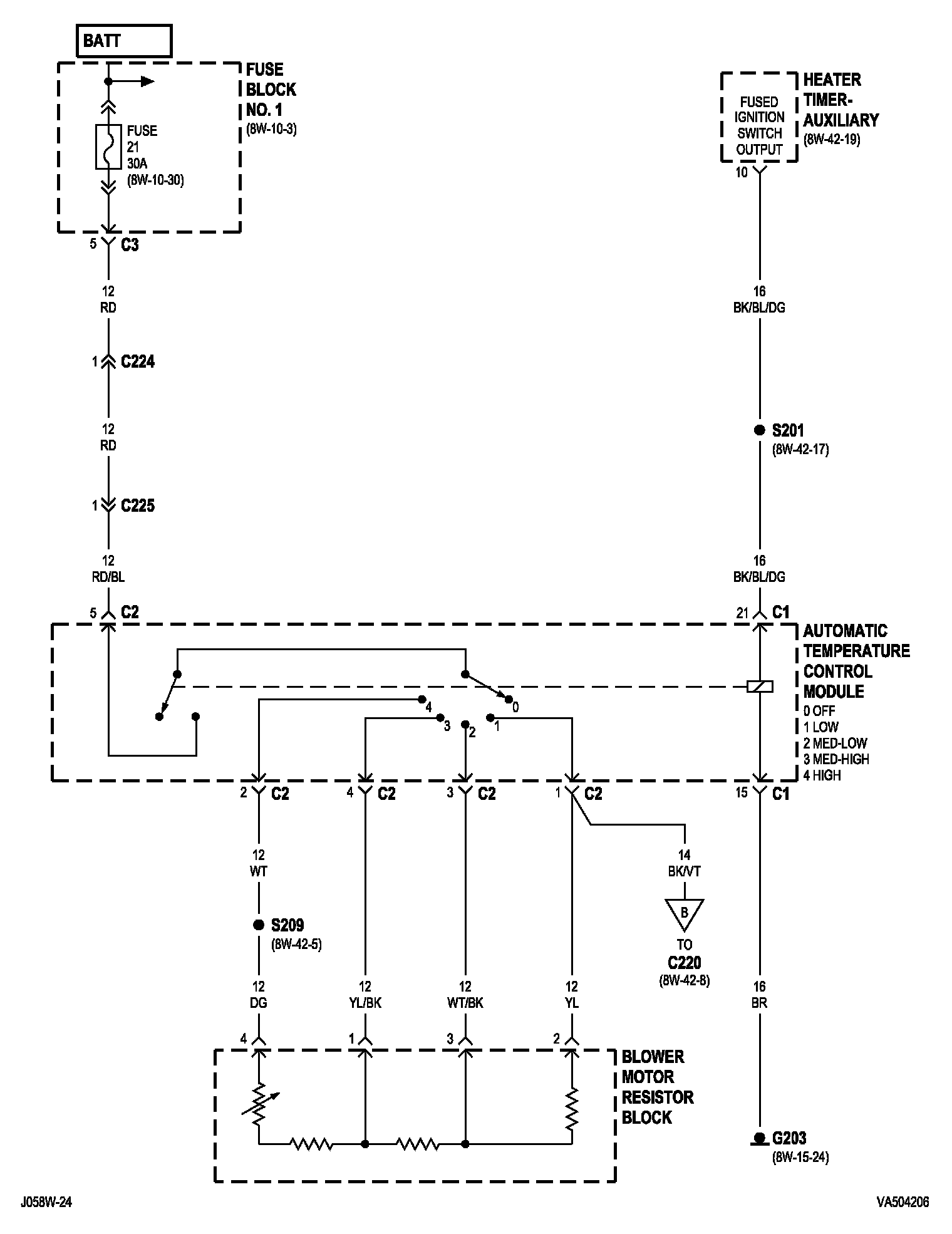

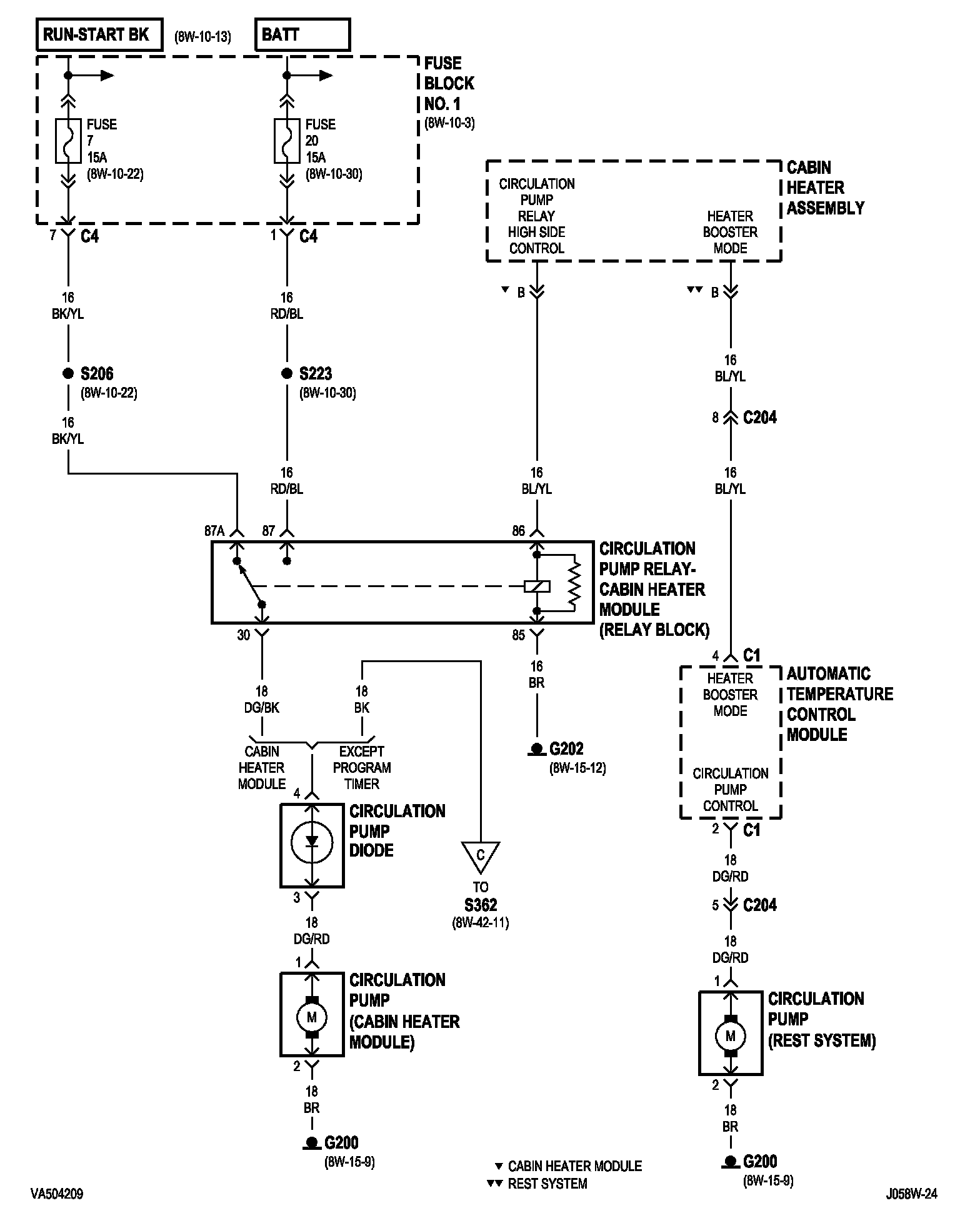

8w-42-6:
8w-42-7:

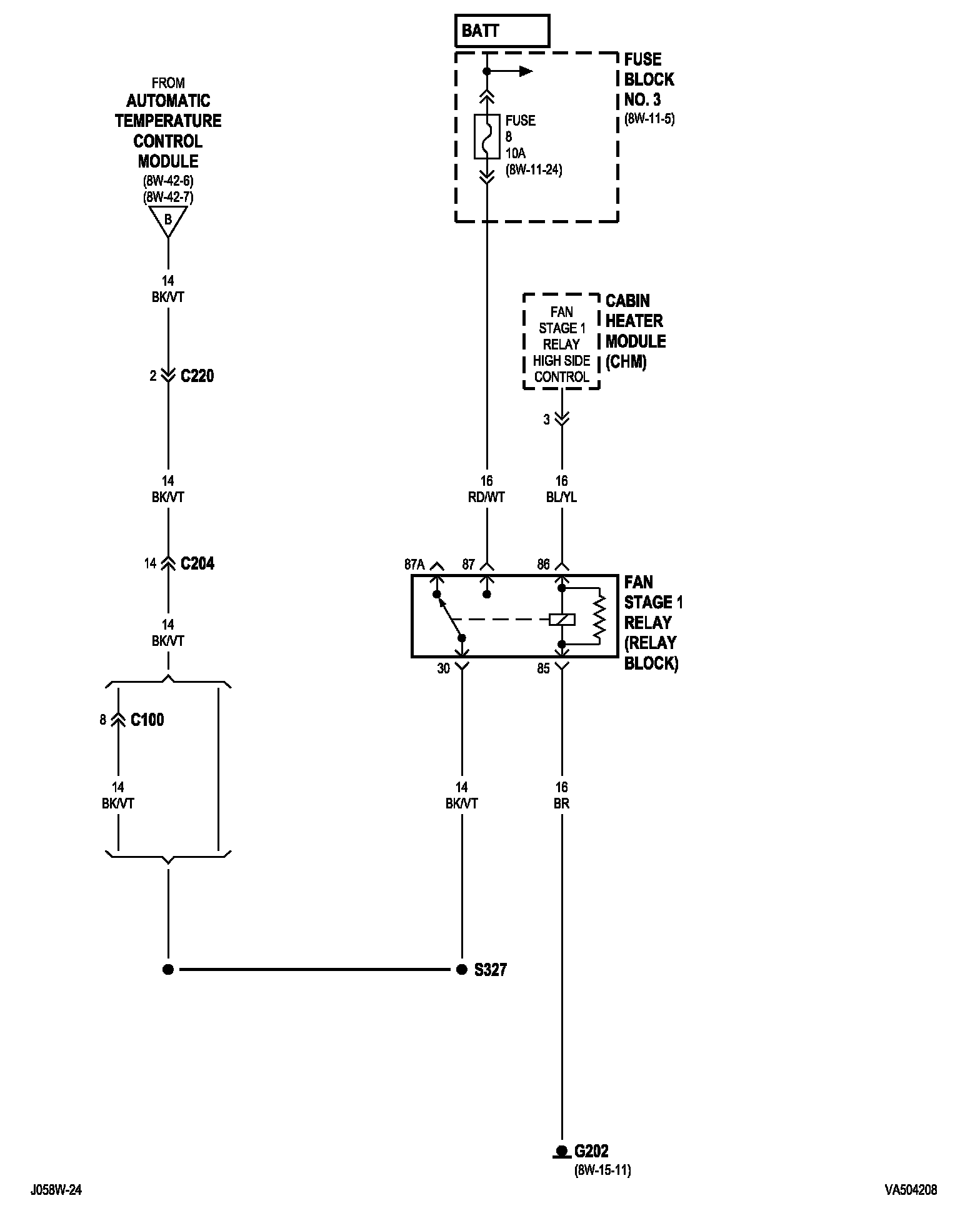

8w-42-8:
8w-42-9:

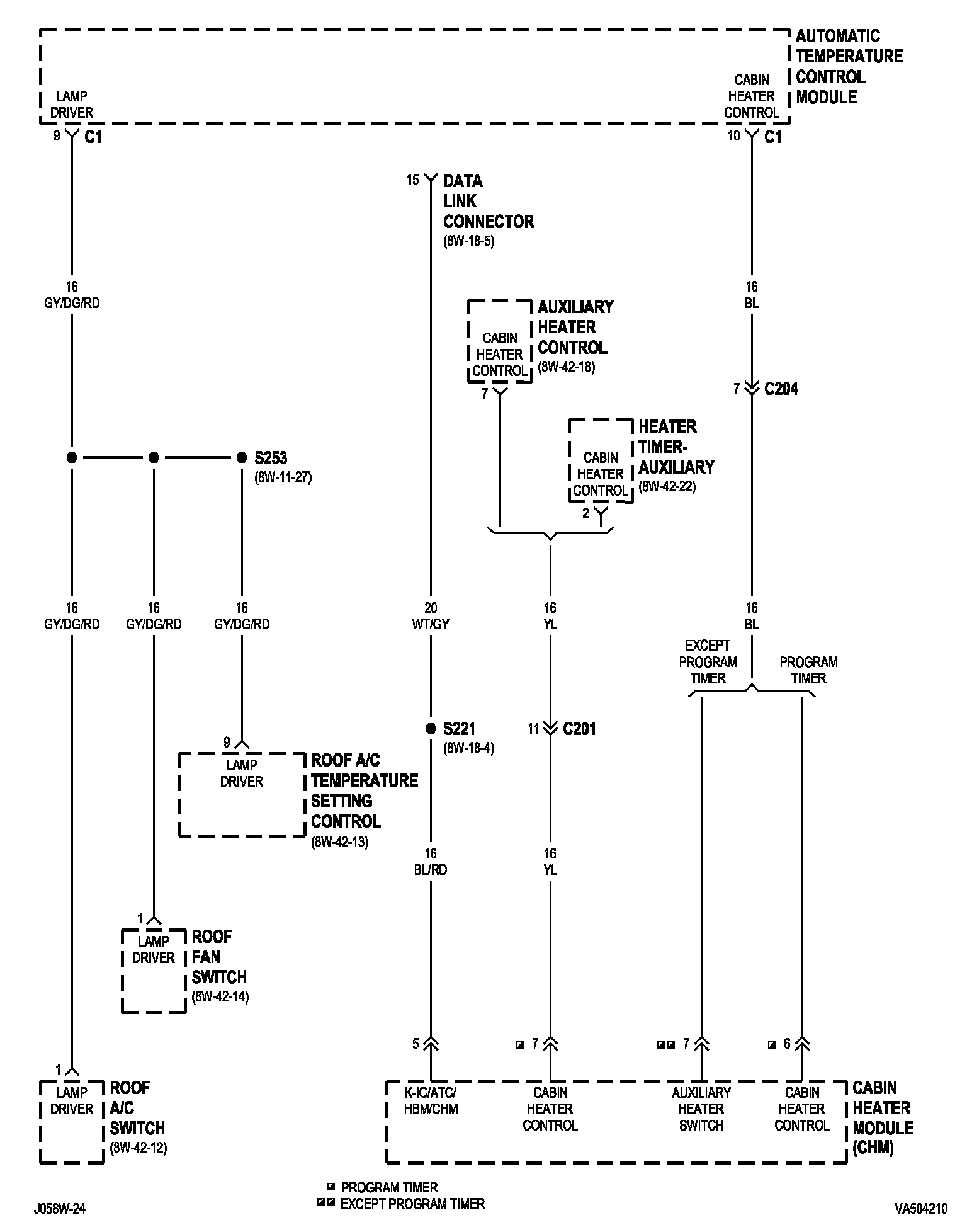

8w-42-10:

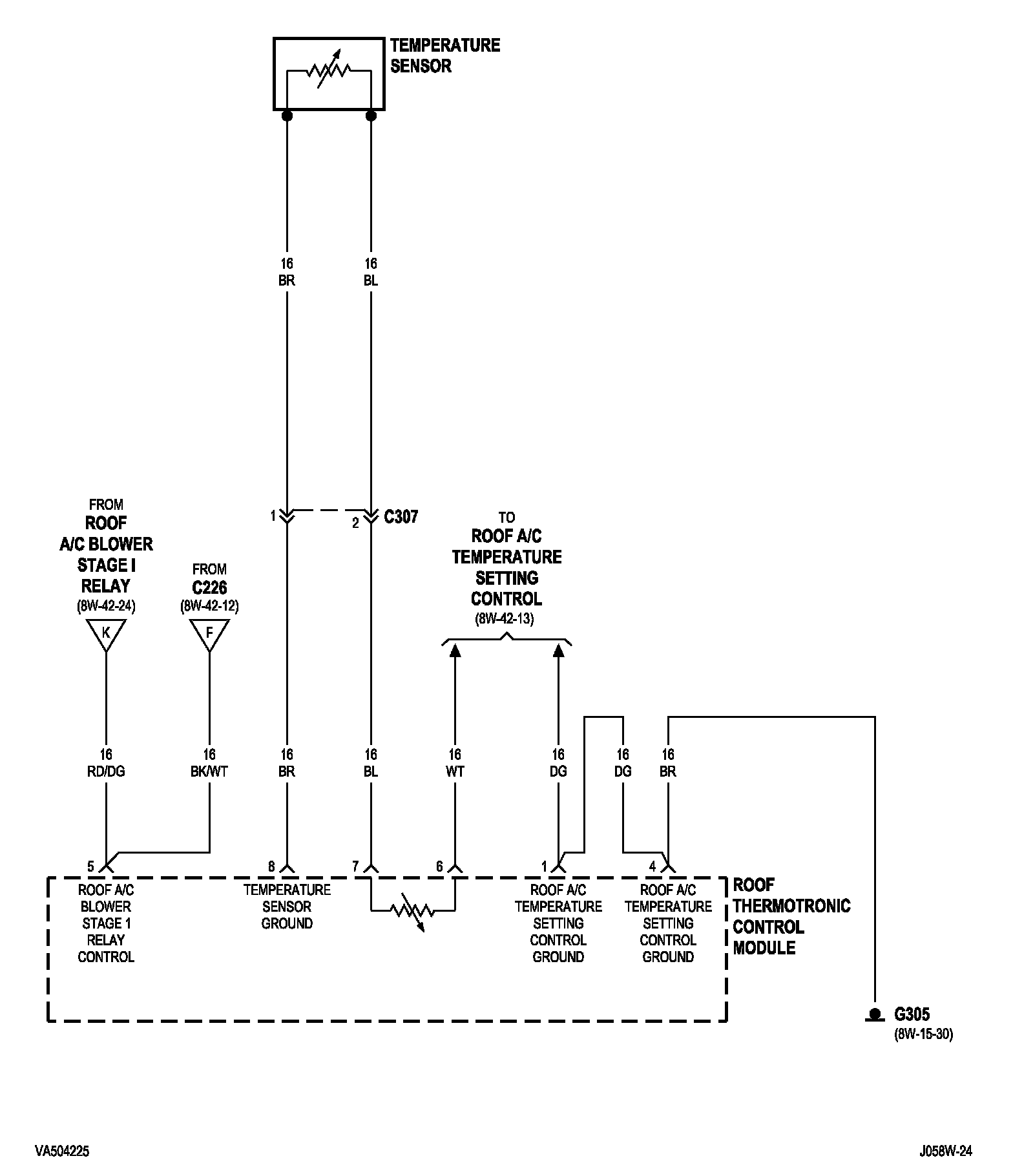

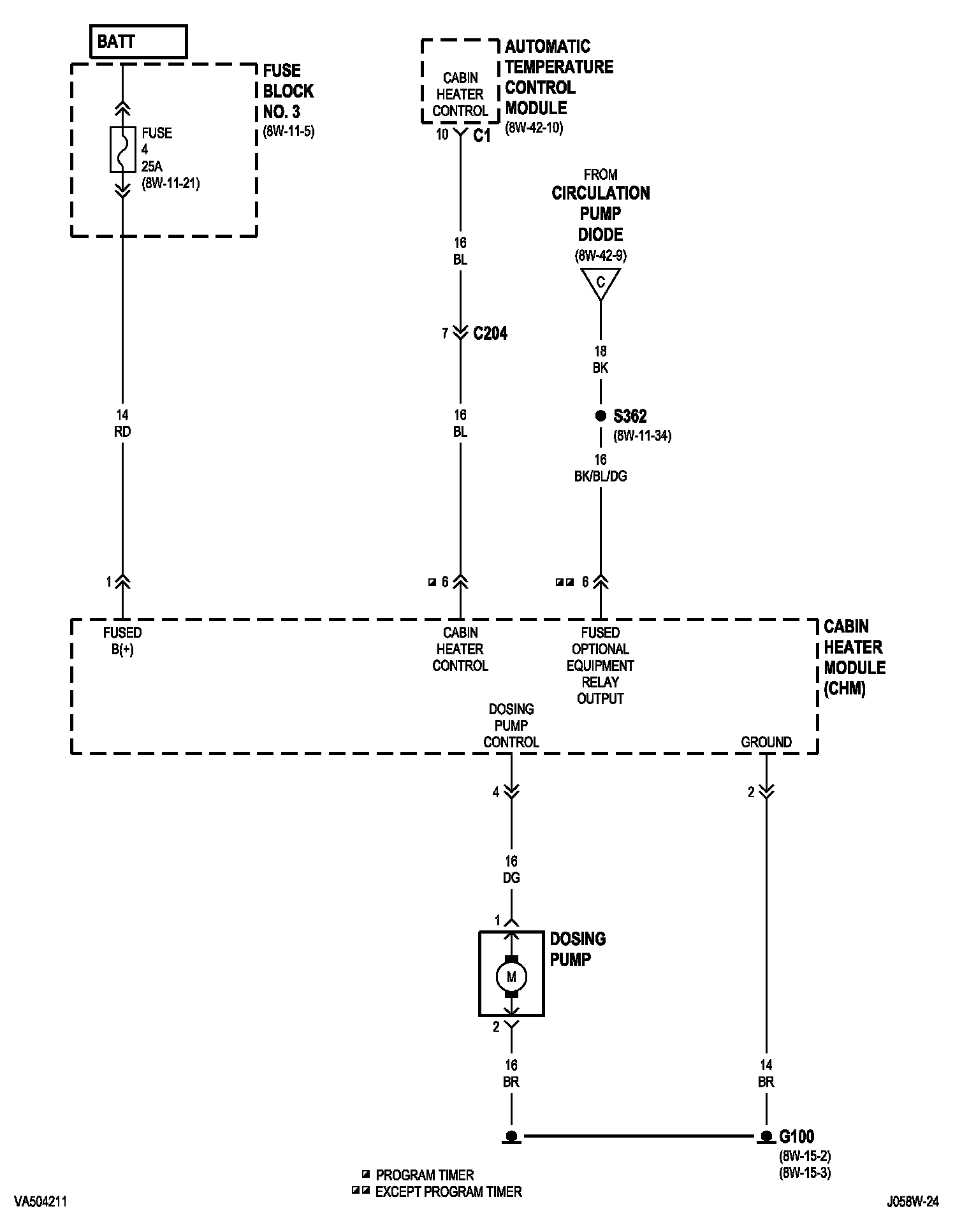

8w-42-11:

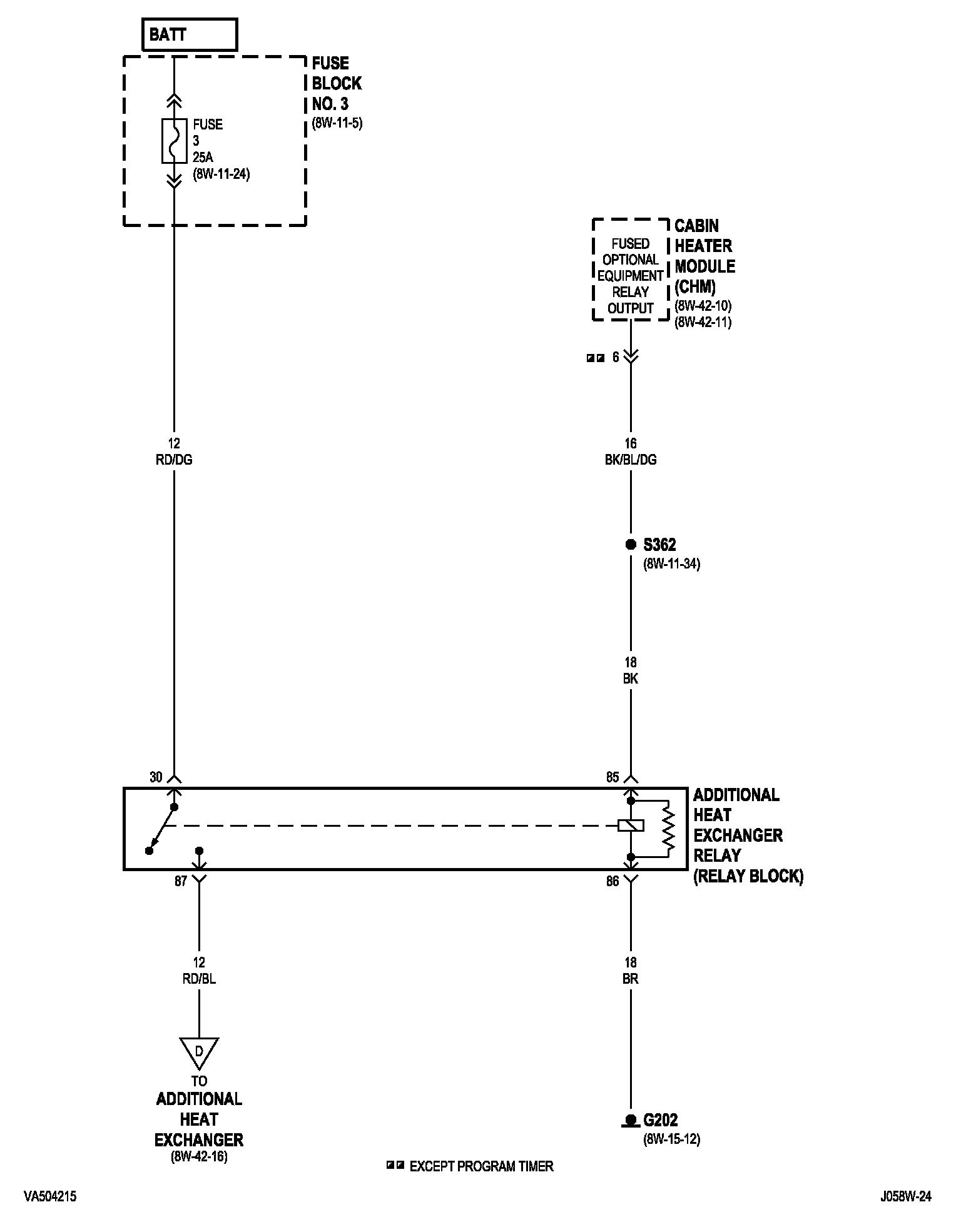

8w-42-12:
8w-42-13:
8w-42-14:
8w-42-15:

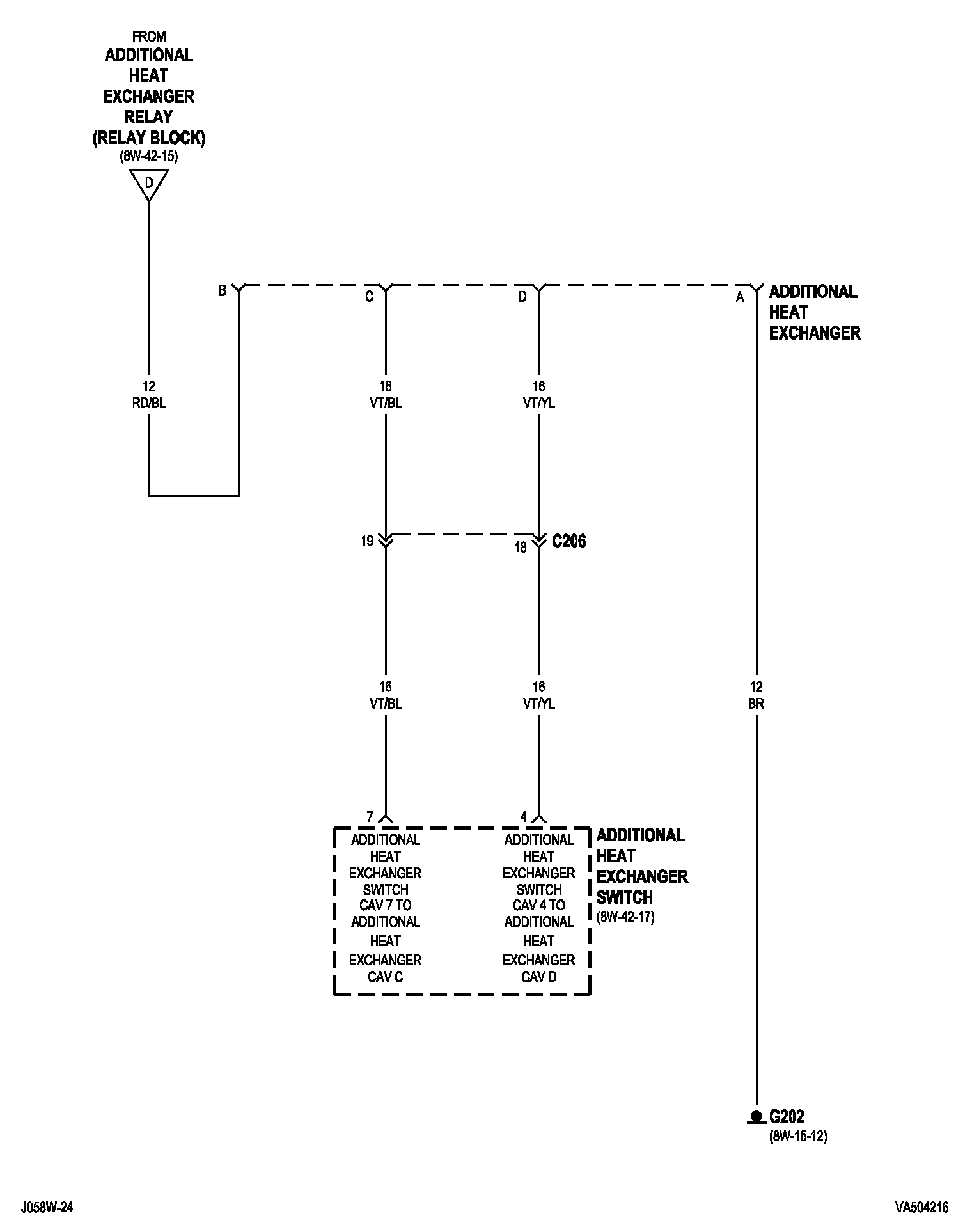

8w-42-16:

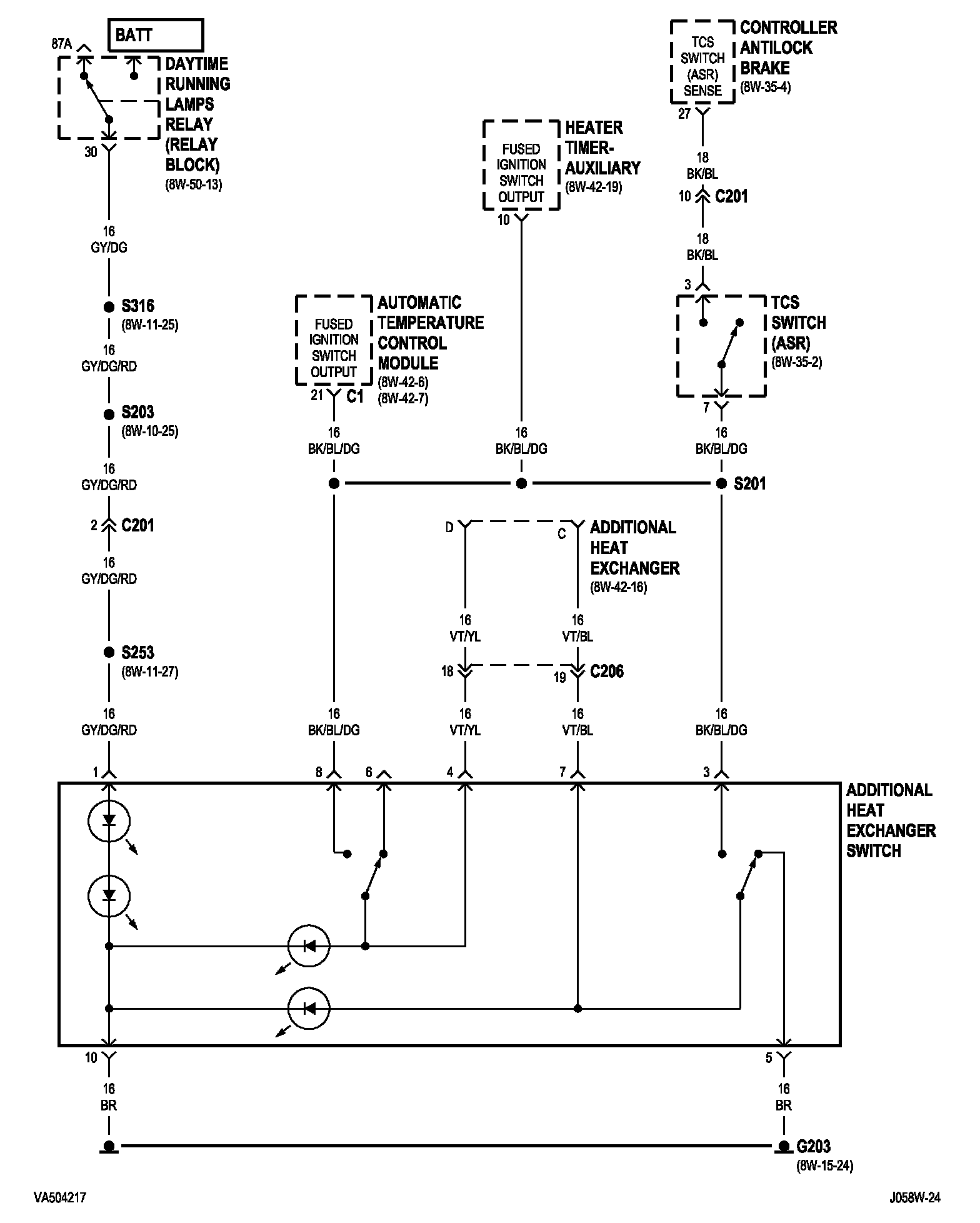

8w-42-17:
8w-42-18:

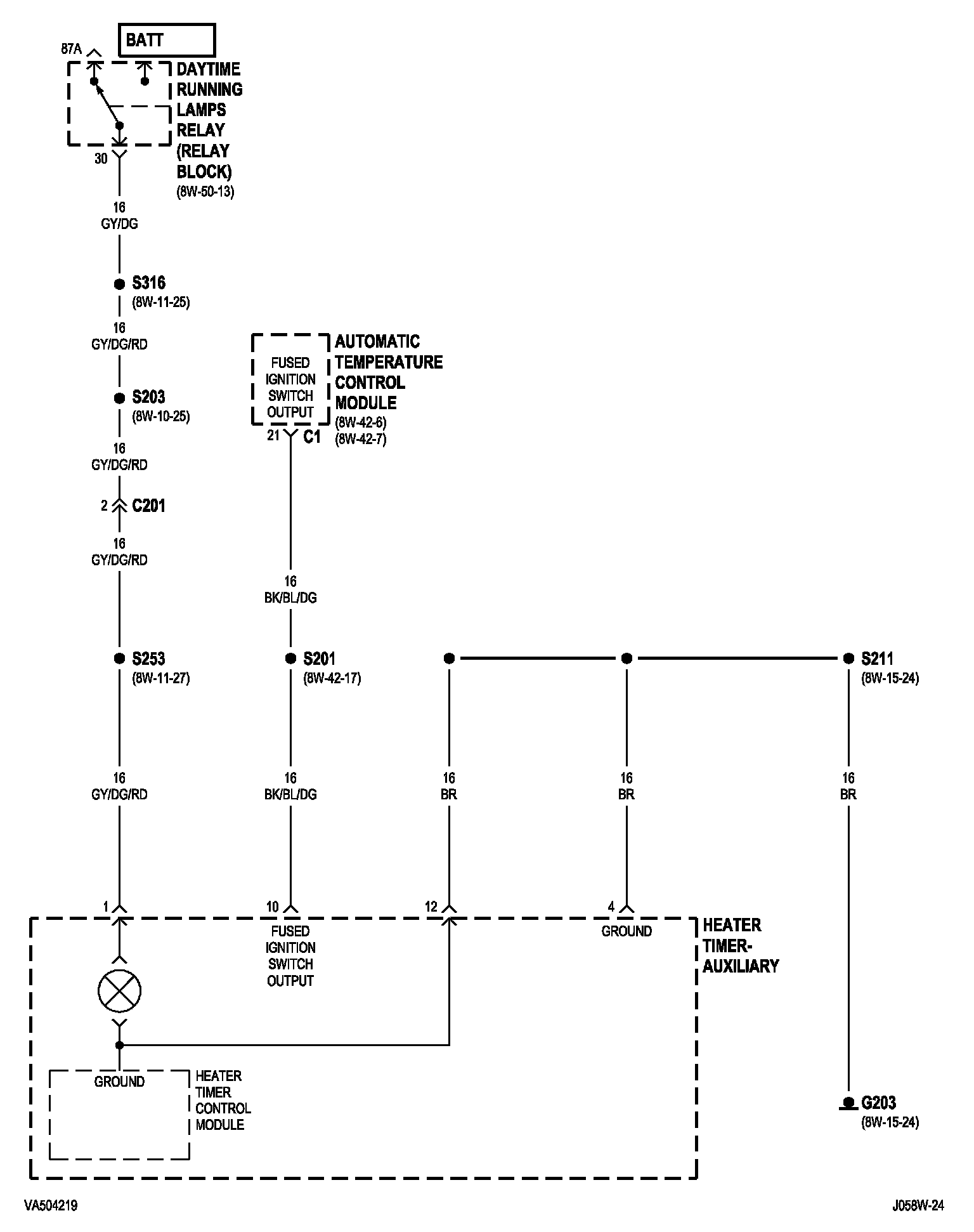

8w-42-19:

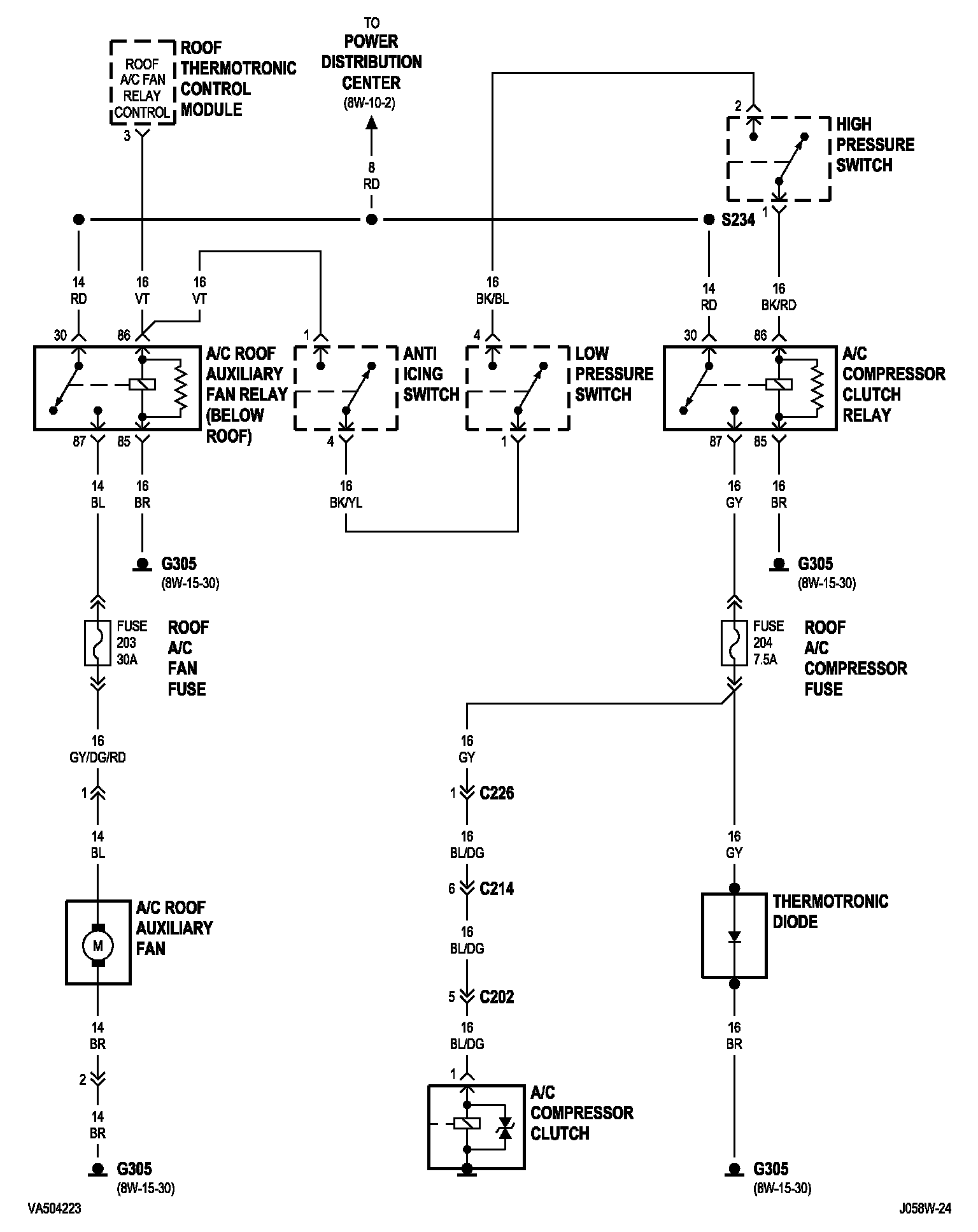

8w-42-20:

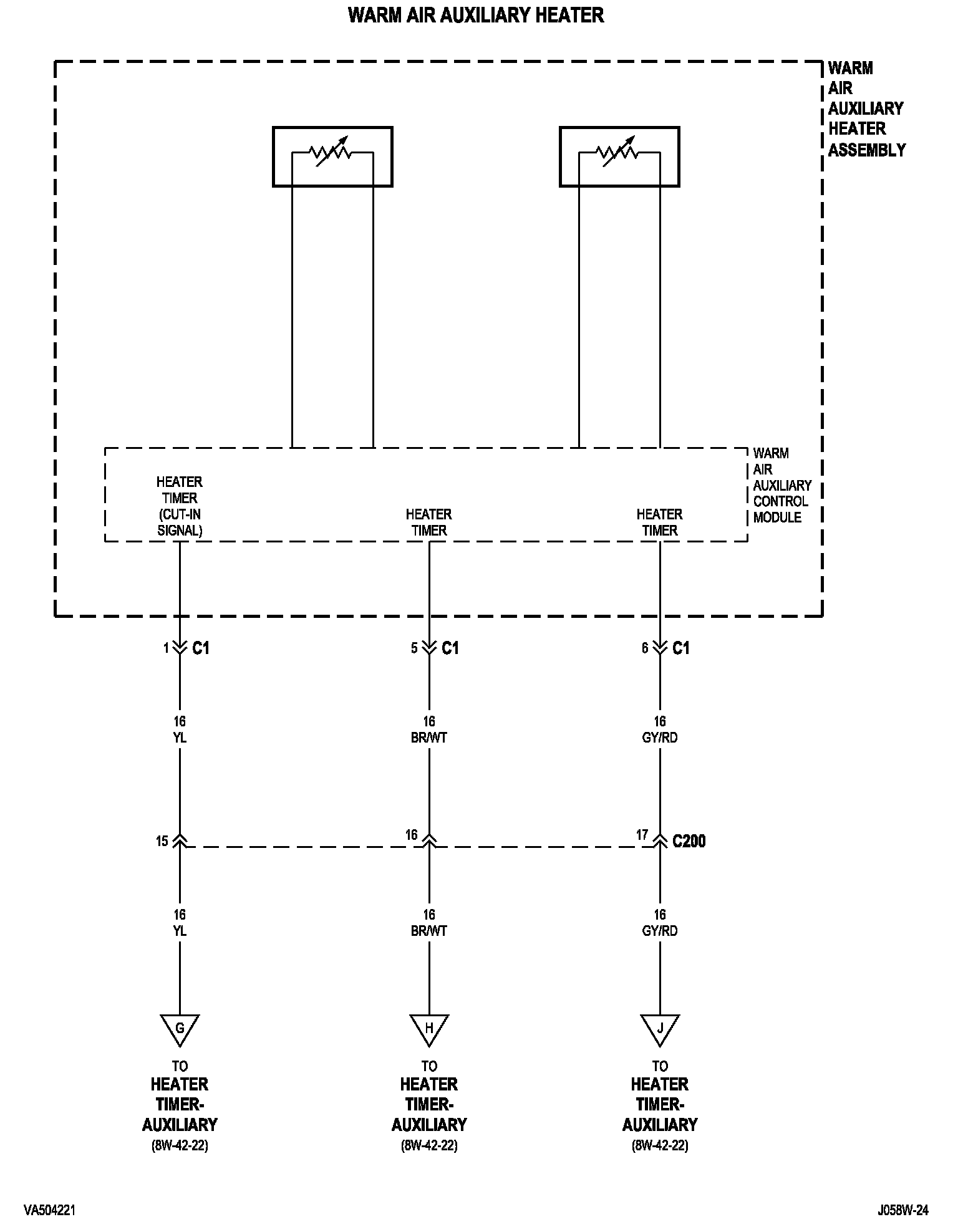

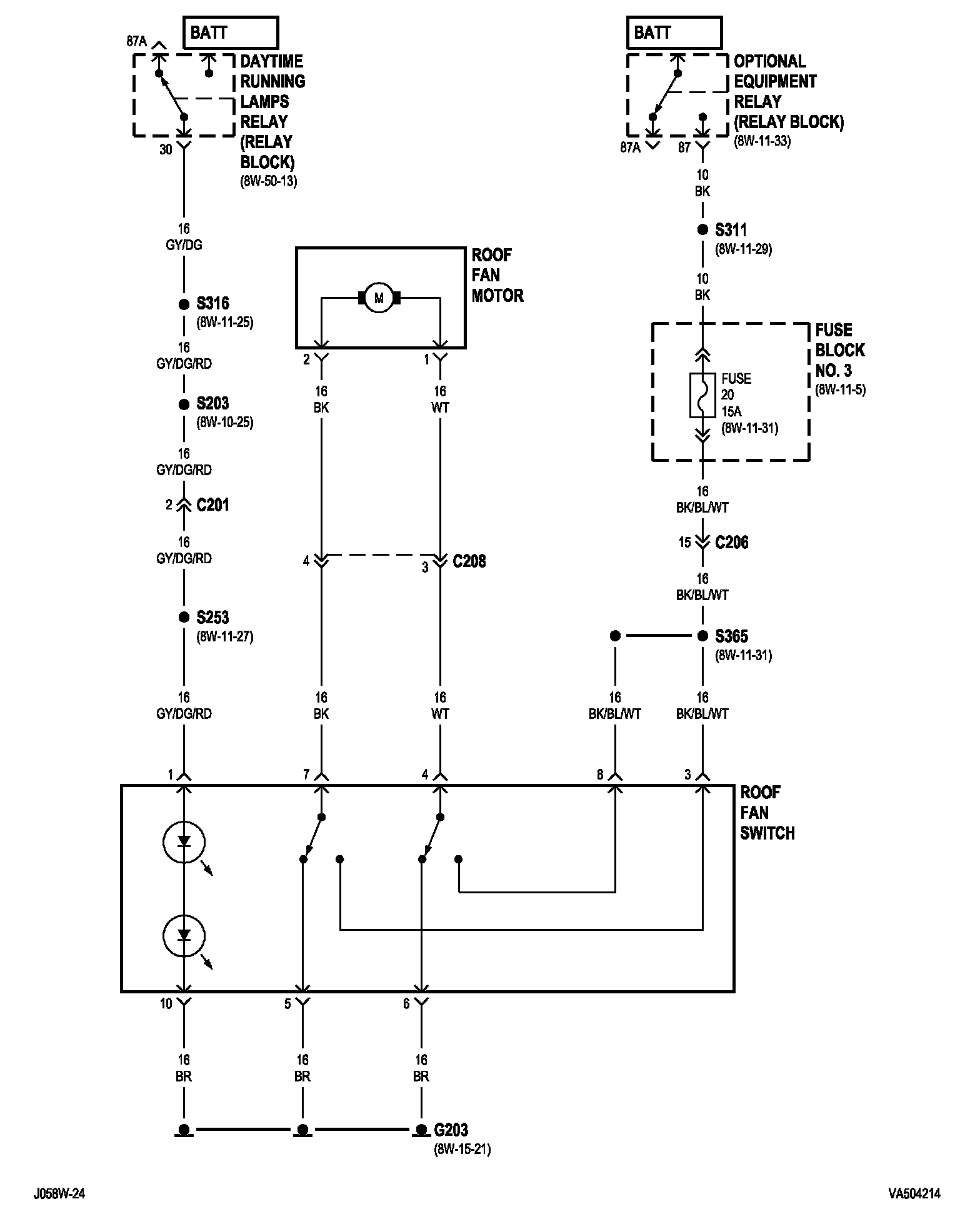

8w-42-21:

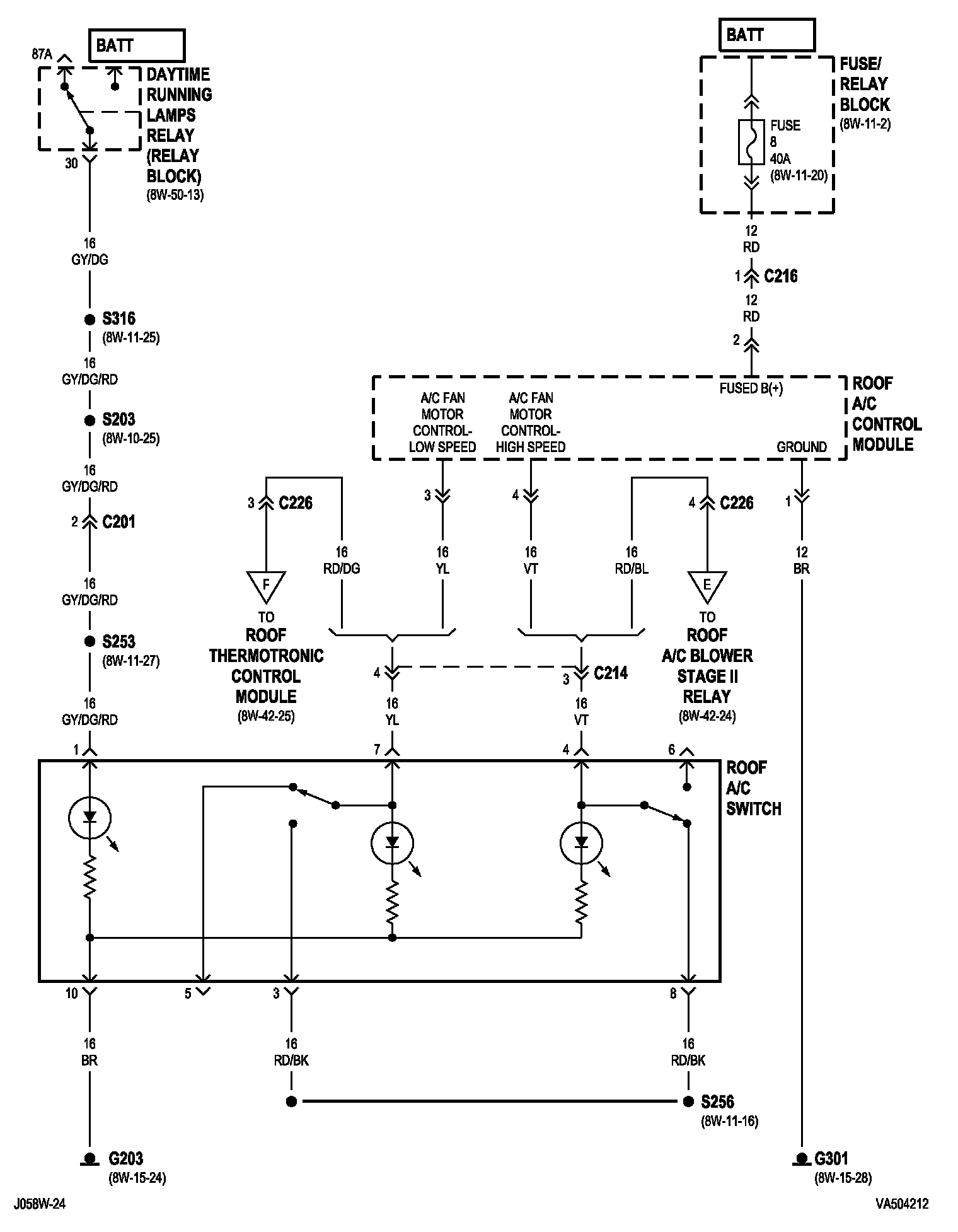

8w-42-22:

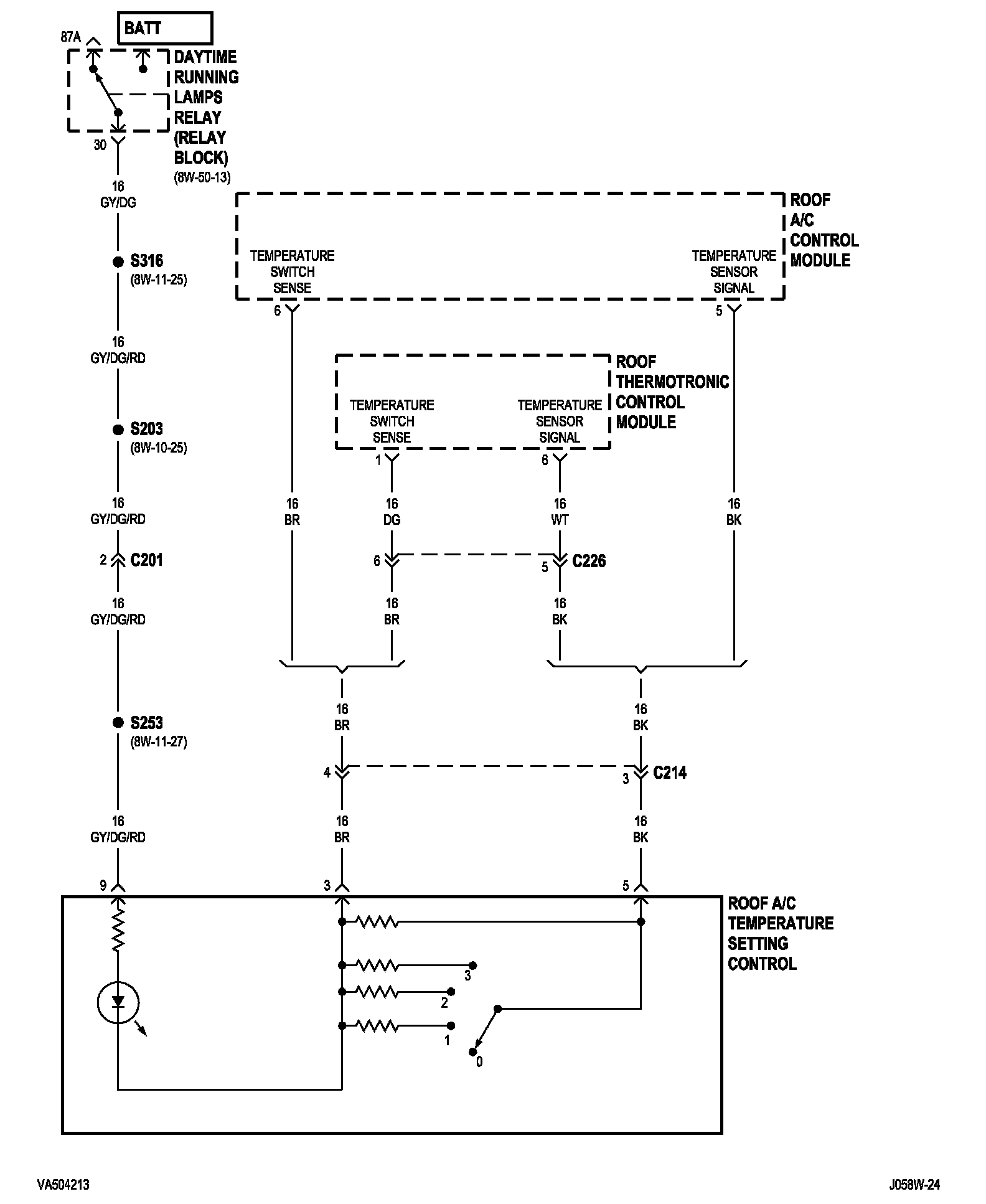

8w-42-23:
8w-42-24:
8w-42-25:
Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number. Diagrams By Number
