Fuse and Relay Box, Location and Assignment

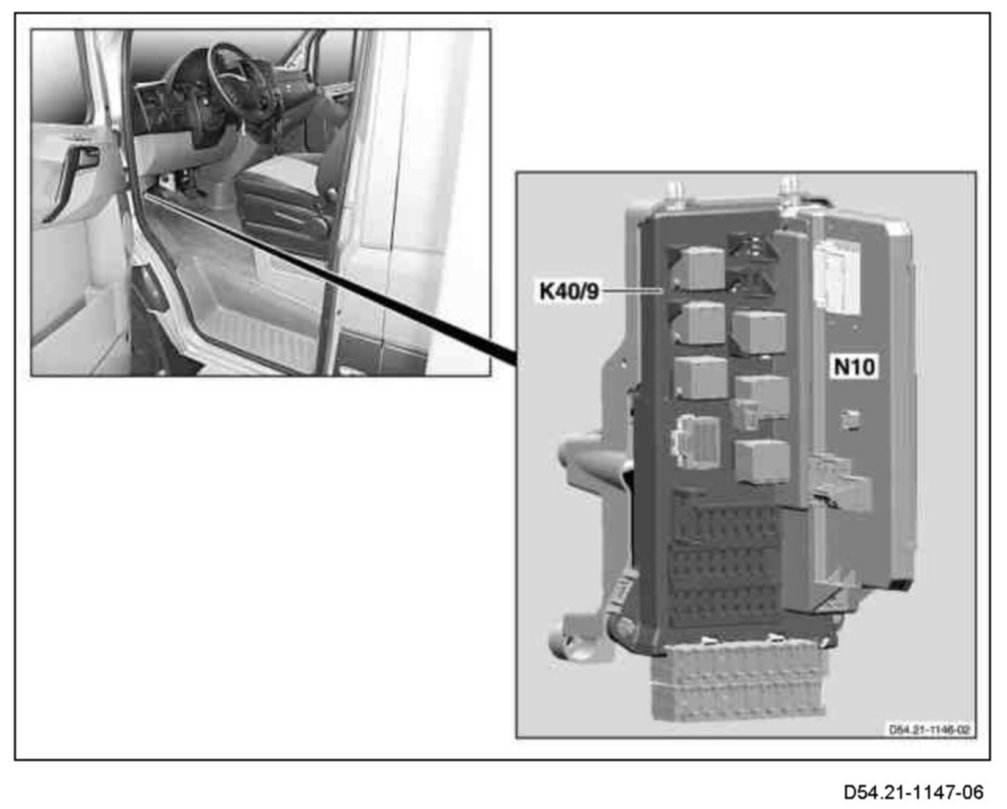

GF54.15-D-0900AA Fuse and relay box, location/assignmentK40/9
Fuse/relay box (SRB)
N10
SAM control unit
LocationThe SAM control unit is integrated into the fuse/relay box (SRB), which is positioned vertically in the left-hand footwell between the firewall and the A-pillar below the dashboard.
