Ignition Switch: Diagrams

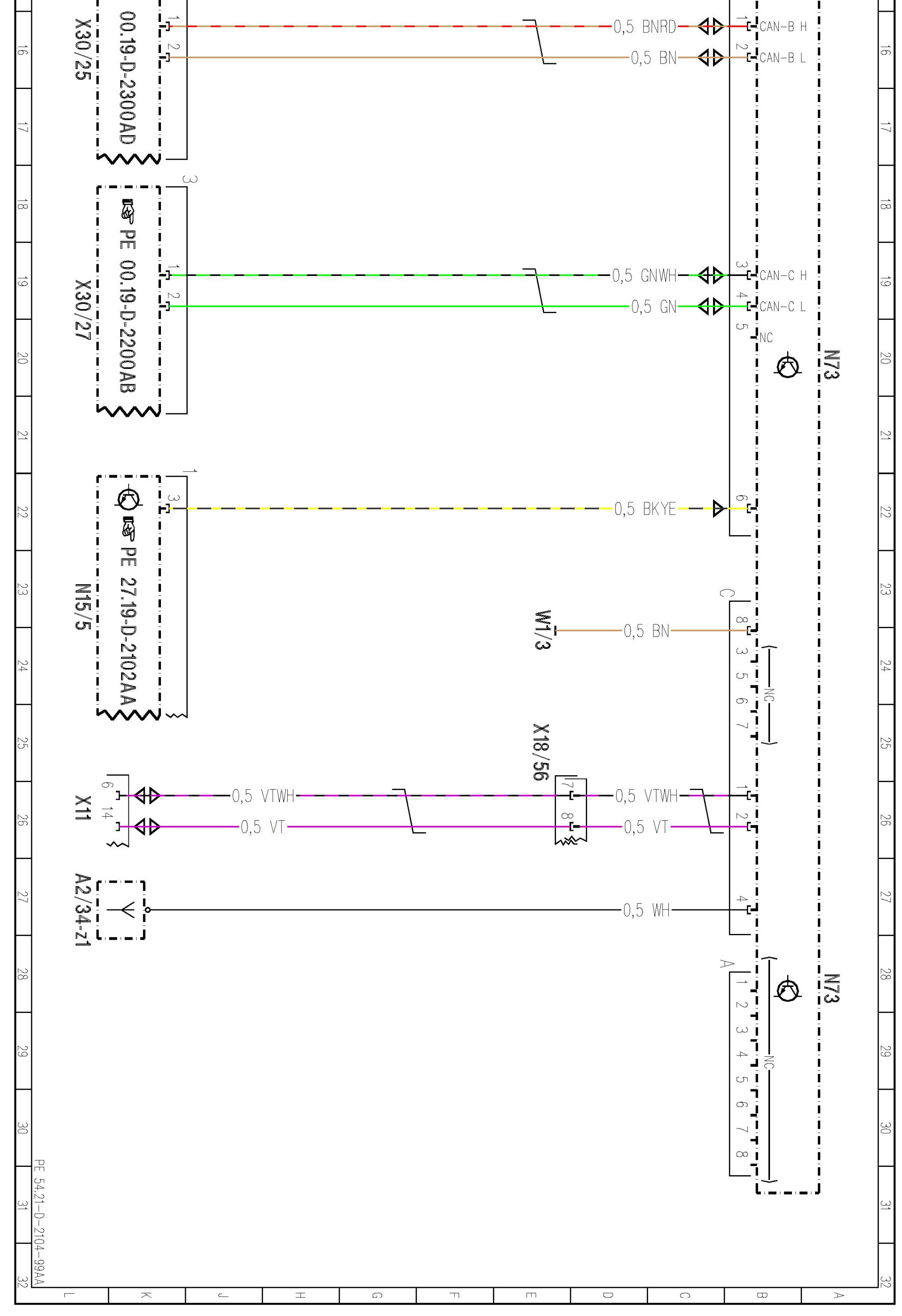

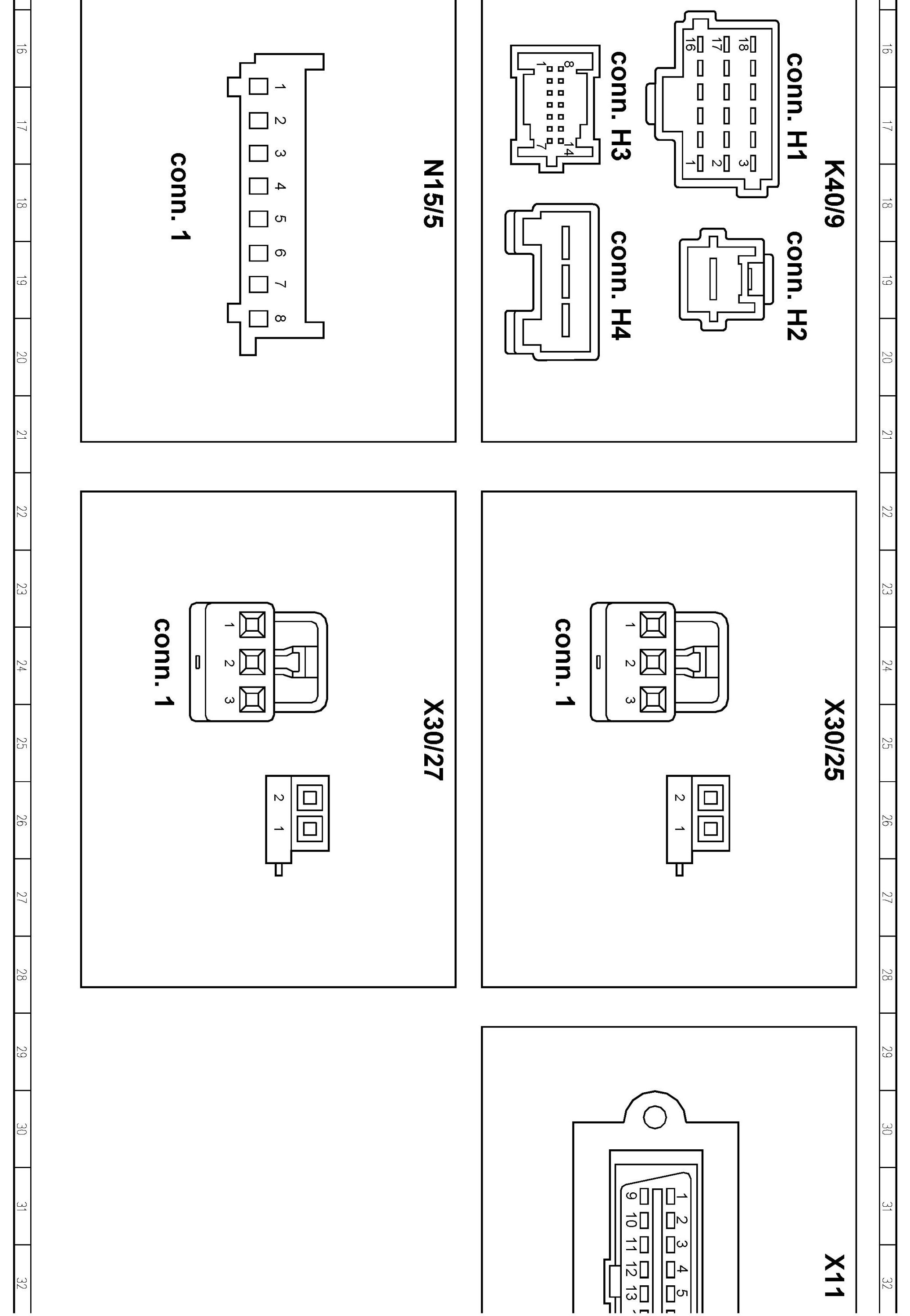

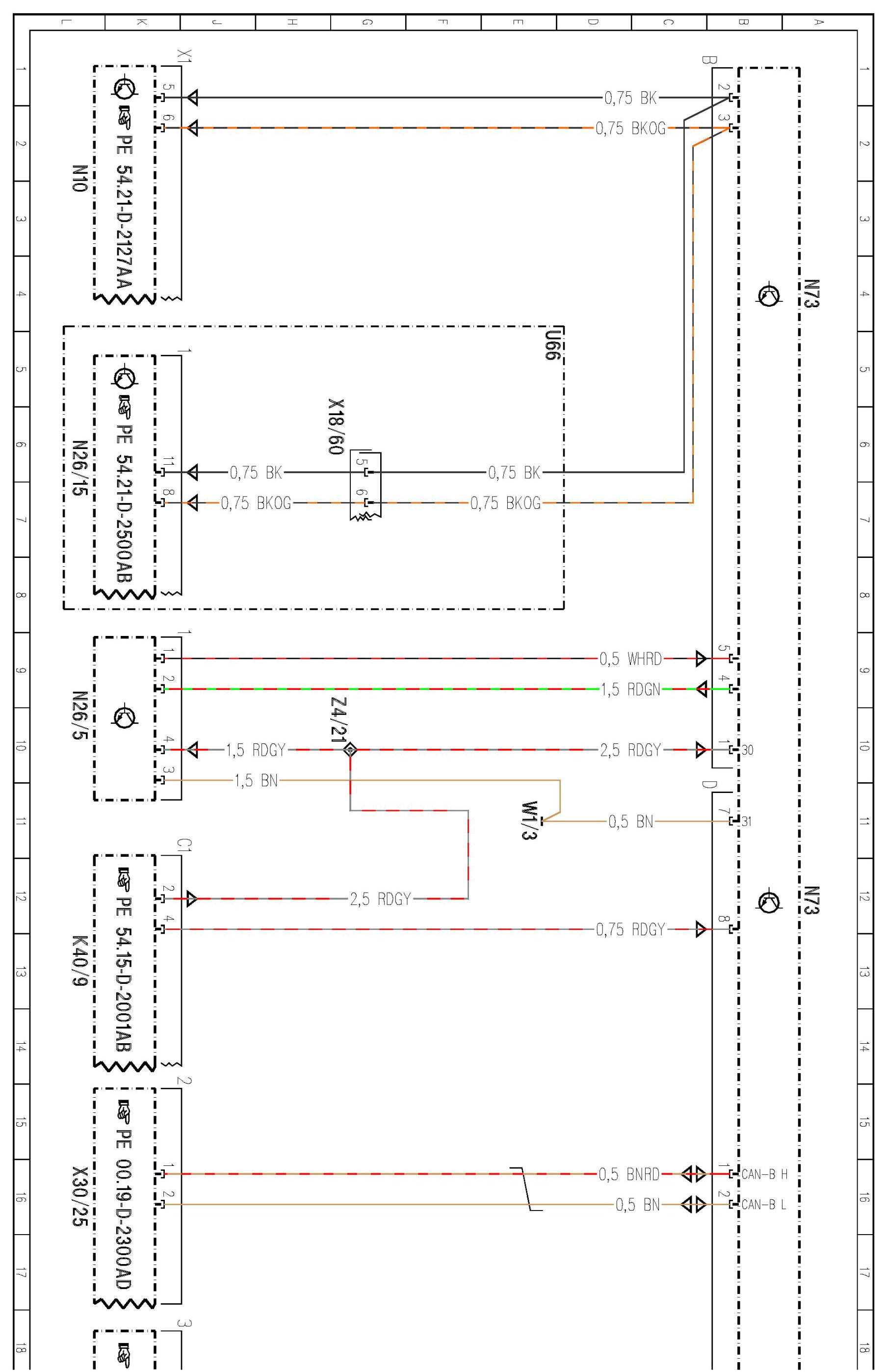

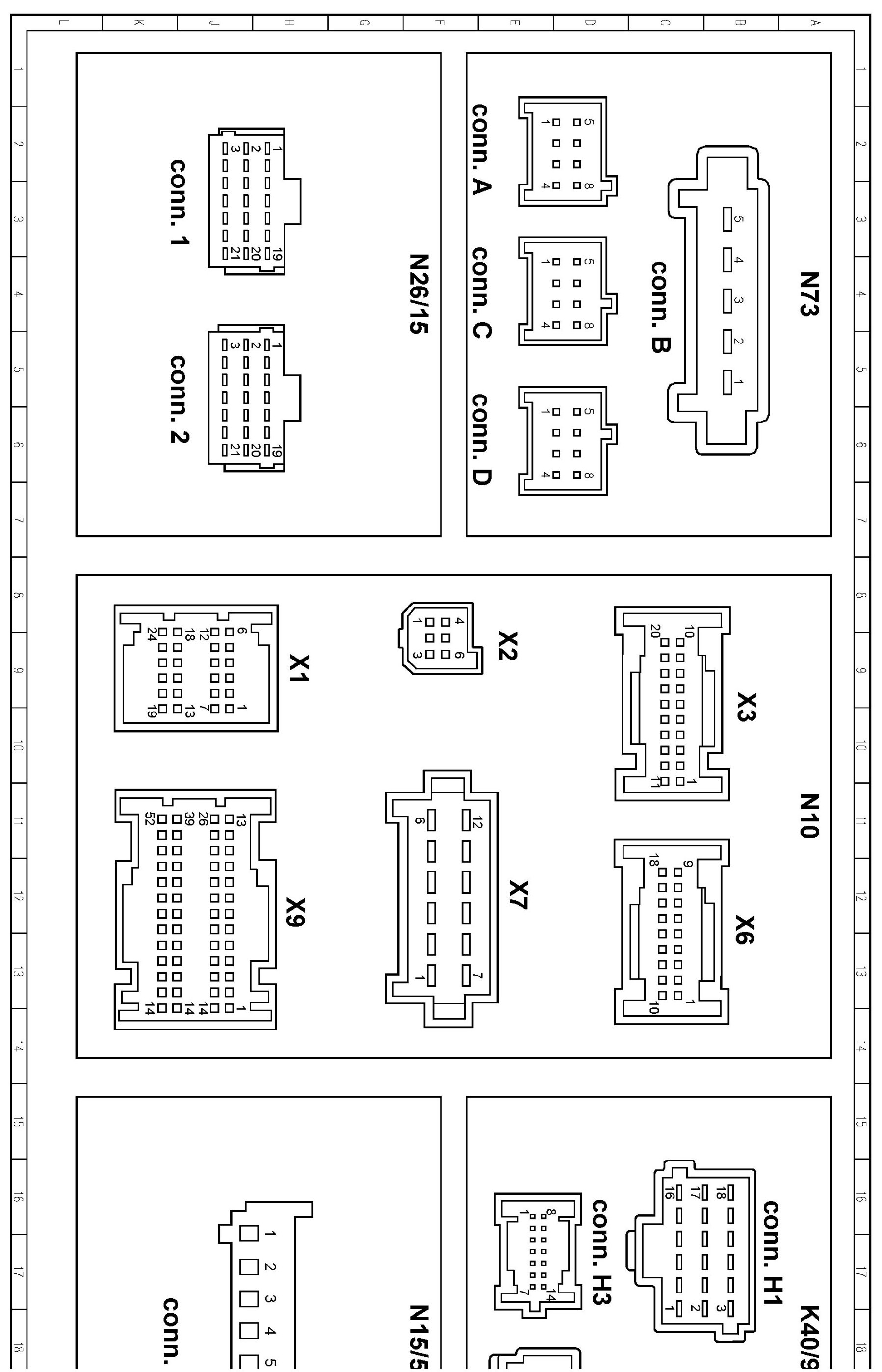

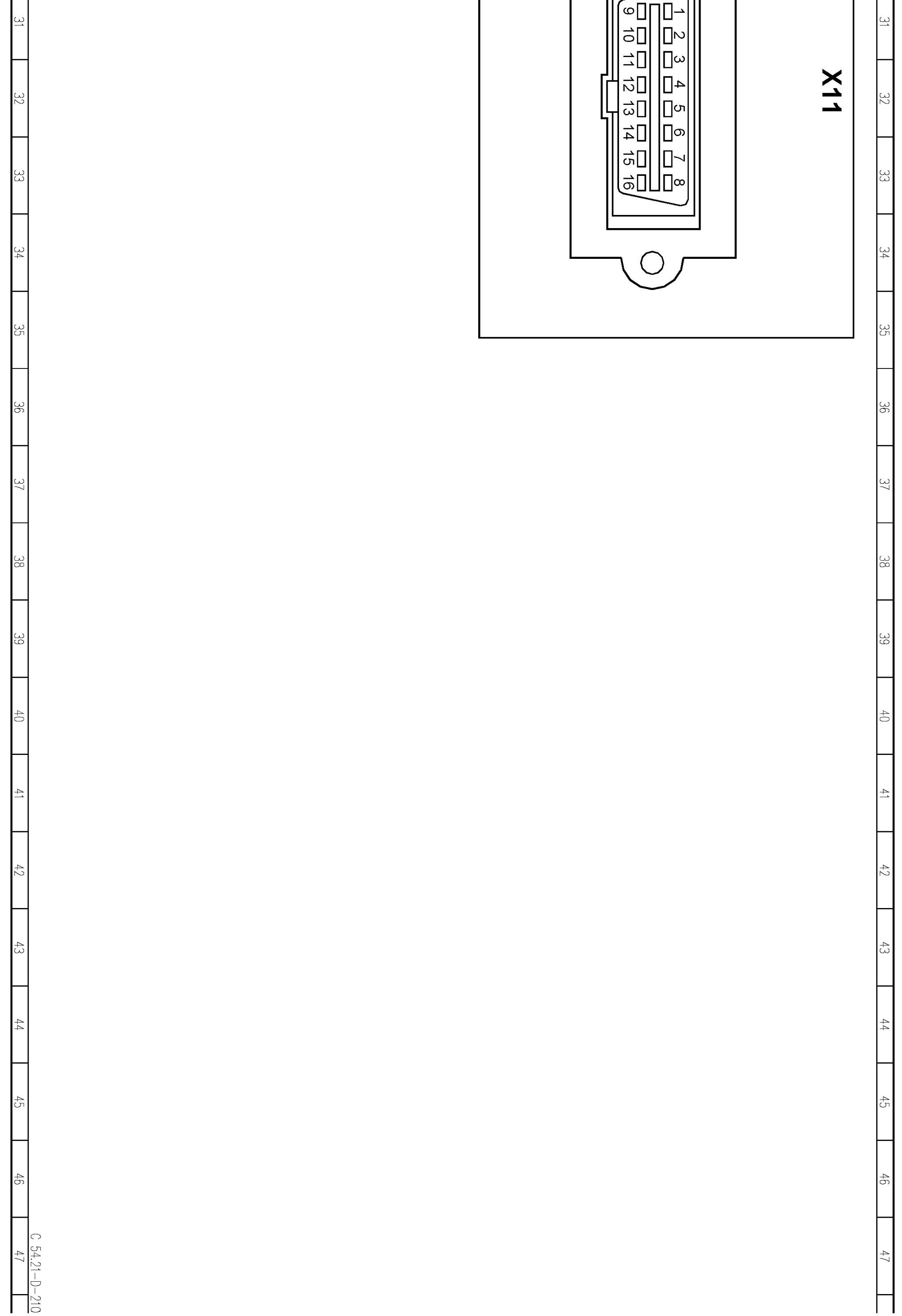

PE54.21-D-2104AA Electronic Ignition Switch (EIS) Control Unit 906 54 Electrical Systems - Equipment and Instruments
Model 906.1 /2 /6 /7
