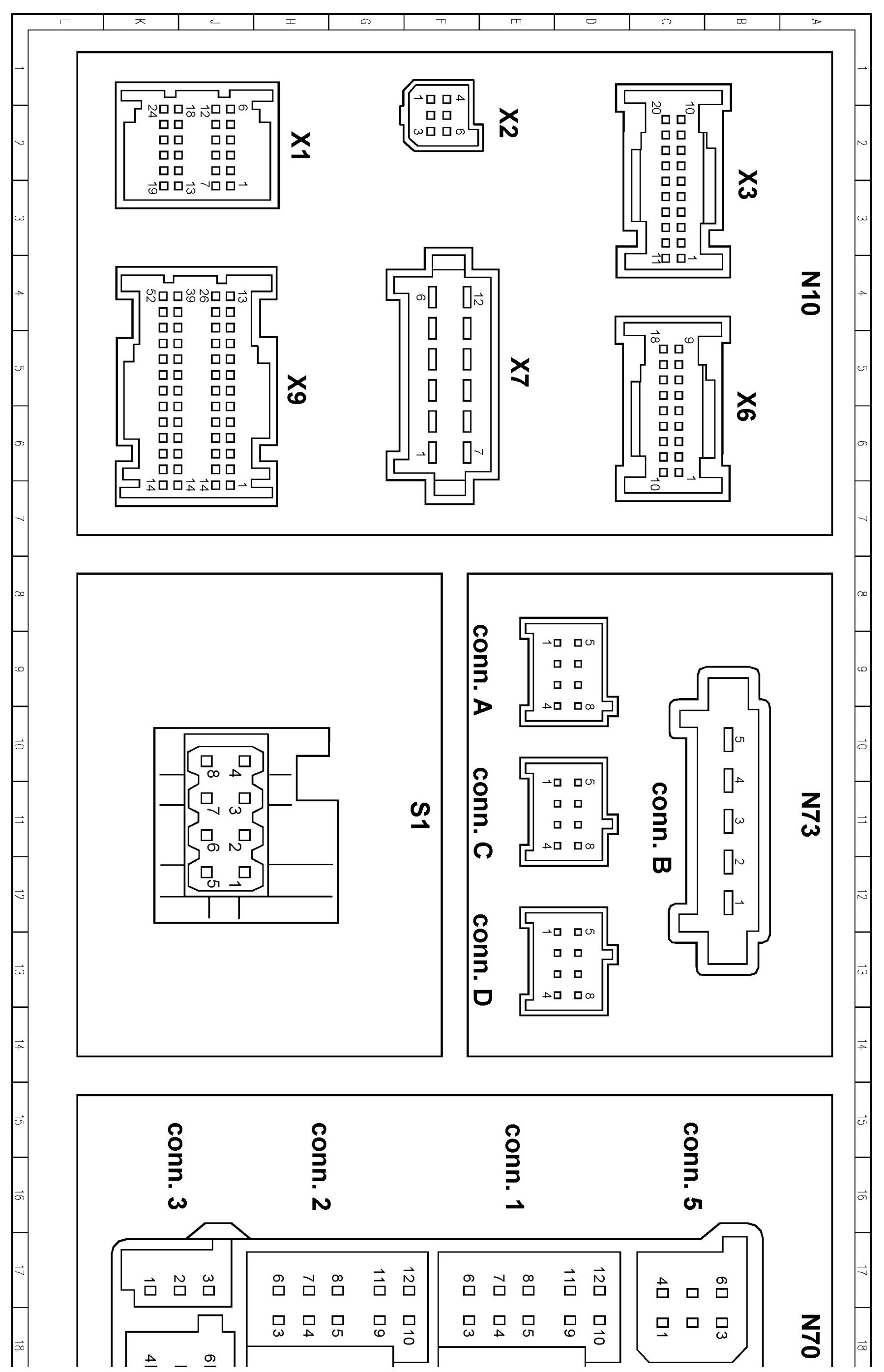

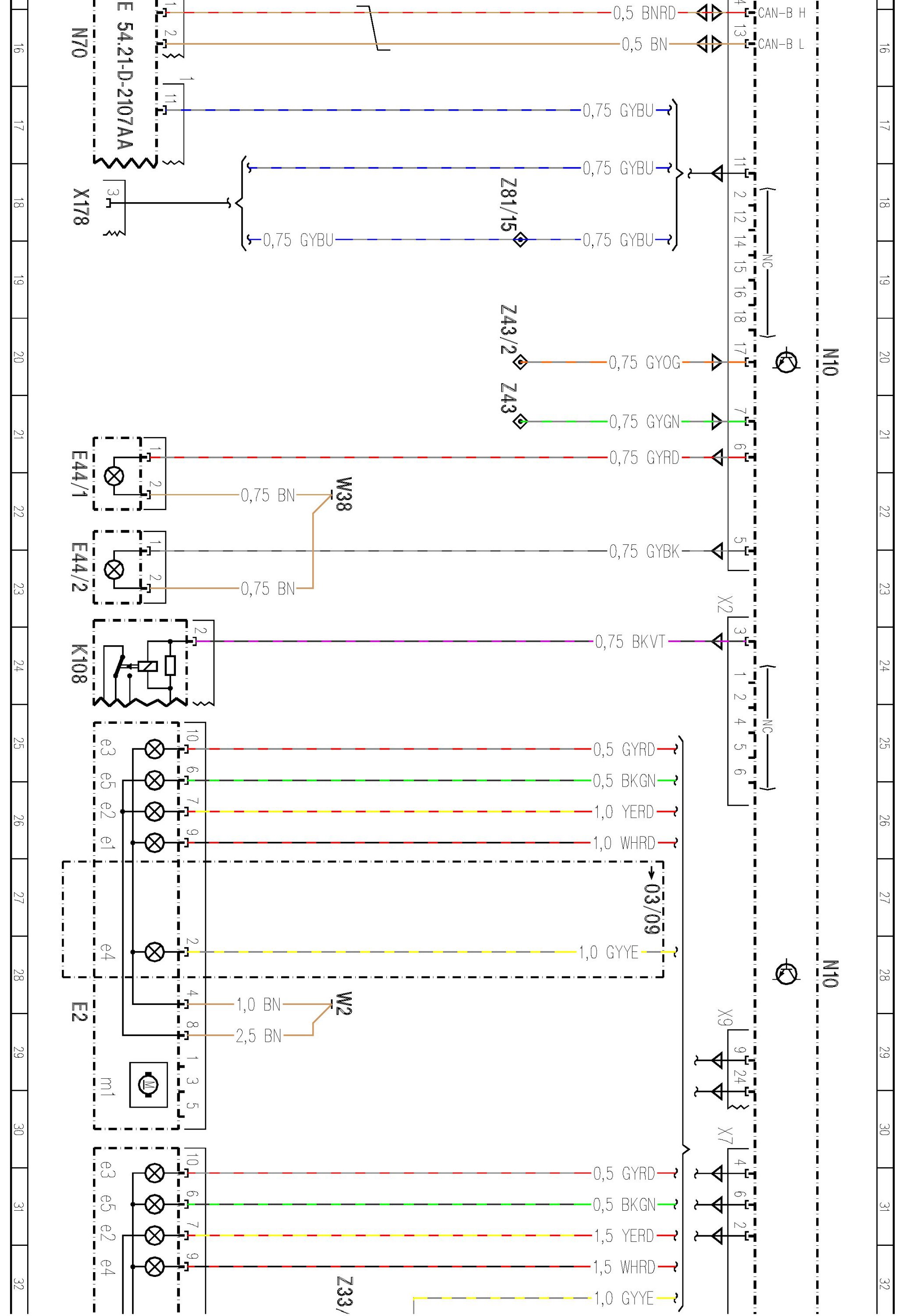

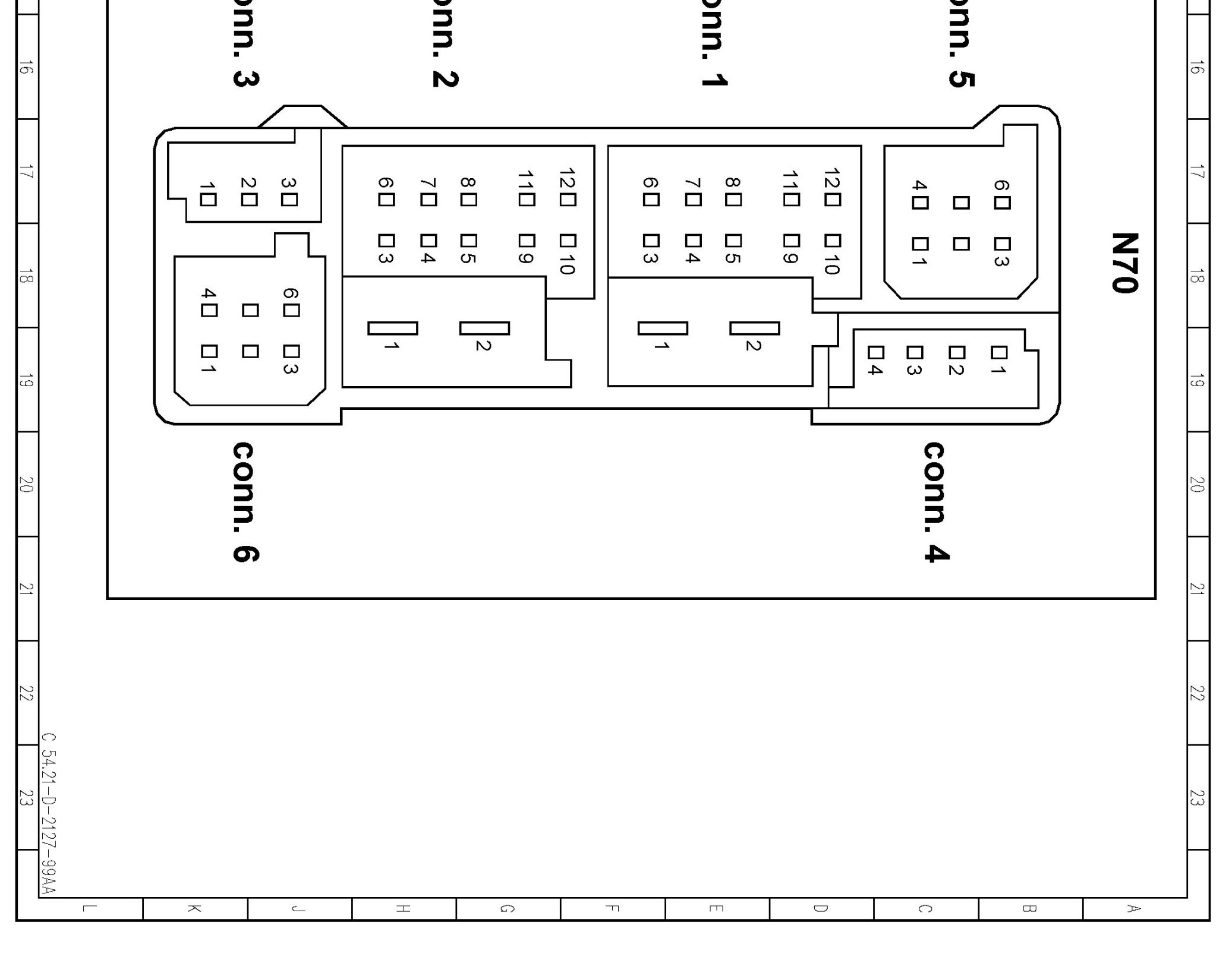

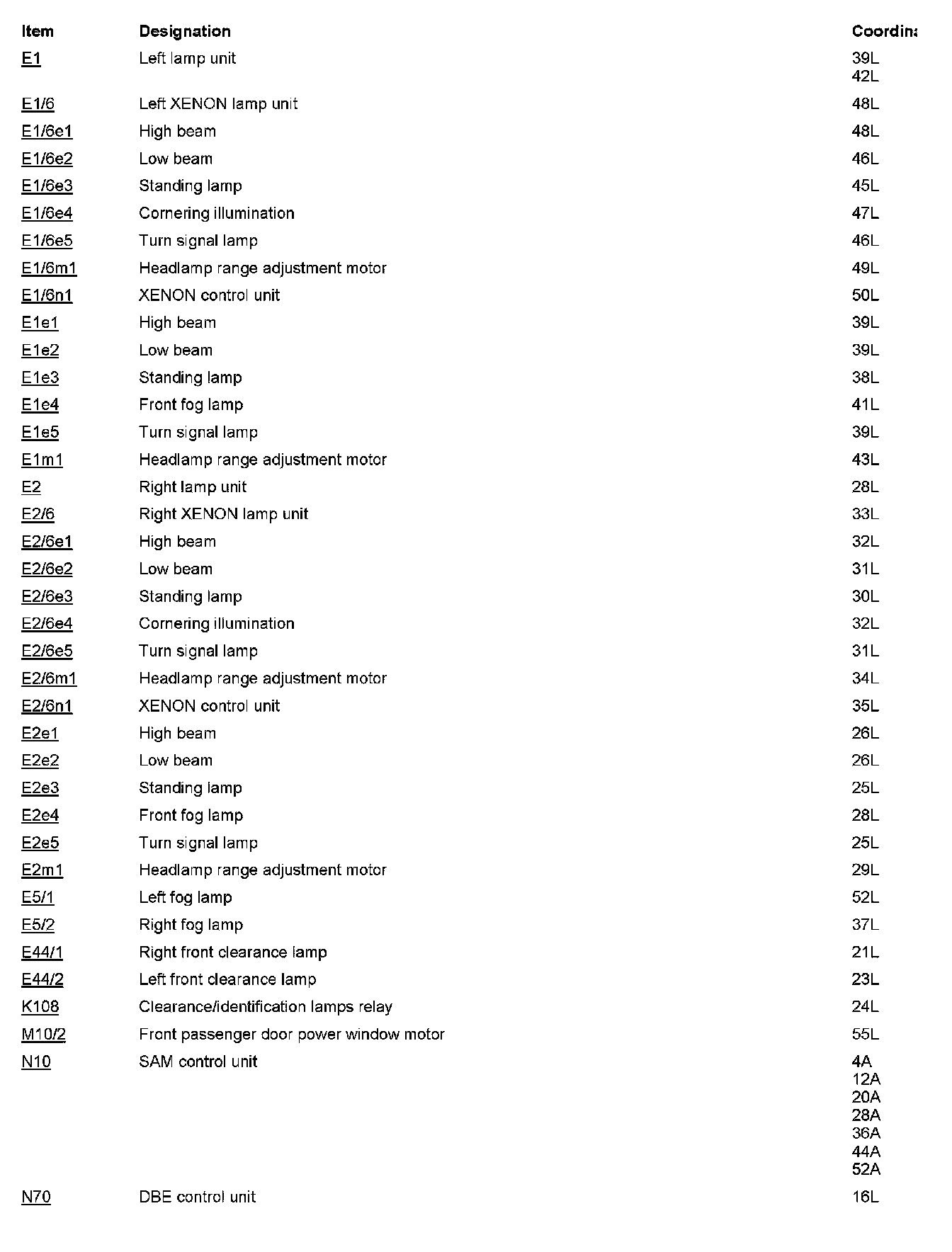

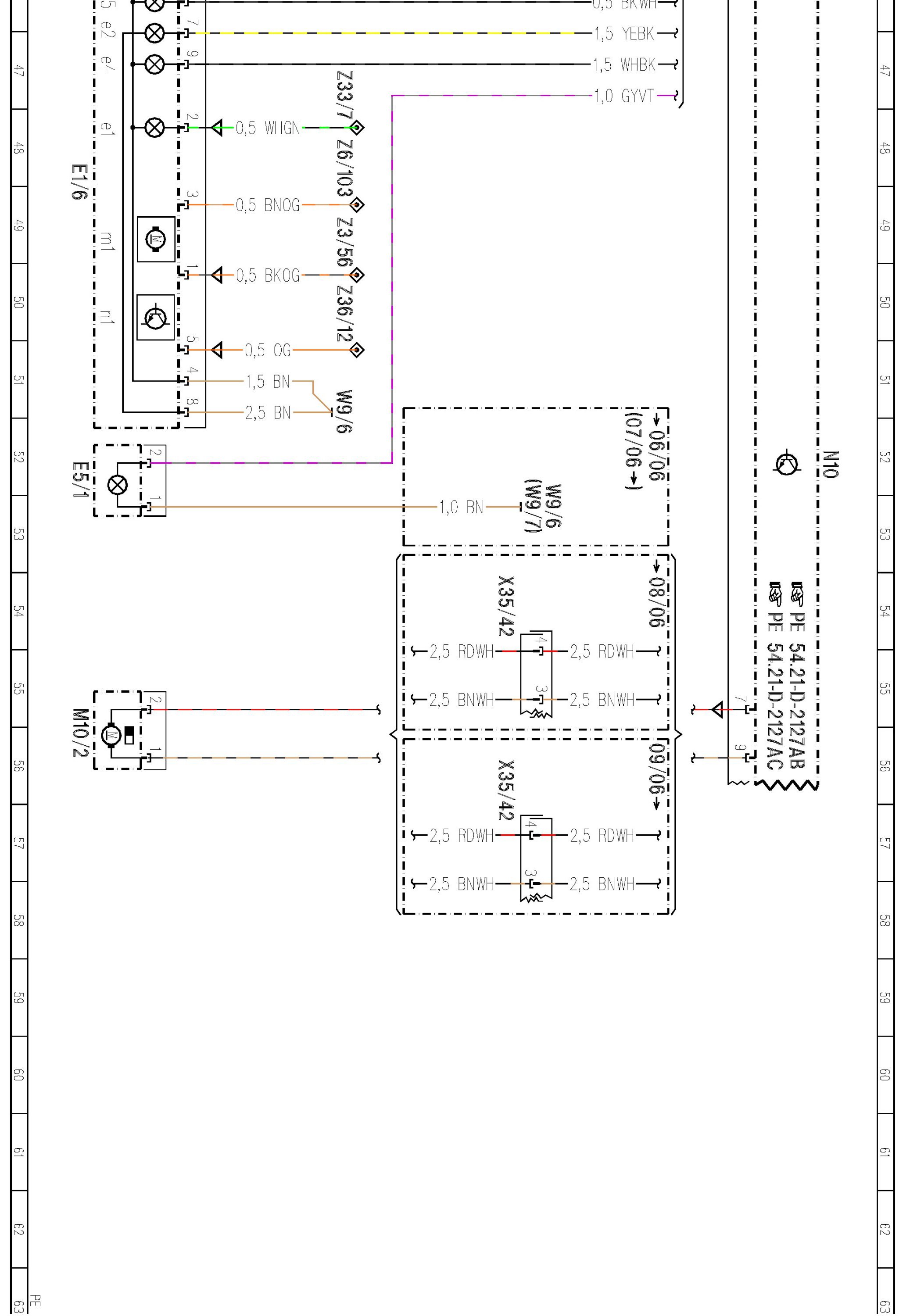

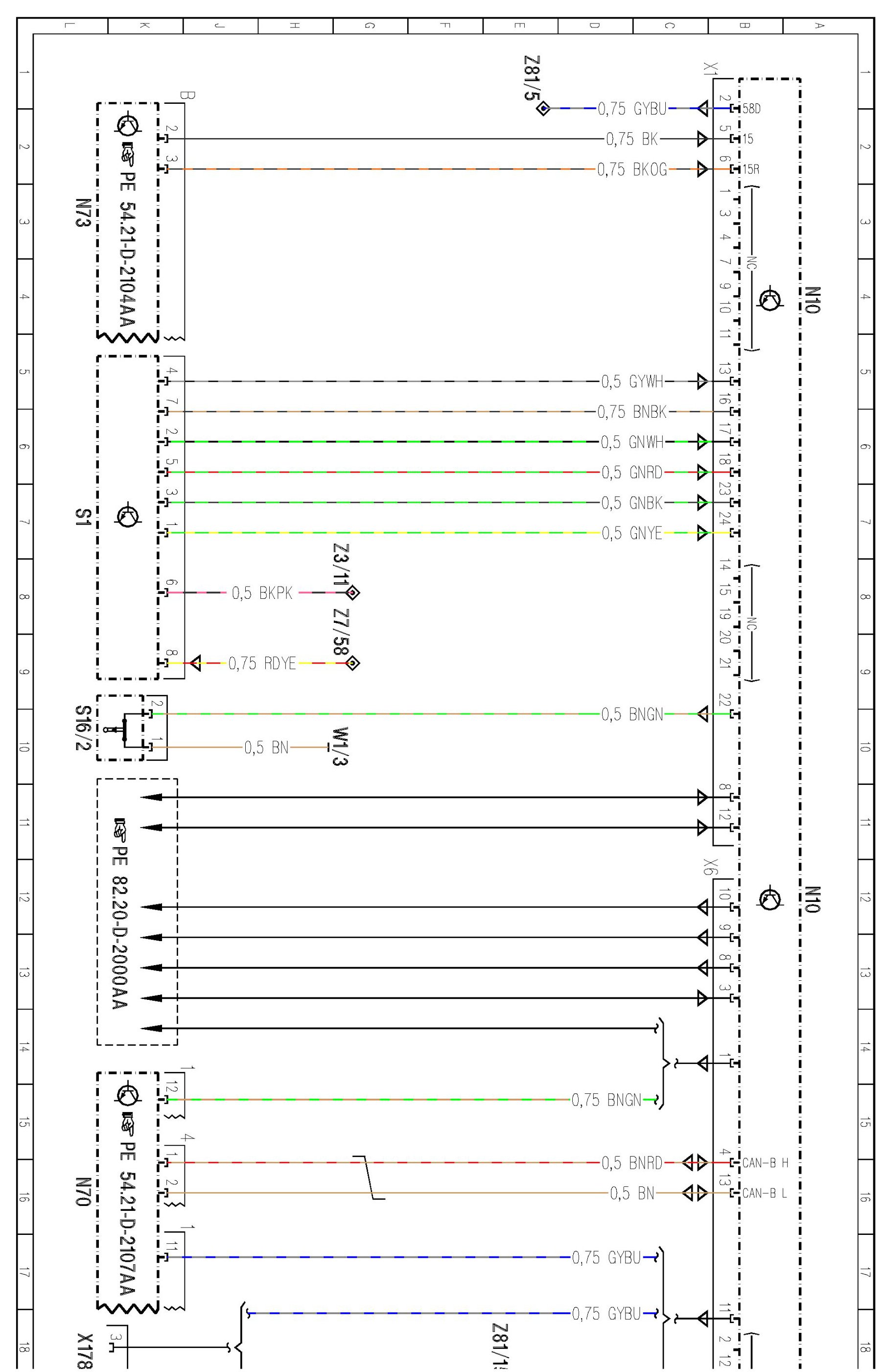

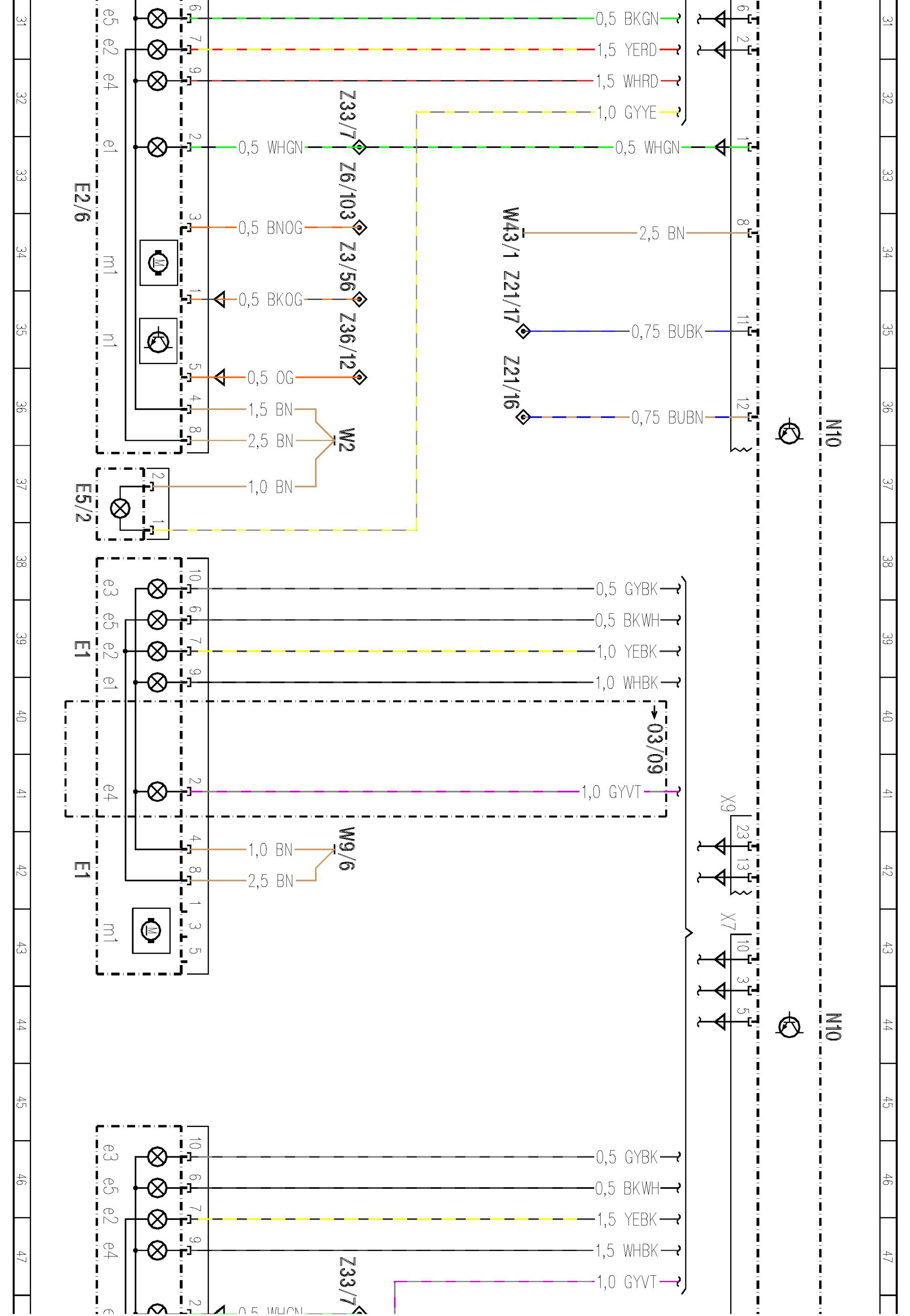

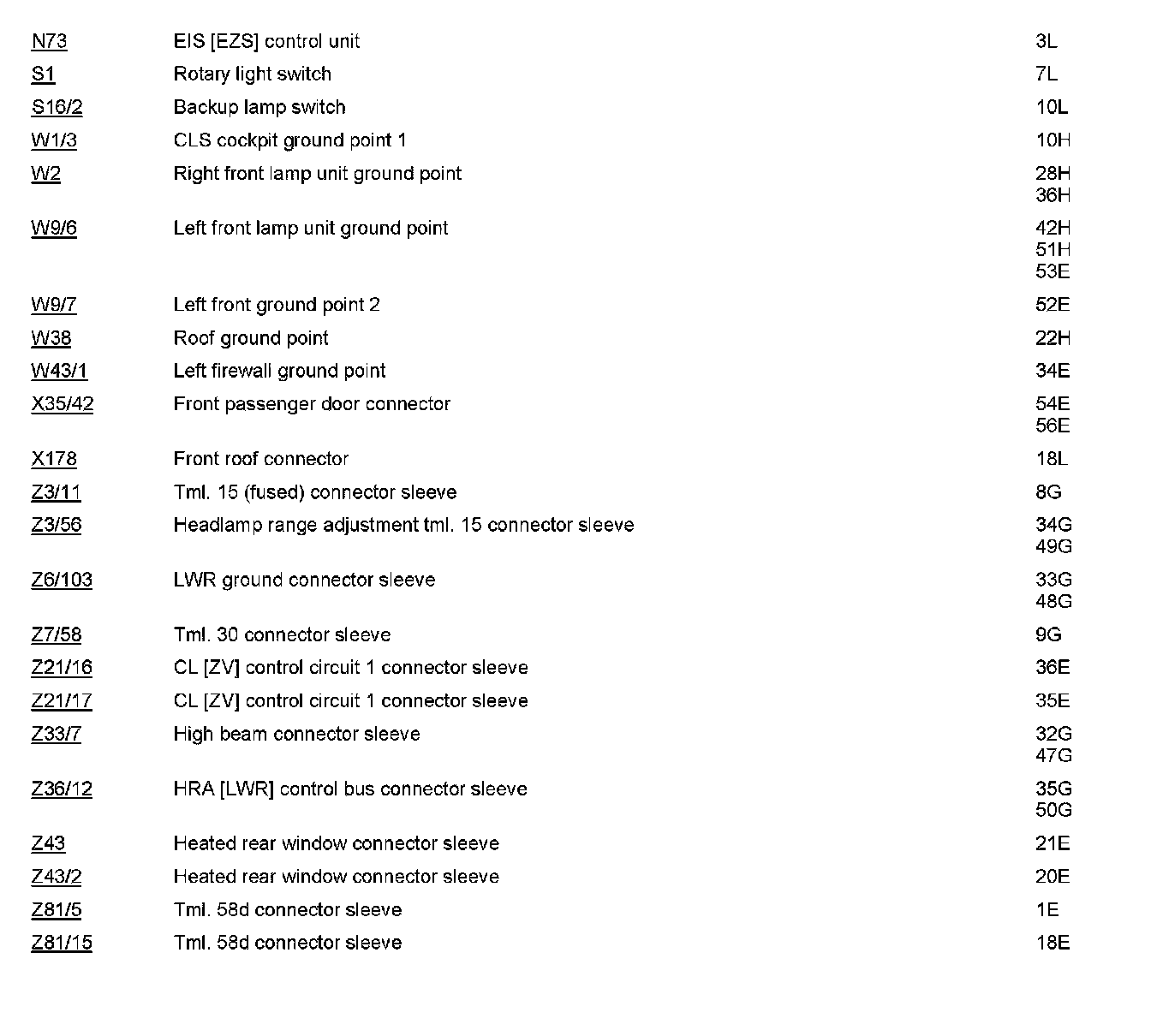

PE54.21-D-2127AA Signal Acquisition And Actuation Module (SAM) Control Unit



PE54.21-D-2127AA Signal Acquisition And Actuation Module (SAM) Control Unit

906 54 Electrical Systems - Equipment and Instruments
Model 906.1 /2 /6 /7 Sheet 1
