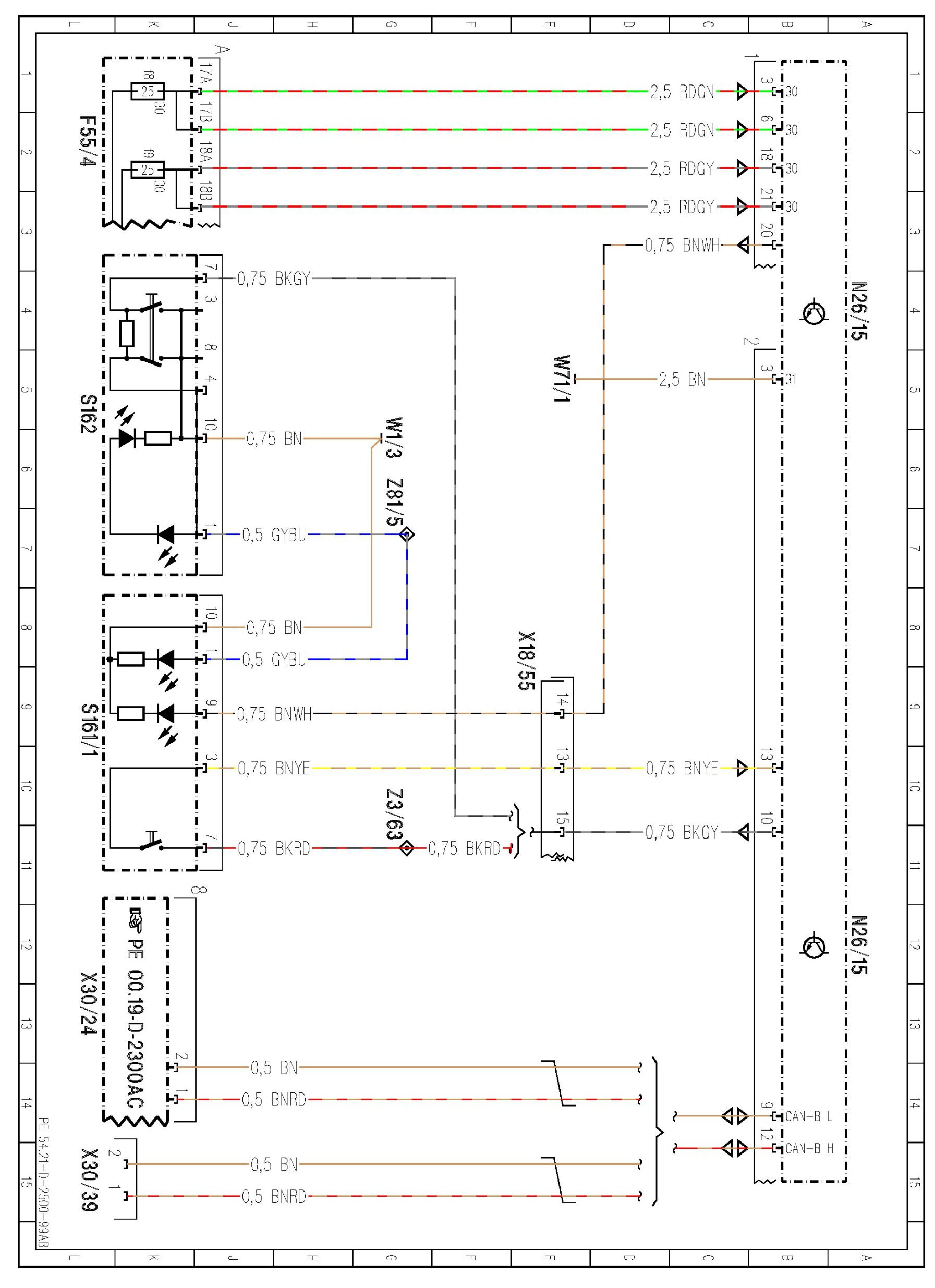

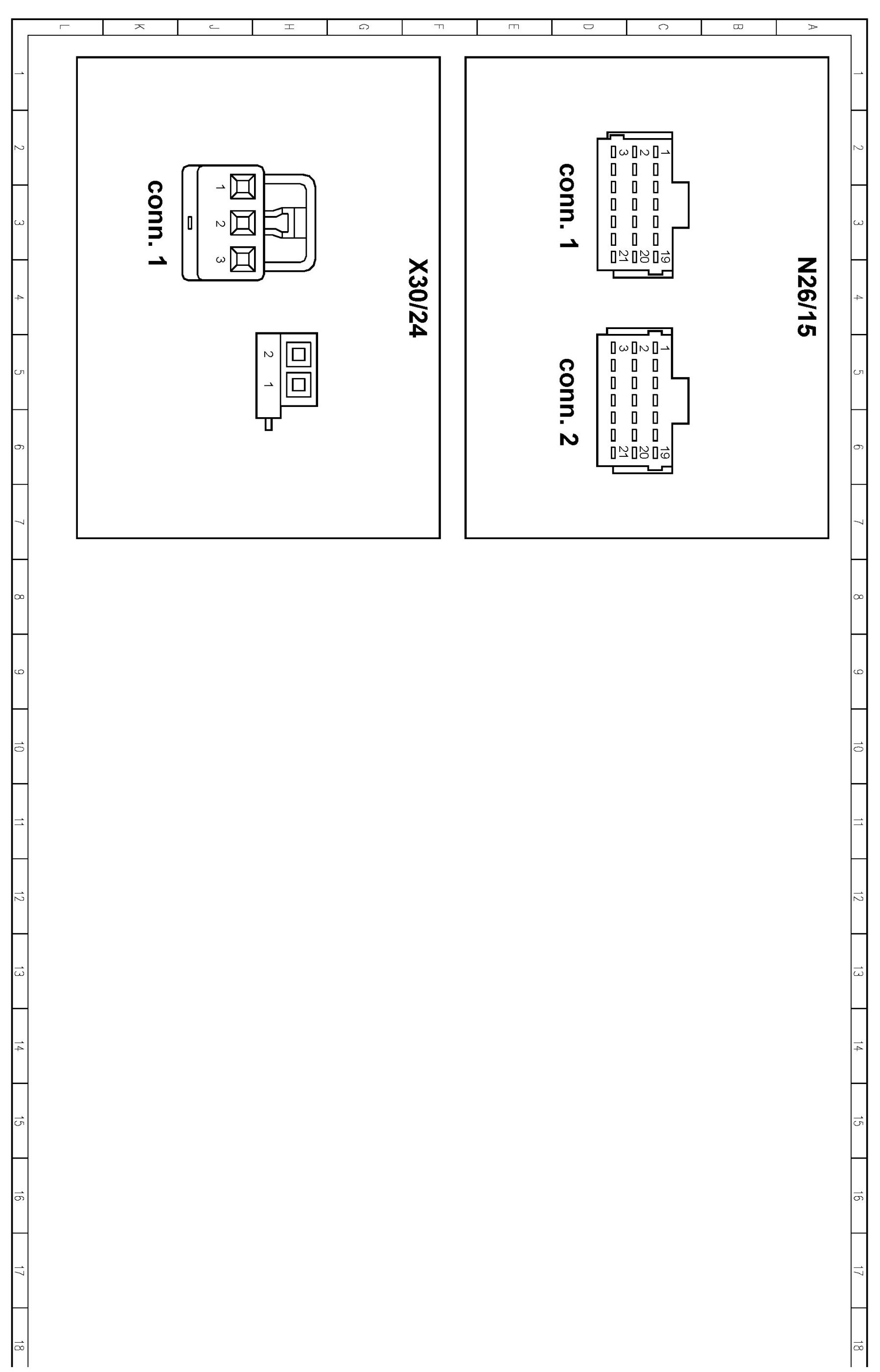

PE54.21-D-2500AB Parameterizable Special Module (PSM)



PE54.21-D-2500AB Parameterizable Special Module (PSM)

906 54 Electrical Systems - Equipment and Instruments
MODEL 906.1 /2 /6 /7
- with CODE (ED5) Parameterizable special module (PSM)
