Procedures

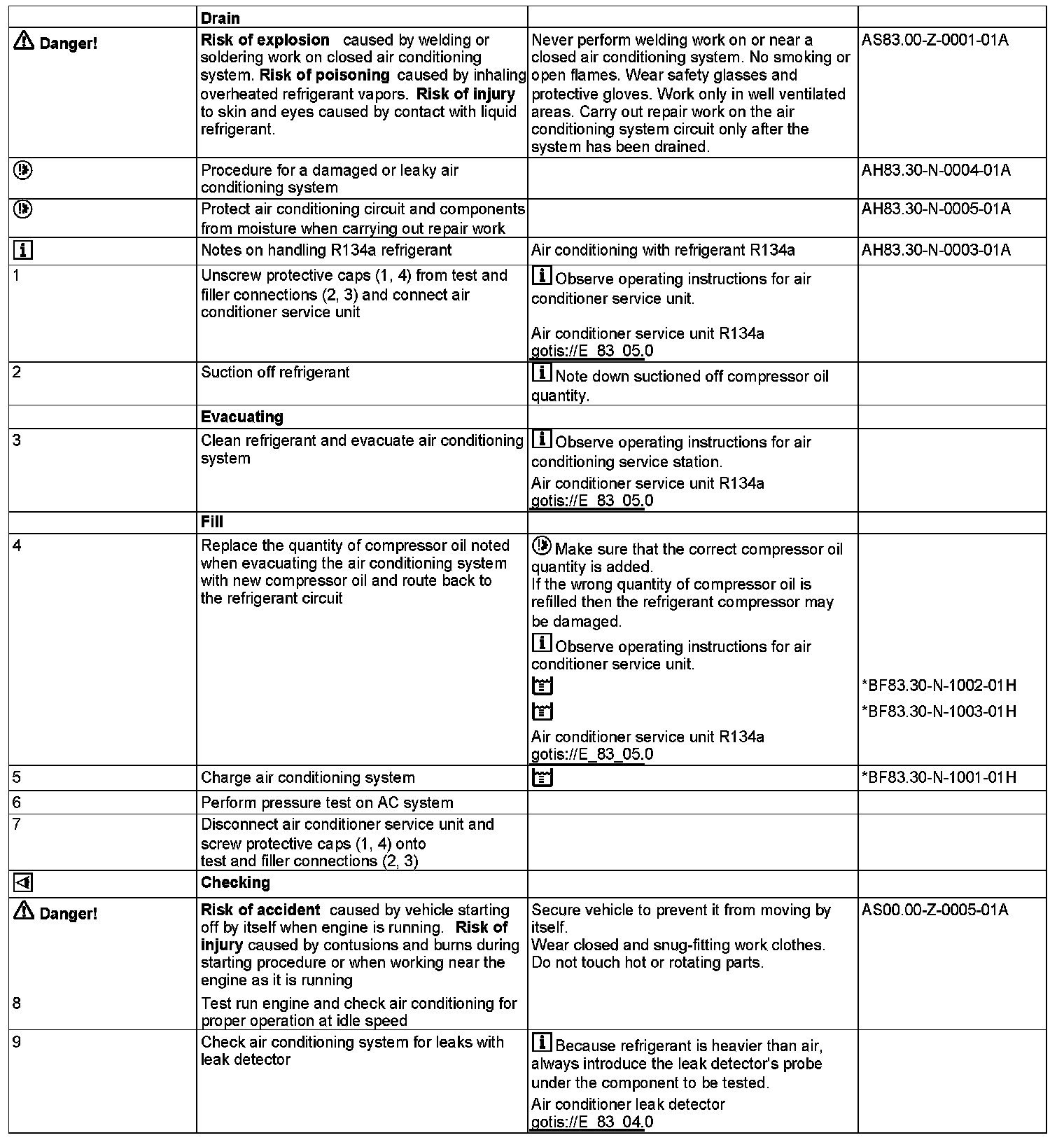

AR83.30-D-1760WE Drain, Evacuate And Recharge Air Conditioning, Check For Proper Operation And Check For Leaks

MODEL 906.6 /7
- with CODE (H08) High-performance air conditioning

MODEL 8AC906.633 /655 /657
- with CODE (ZL3) National version for Latin America
- with CODE (HK4) Rear air conditioning, reinforced

MODEL 900
- with CODE (HK4) Rear air conditioning, reinforced

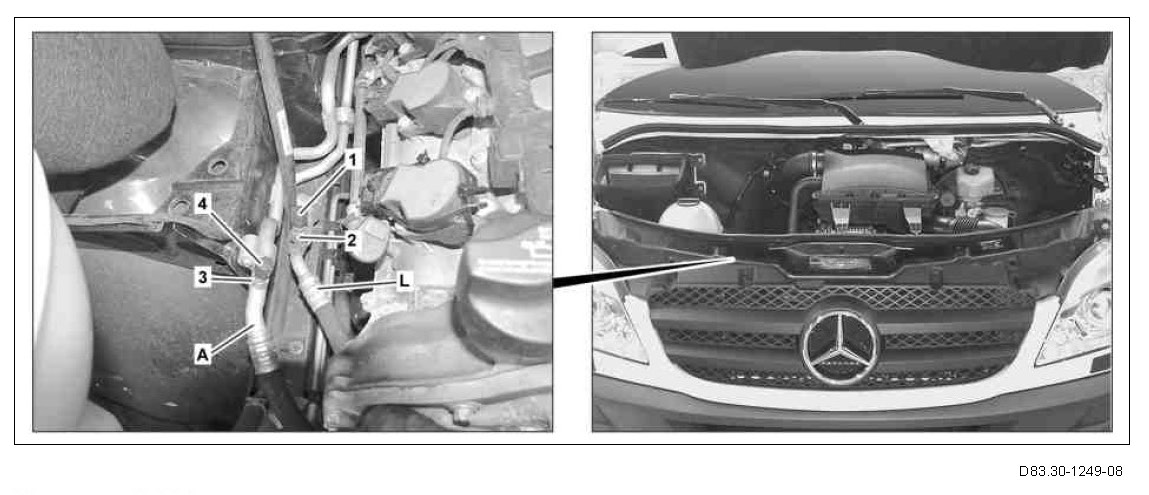

Shown on model 906.6






1 Protective cap
2 Test and filler connection
3 Test and filler connection
4 Protective cap
A Refrigerant line (pressure side)
L Refrigerant line (intake side)
