Power Steering Fluid: Adjustments

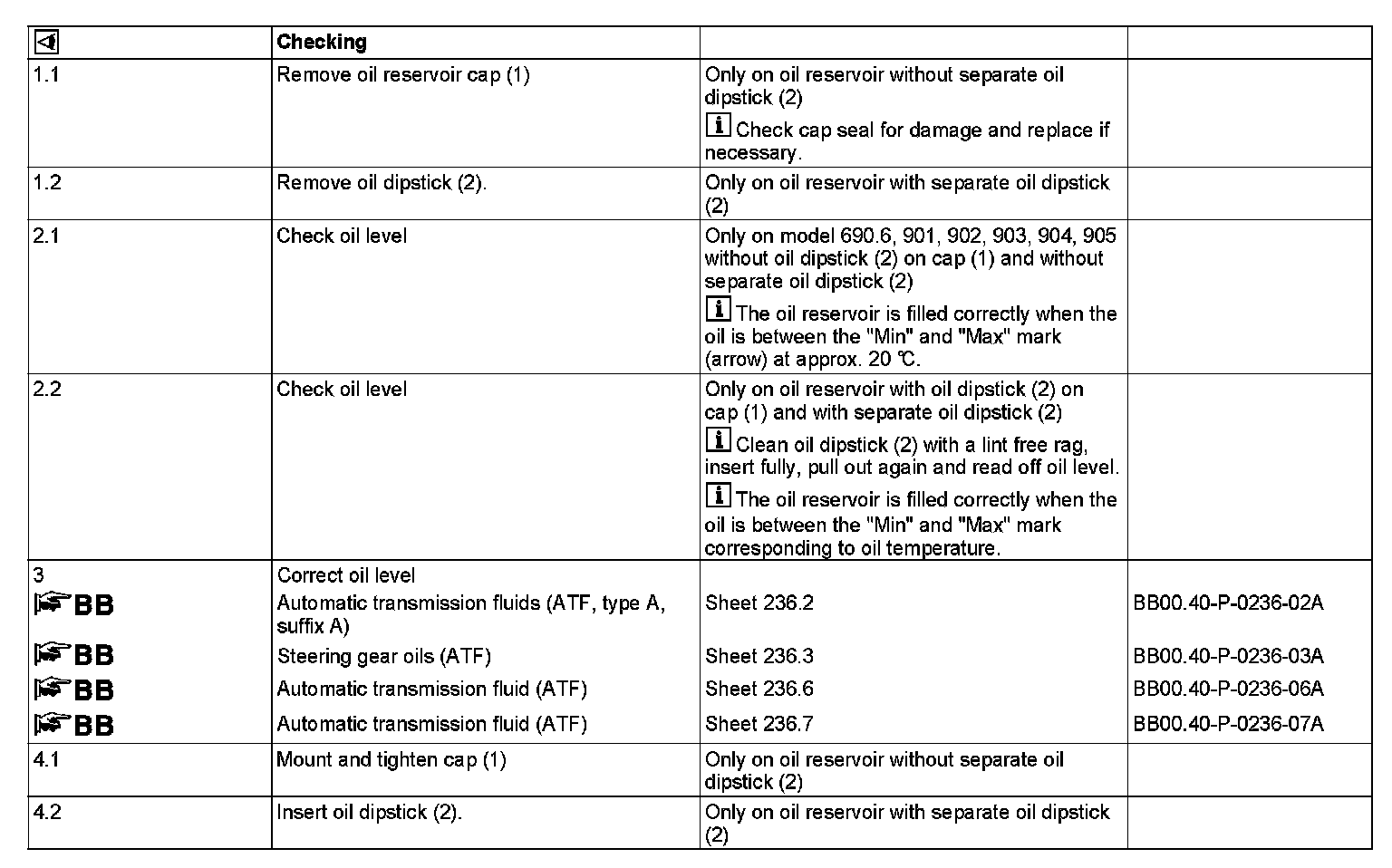

AP46.00-D-4611A Check And Correct Power Steering Fluid Level
MODEL 636, 638, 639
MODEL 900, 901, 902, 903, 904, 905, 906, 690.6
MODEL 667, 668, 670
- with ENGINE 602.9
MODEL 668, 670
- with ENGINE 900.9, 904.9
MODEL WD1, WD2, WD3, WD6, WD7, XD1, XD2, XD3, XD4, XD5, XD6, XD7, YD1, YD2, YD3, YD4, YD5, YD6, YD7

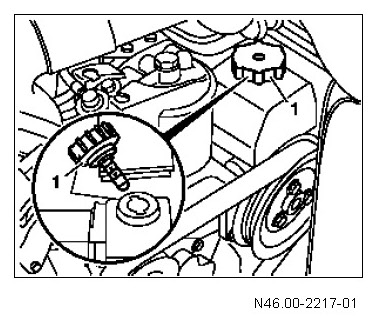

Shown on oil reservoir in model 638
1 Cap

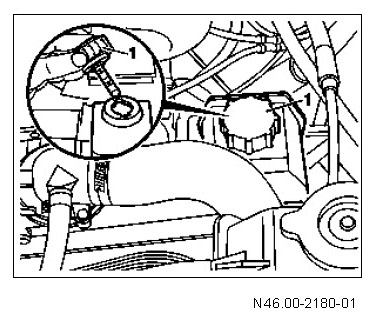

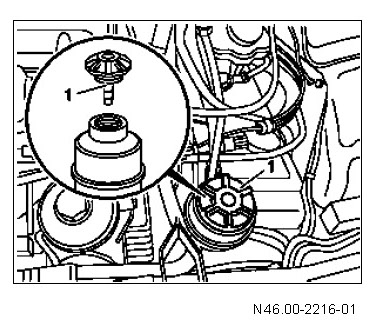

Shown on oil reservoir in model 636, 639
1 Cap

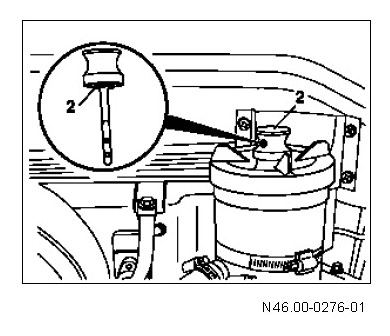

Shown on oil reservoir with dipstick in model 690.6, 900, 901, 902, 903, 904, 905, 906
1 Cap

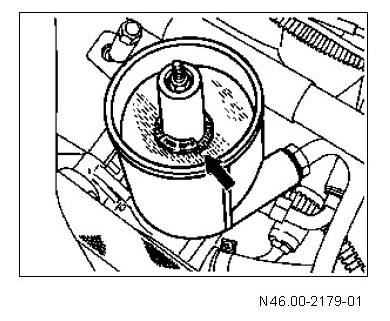

Shown on oil reservoir without dipstick in model 690.6, 901, 902, 903, 904, 905

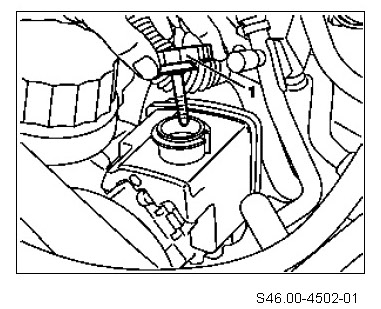

Shown on oil reservoir in model 667, 668, 670
2 Dipstick
