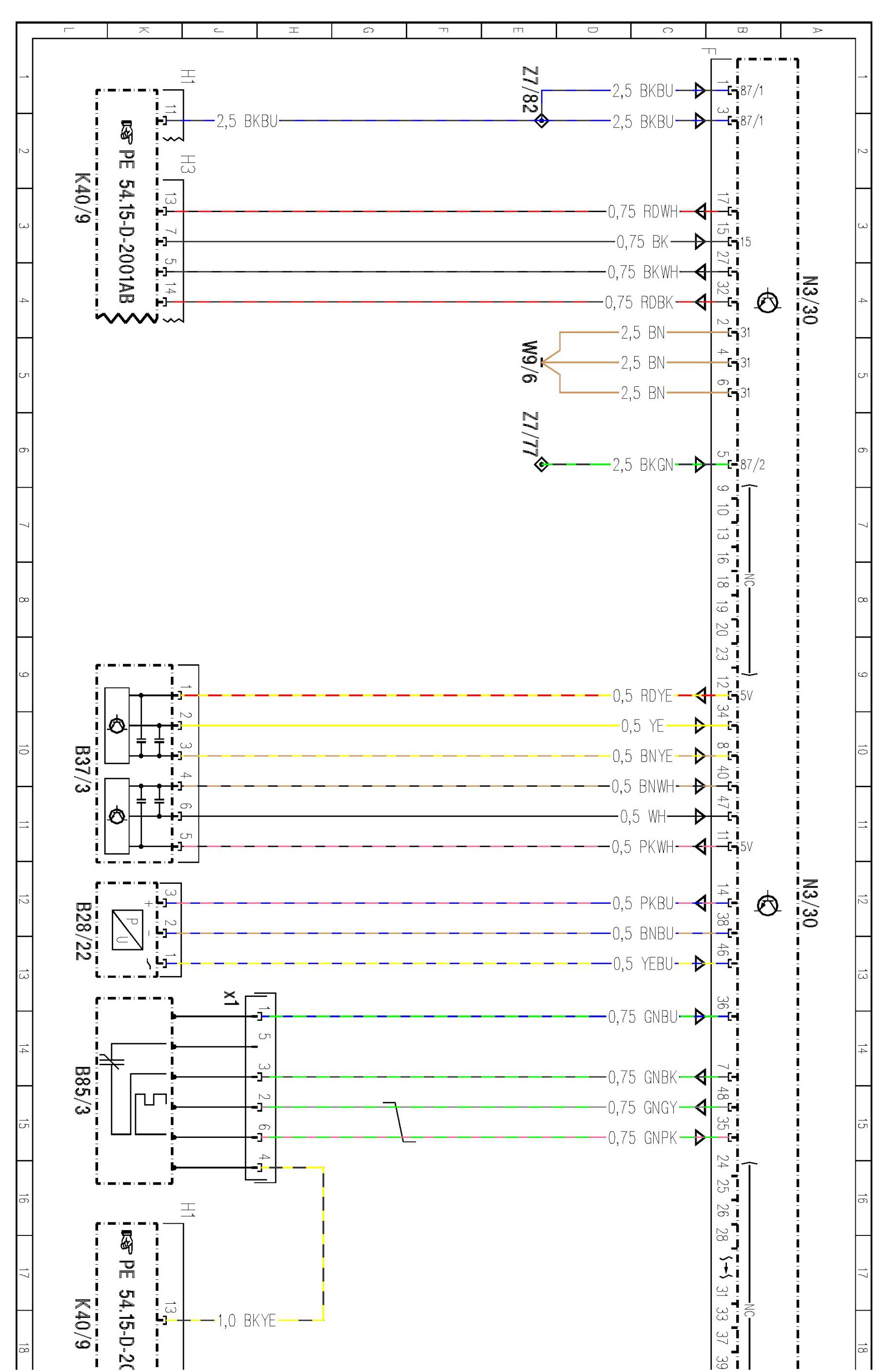

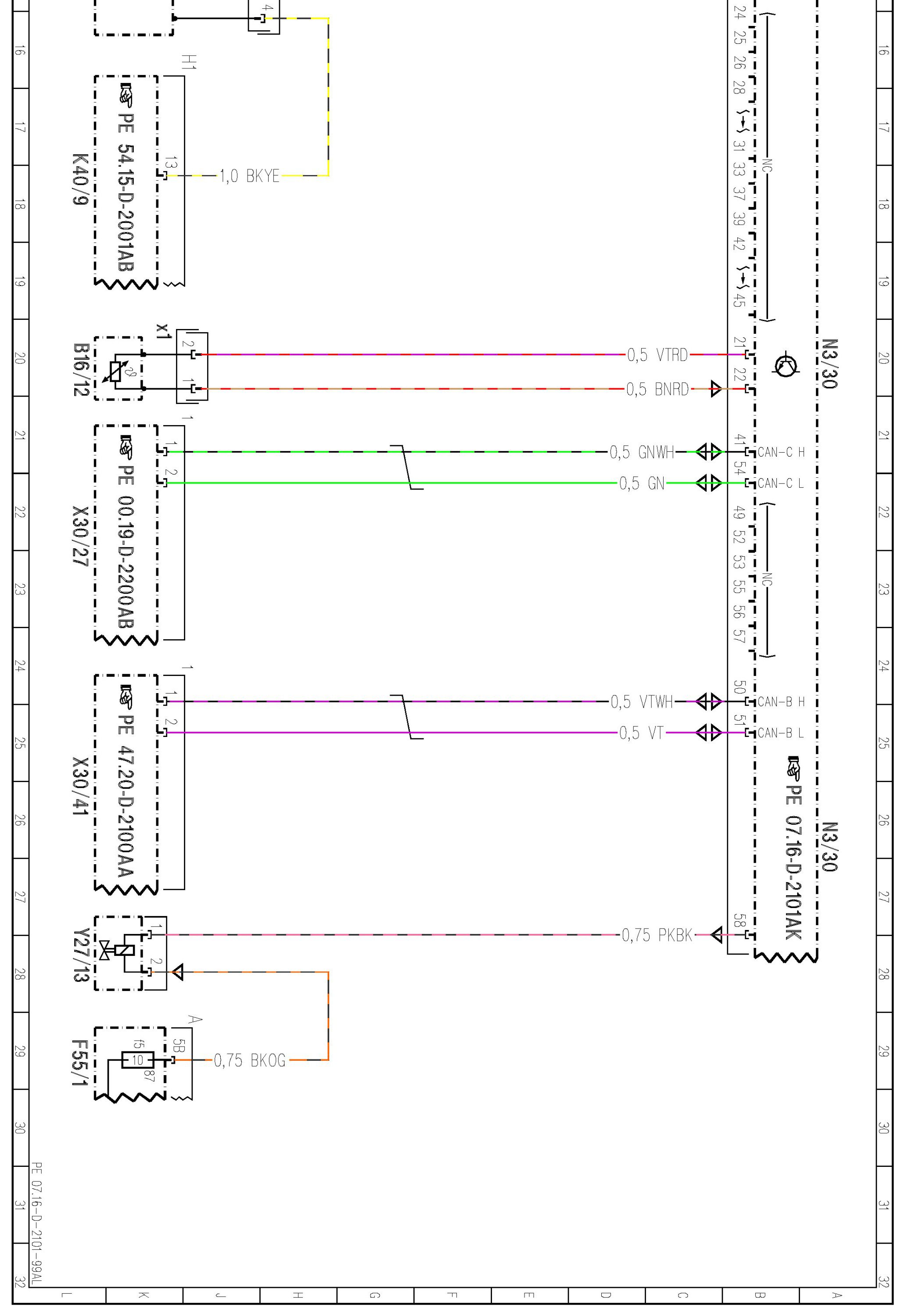

PE07.16-D-2101AL Common Rail Diesel Injection (CDI) Control Unit



PE07.16-D-2101AL Common Rail Diesel Injection (CDI) Control Unit

906 07�Engine - Fuel Management
ENGINE 642.898 in MODEL 906.1 /2 /6 /7
- with CODE (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm
- with CODE (MH1) Low-emission engine EPA 10 / CARB plug F
