Restraints and Safety Systems: Diagrams

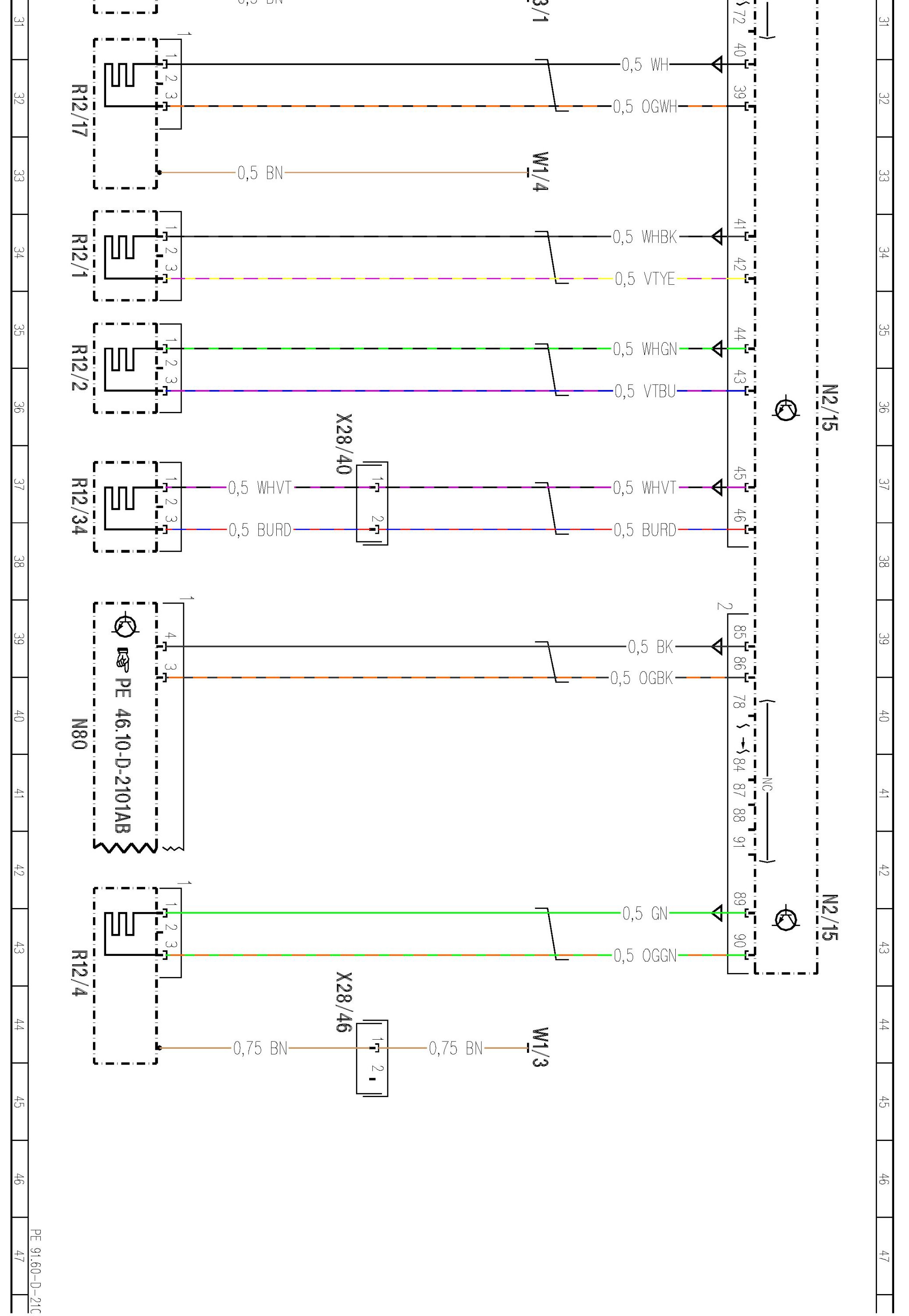

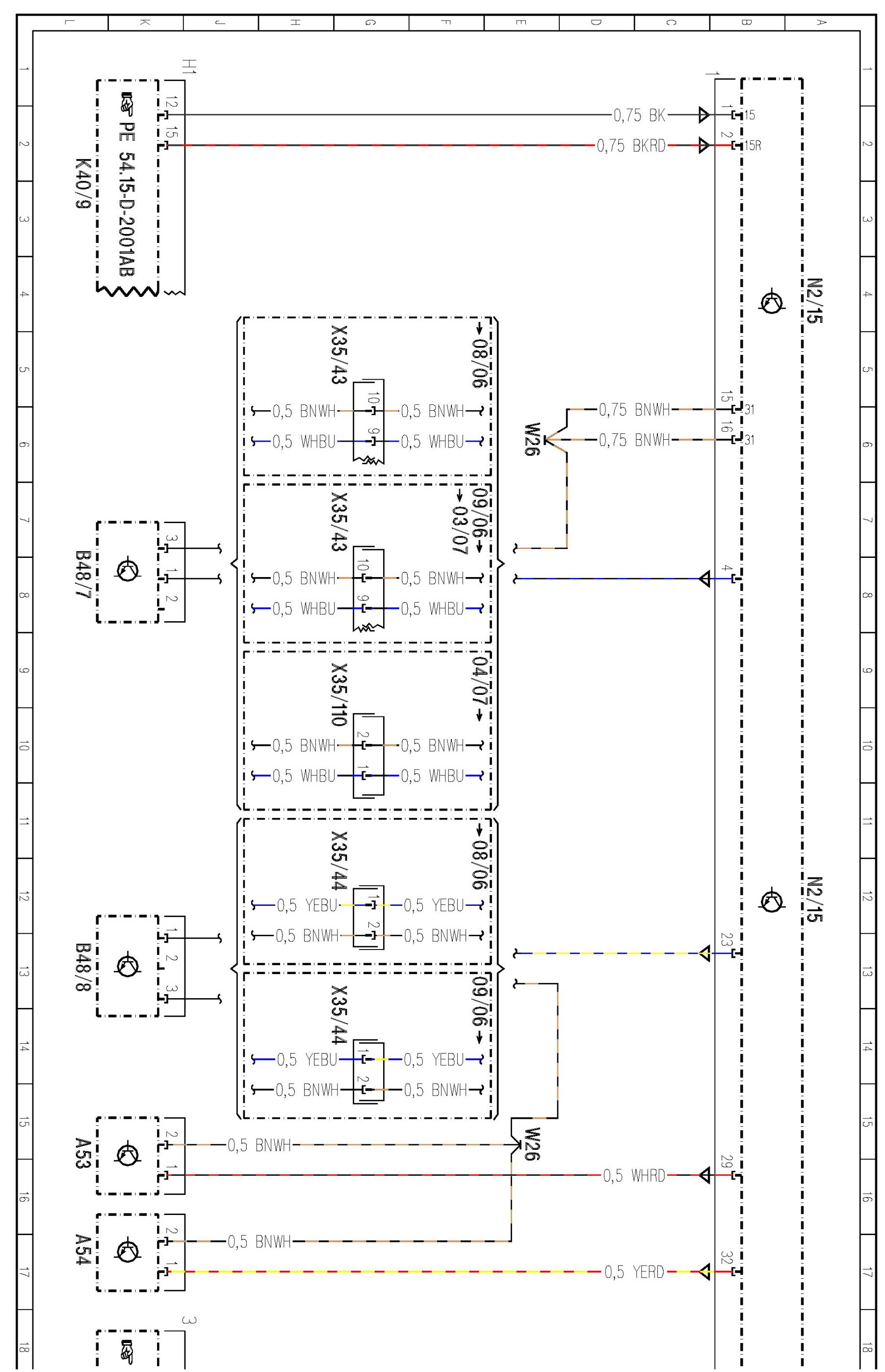

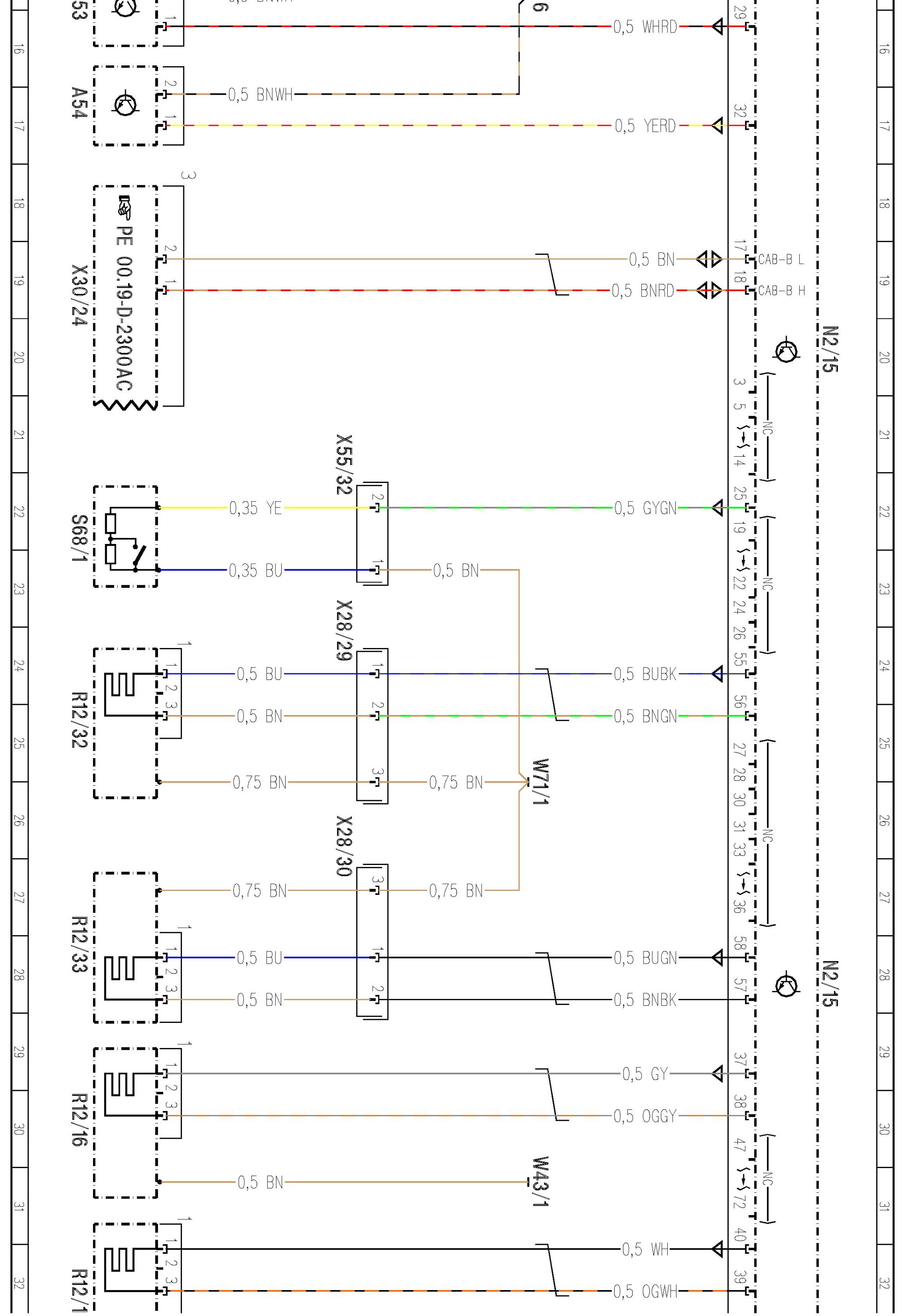

PE91.60-D-2101AB Airbag Control Unit With Integrated Emergency Call System 906 91��Seats, SRS
Model 906.1 /2 /6 /7
-
with CODE (SH6) Thoraxbag for driver (in backrest)
-
with CODE (SH7) Thoraxbag for driver and front passenger (in backrest)
-
with CODE (SH9) Windowbag for driver and front passenger Highline airbag control unit
