Home
>>
GMC
>>
1982
>>
Jimmy Full Size V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Cruise Control Regulator:

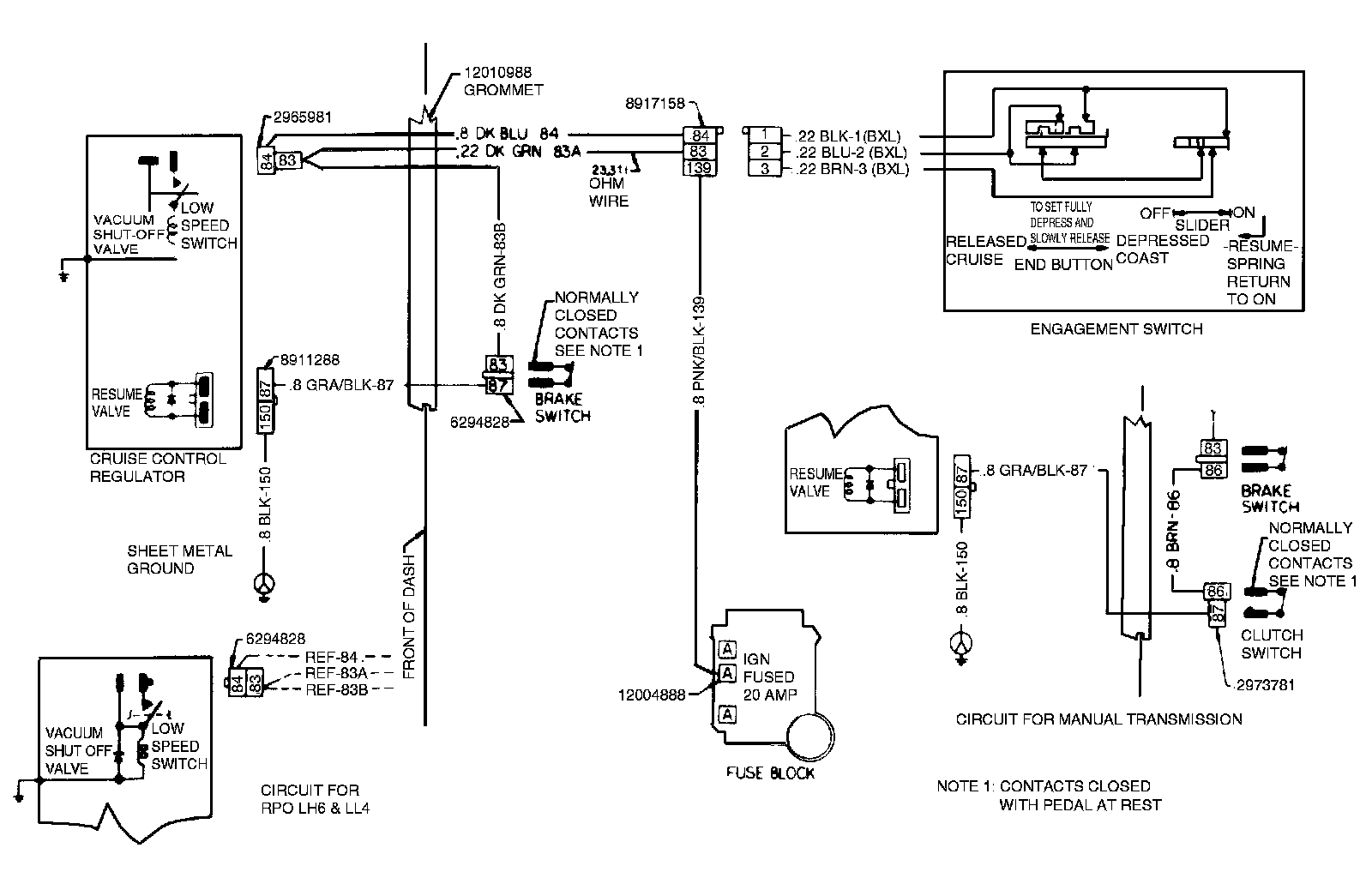

Cruise Control Diagram:
