Operation CHARM
: Car repair manuals for everyone.
Home
>>
GMC
>>
1982
>>
Jimmy Full Size V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
With Power Windows
With Power Windows

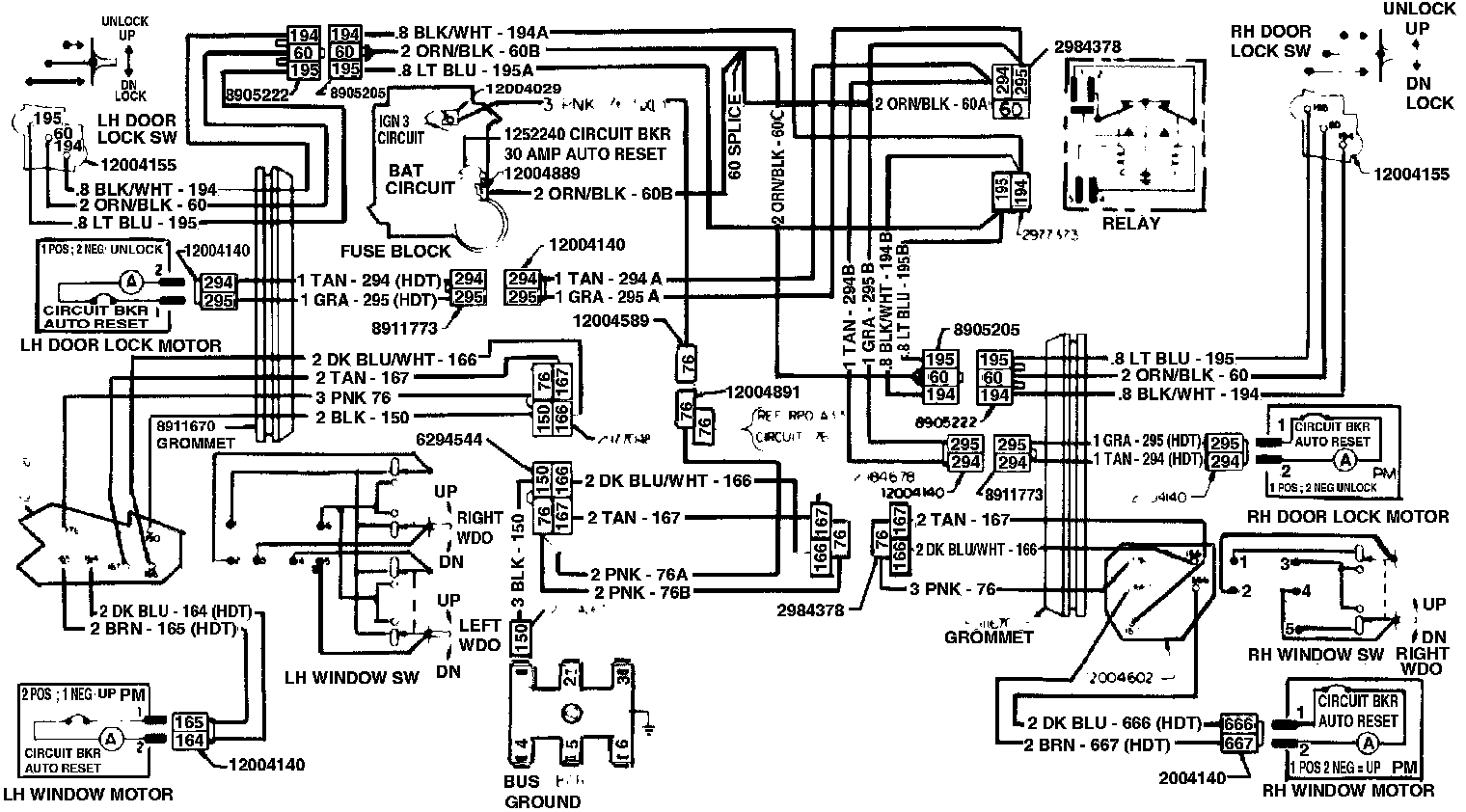

Power Windows And Door Locks And Relays:
