Home >> GMC >> 1982 >> Jimmy Full Size V8-379 6.2L DSL >> Repair and Diagnosis >> Starting and Charging >> Diagrams

Starting and Charging: Diagrams

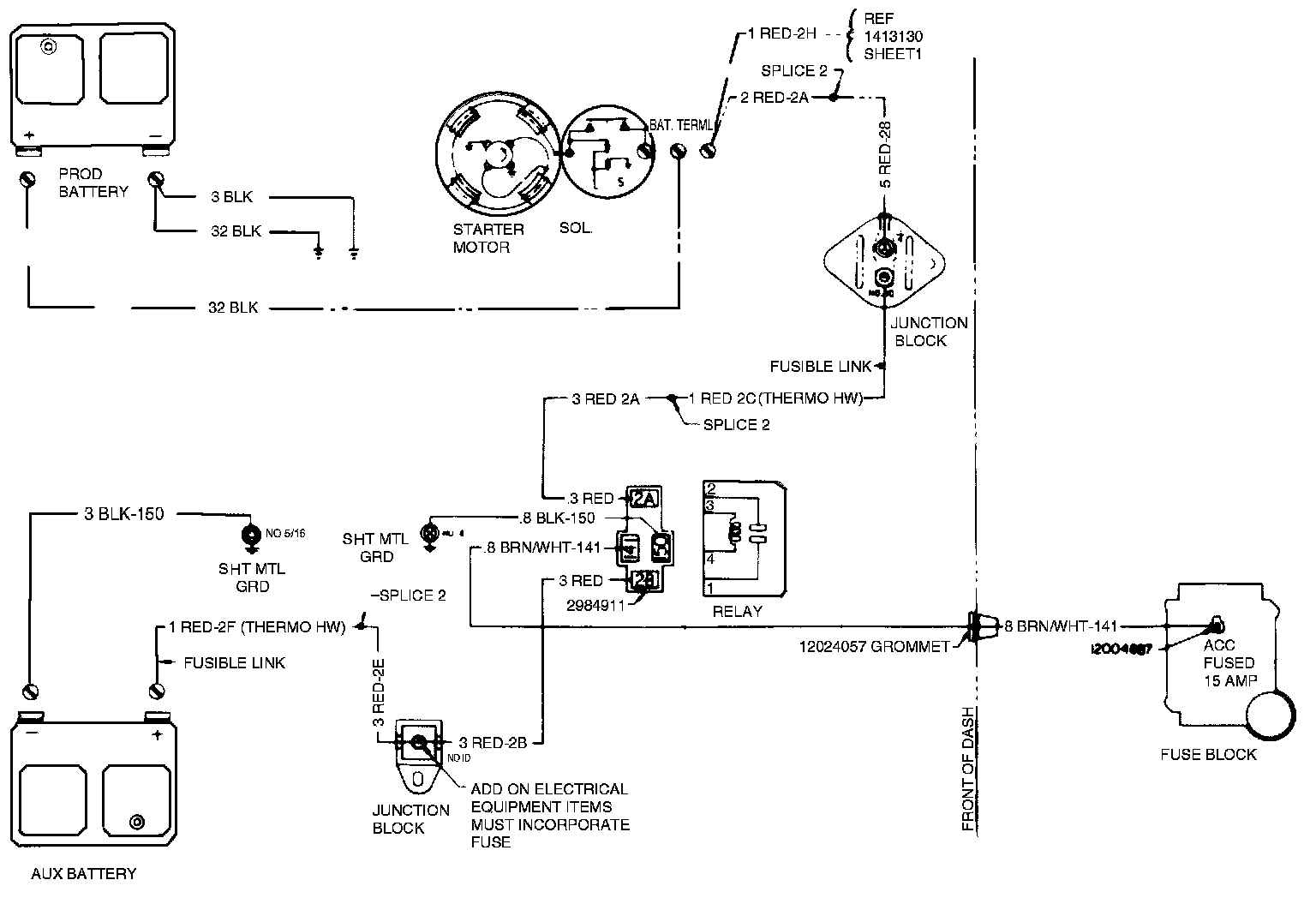

Starting System Diagram:
