Home >> GMC >> 1984 >> Jimmy Full Size V8-379 6.2L DSL >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Control Solenoid >> Testing and Inspection

EGR Control Solenoid: Testing and Inspection

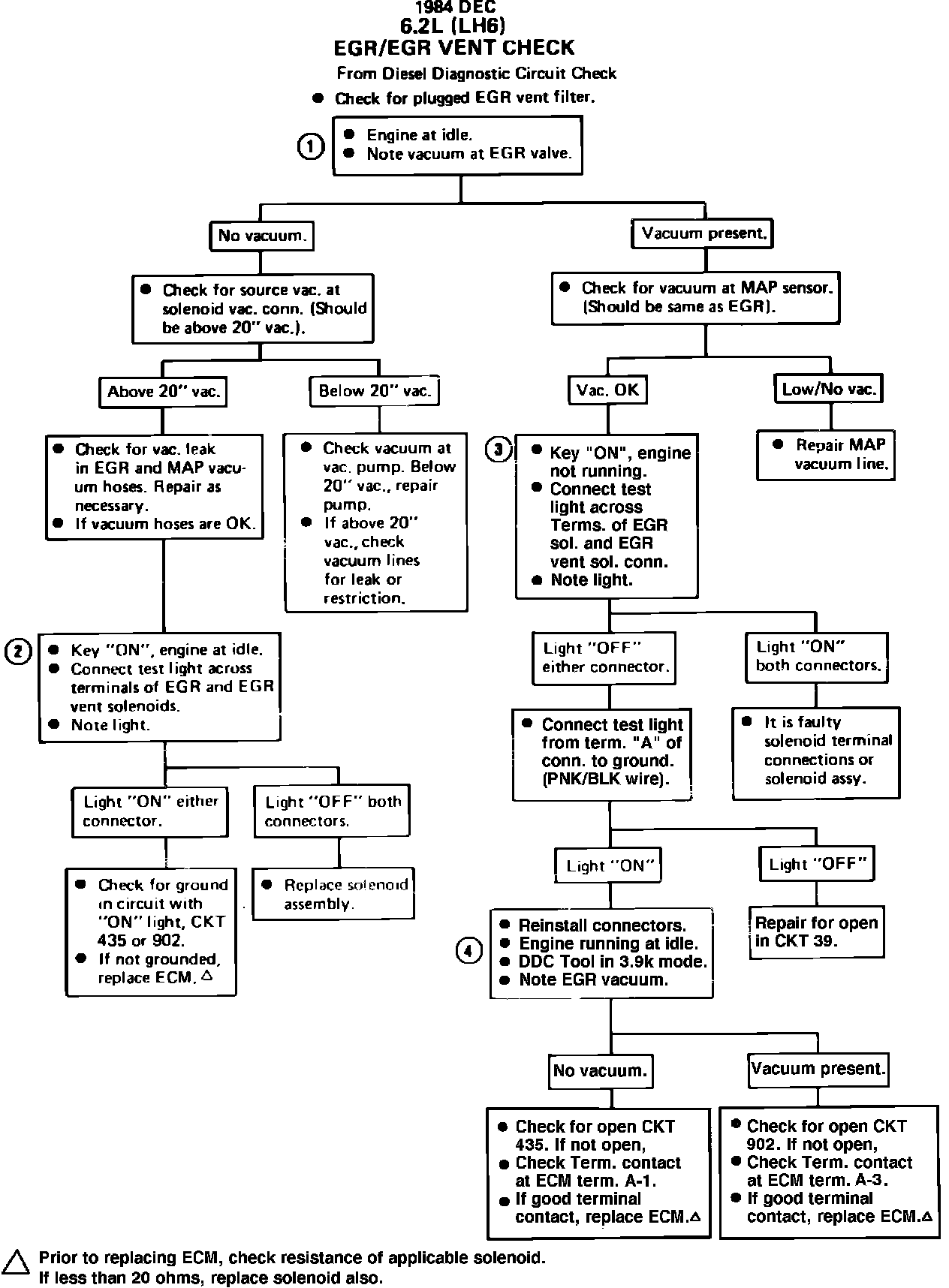

Fig. 12 EGR & EGR vent check. 1984:
