GMC
>>
1985
>>
Jimmy Full Size V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Federal Vehicles
Federal Vehicles

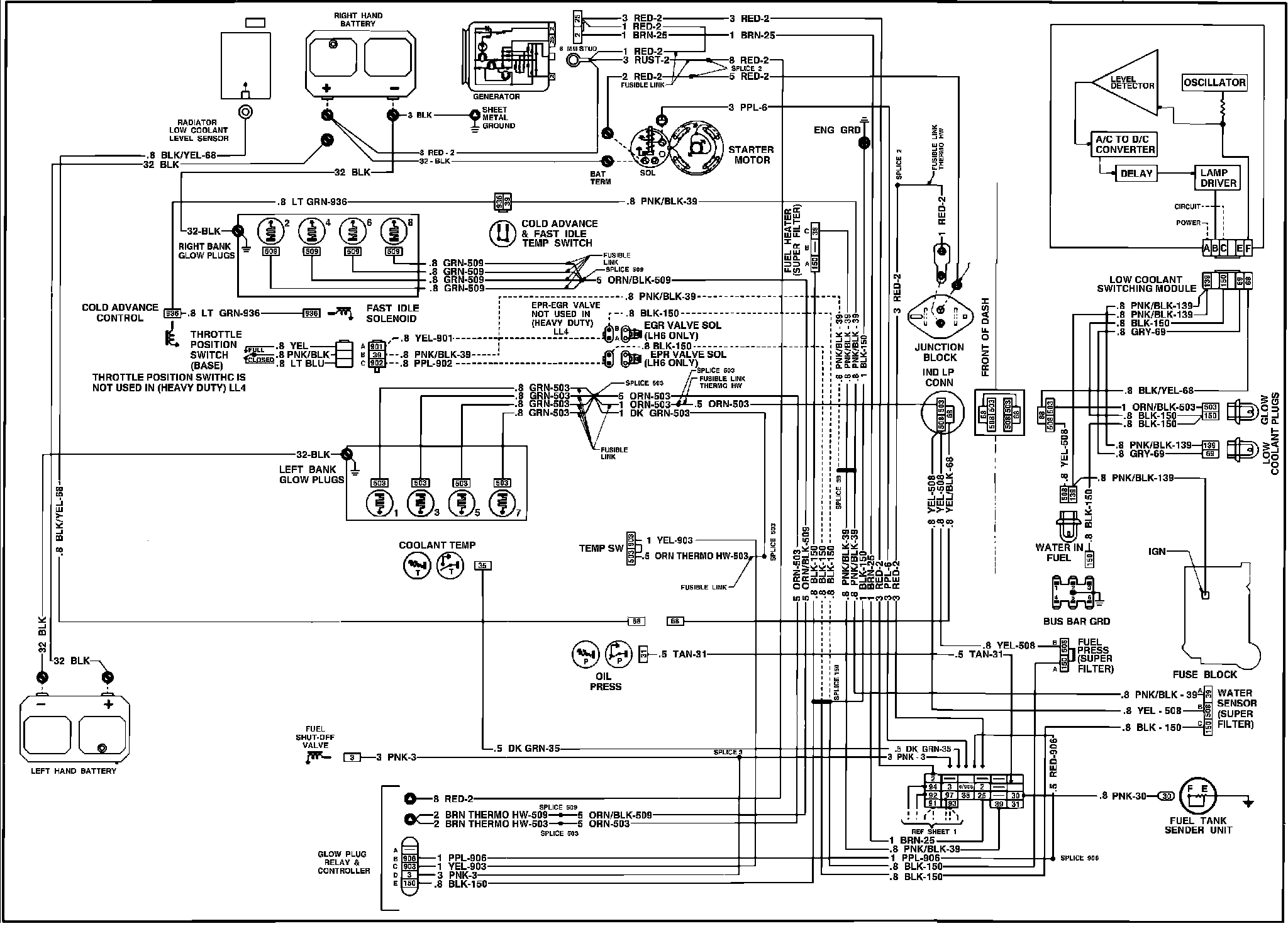

Engine Wiring Circuit. Federal:
