Drive Belt: Service and Repair

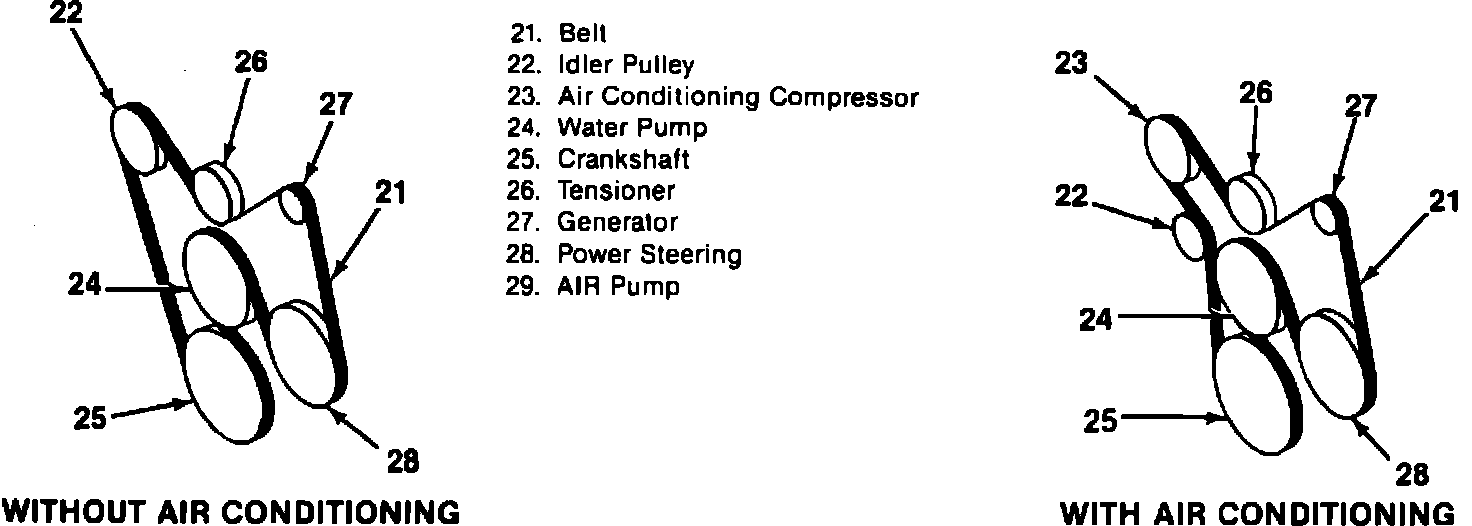

Fig. 20 Serpentine Drive Belt Routing:

1. Remove belt tensioner pulley retaining bolt.
2. Remove belt tensioner pulley. then the belt.
3. Reverse procedure to install, refer to Fig. 20 for belt routing.
