Powertrain Control Module (PCM)

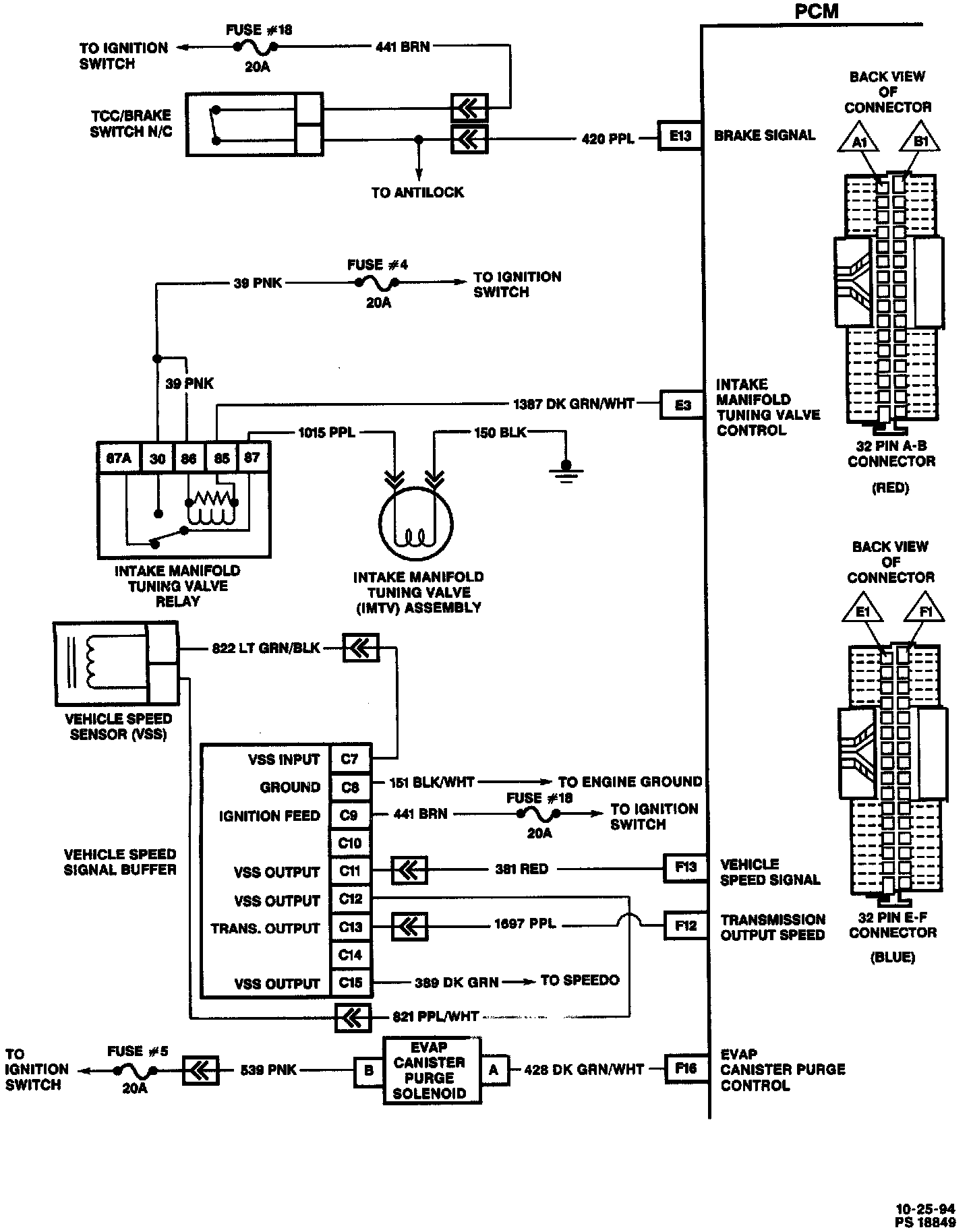

PCM Wiring Diagram (1 Of 5):





PCM Wiring Diagram (2 Of 5):





PCM Wiring Diagram:





PCM Wiring Diagram (4 Of 5):





PCM Wiring Diagram (5 Of 5):





PCM Wiring Diagram 4L60-E Transmission:
