Convenience Center

Fuse Block Details: Convenience Center:

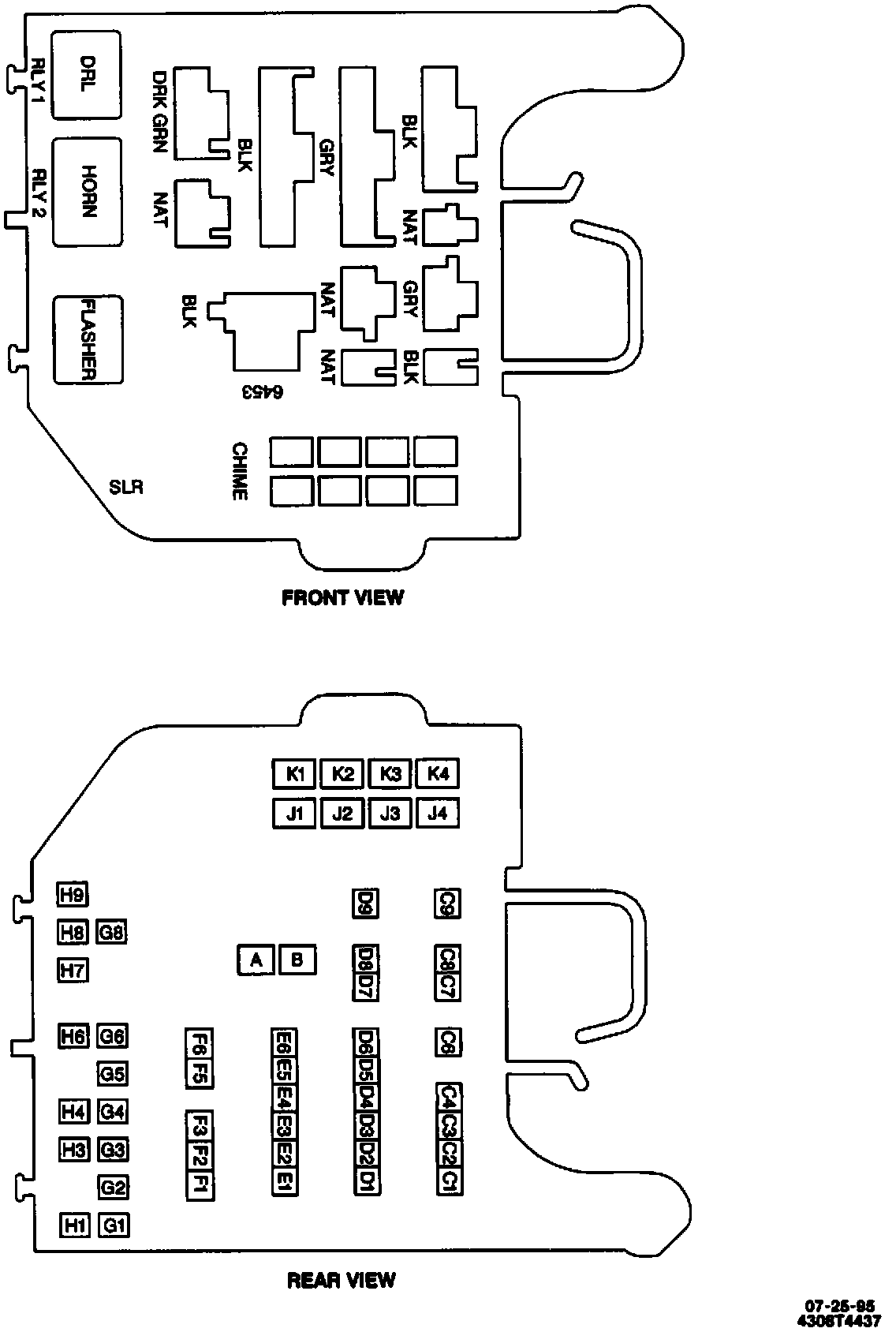

Convenience Center (Part 1 Of 2):

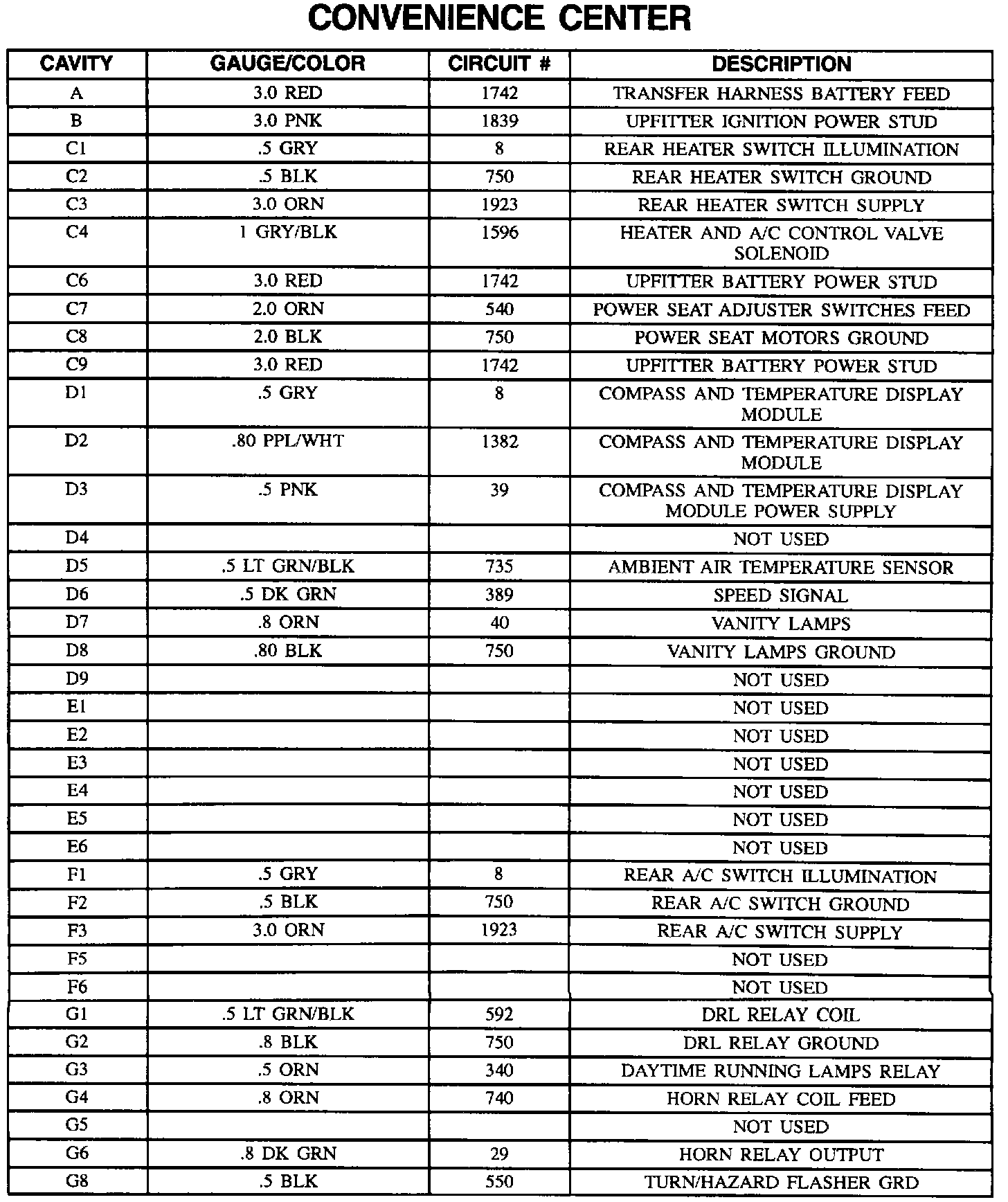

Convenience Center (Part 2 Of 2):
