Transfer Case Controls - Corrected Terminal Call-out
File In Section: 7 - TransmissionBulletin No.: 66-74-02
Date: March, 1996
SERVICE MANUAL UPDATE
Subject:
Section 7D1A - Transfer Case Electronic Controls - Corrected Terminal Call-out
Models:
1996 Chevrolet and GMC K Models
��#:

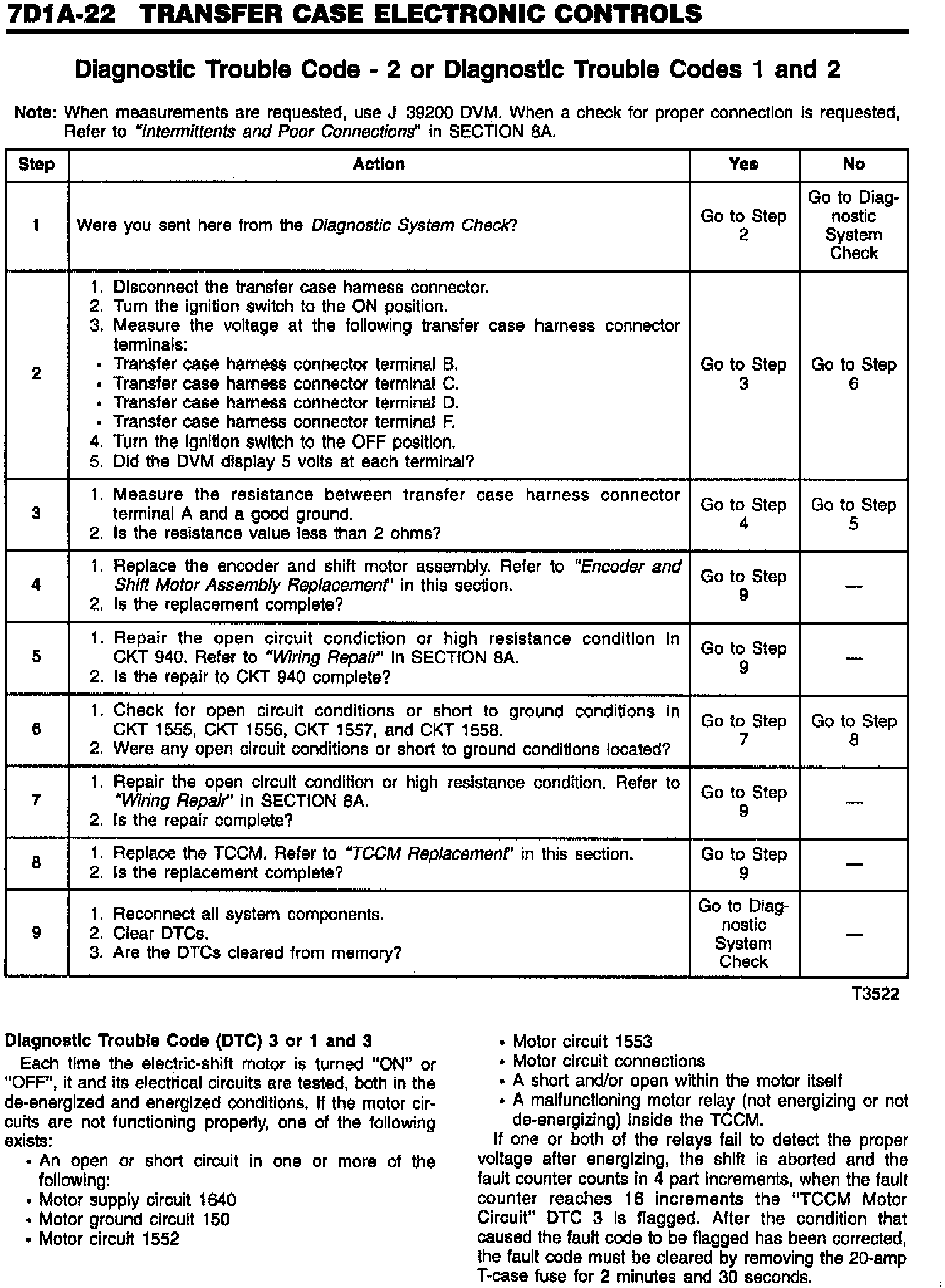

This bulletin has been issued to replace Page 7D1A-22 of the 1996 C/K Service Manual to correct the terminal callout in Step 3 of the Diagnostic Chart. The current terminal is called out as terminal C; the corrected page calls out terminal A. Please replace the incorrect page of your Service Manual with this corrected version.
