Water Deflector

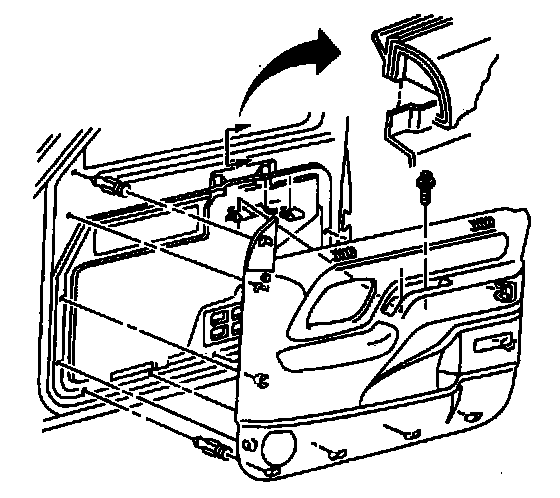

Front Door Trim Panel:

Waterproof deflectors are used to seal the inner panel and prevent water from entering into the body. The deflector is secured by a strip of adhesive between the deflector and door.

Remove or Disconnect

1. Trim panel.
2. Water deflector.
A. Pull the waterproof sealing tape from the deflector.
B. Break the bond between the sealer and the door with a flat-bladed tool.

Install or Connect

1. Water deflector to door.
^ Use waterproof tape or 3M(R) 777 adhesive.
2. Trim panel to the door.
