Power Accessory Switch Panel

Removal Procedure

1. Remove the screws and the armrest cover (YC5).
2. Remove the window handle, if equipped.

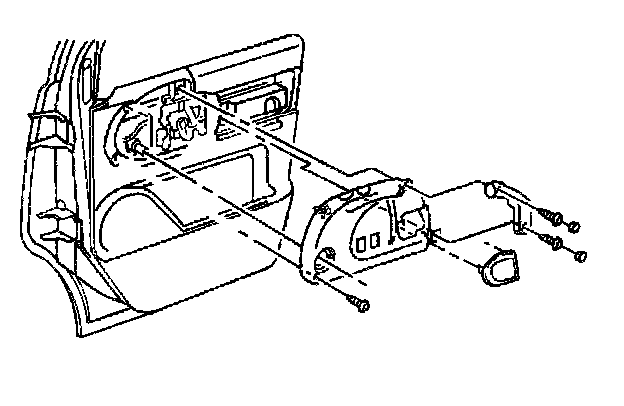

3. Pull out on the escutcheon in order to remove the lock lever escutcheon. Start with the front edge of the escutcheon.
4. Remove the upper corner trim using the following method:
^ Pull the upper corner trim at the top edge.
^ Pivot the upper corner trim down in order to clear the tab at the time panel (YC6 and YC7).
5. Remove the caps that cover the screws.
^ The screws retain the assist handle.
6. Remove the screws that retain the handle to the door.
7. Remove the screw at the front edge of the accessory switch mount plate.
8. Remove the plate from the trim panel.
9. Disconnect the electrical connectors from the switches on the plate, as needed.

Installation Procedure

1. Connect the electrical connectors to the switches on the accessory switch mounting plate, as needed.
2. Install the plate to the trim panel.
3. Install the screw at the front edge of the accessory switch mount plate
4. Install the handle to the door with the screws.

Tighten
Tighten the screws to 5 N.m (44 lb in).

5. Install the caps that cover the screws on the assist handle.
6. Insert the tab in the slot on the door trim panel. Seat the fastener into the door at the top (YC6 and YC7) in order to install the upper corner trim.
7. Snap the lock lever escutcheon into place in order to install the lock lever escutcheon. Start at the rear edge of the escutcheon.
8. Install the window handle, if equipped.
9. Install the armrest cover with the screws (YC5).
