Home >> GMC >> 2000 >> K 3500 Truck 4WD V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Connector Views >> Radio C3 Connector (Except Luxury)

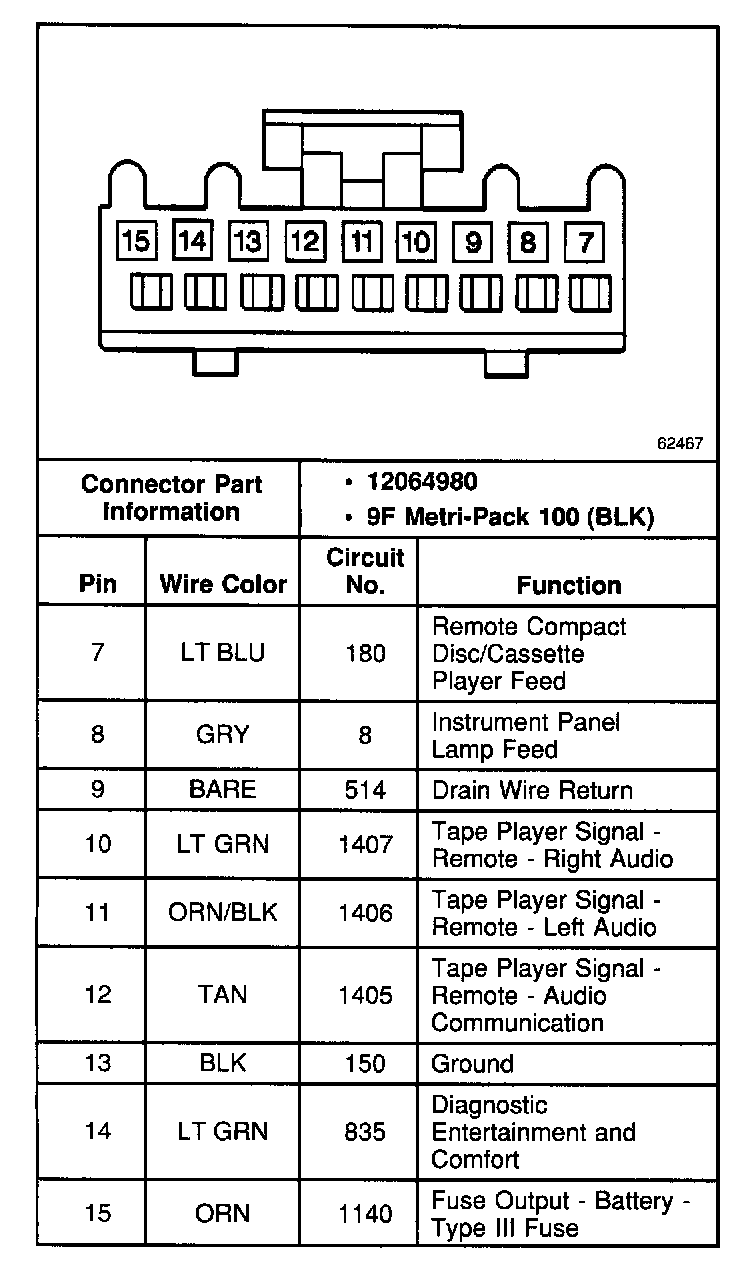

Radio C3 Connector (Except Luxury)

Radio C3 Connector (Except Luxury):
