Front Side Door

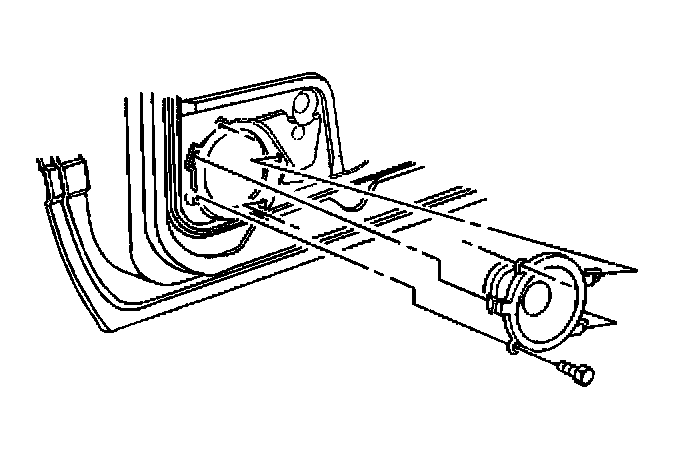

REMOVAL PROCEDURE
1. Remove the trim panel.
2. Remove the screws.
3. Use a small flat-bladed tool in order to release the speaker retainer.
4. Remove the speaker from the door.
5. Disconnect the electrical connector.

INSTALLATION PROCEDURE
1. Connect the electrical connector.
2. Install the speaker in the door.
Snap the speaker into the retainer when the speaker is fully seated.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the screws

Tighten
Tighten the screws to 2 N.m (18 lb in).

4. Install the trim panel.
5. Verify the component's operation.
