Hood Insulator / Pad: Service and Repair



Hood Insulator Replacement

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover


Removal Procedure

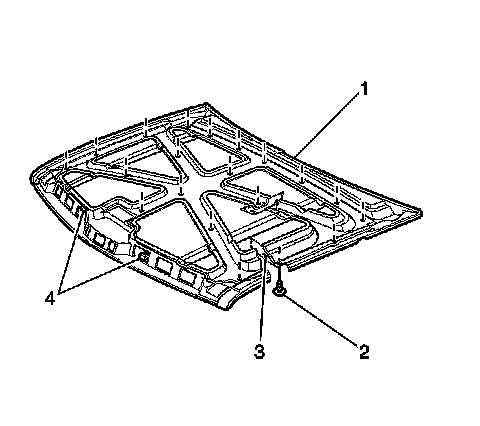

1. Use the J 38778 in order to remove the insulator (3) from the hood retainers (2, 4).
2. Remove the insulator (3) from the hood (1).



Installation Procedure





1. Install the insulator (3) to the hood (1).
2. Install the insulator (3) to the hood retainers (2, 4).
