Rear Seat Head Restraint Replacement (Crew Cab)



Rear Seat Head Restraint Replacement (Crew Cab)

Removal Procedure

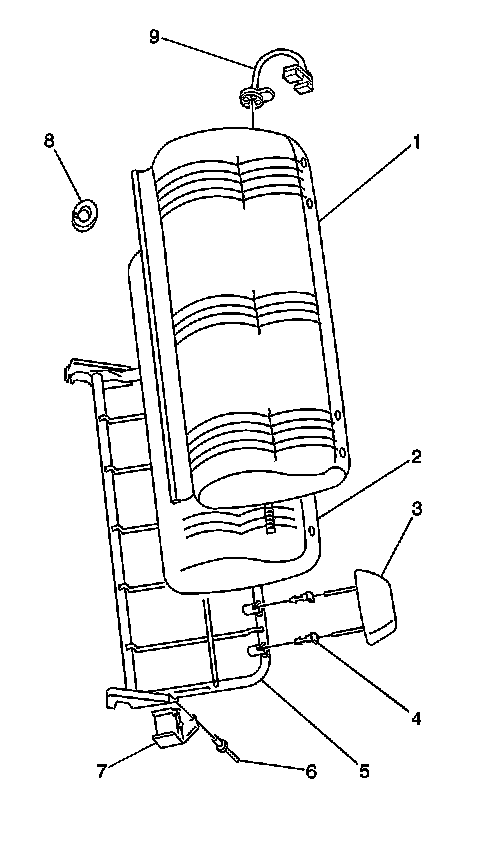

1. Raise the head restraint (3) to the full up position.
2. Insert a paper clip or a similar tool into the hole at the forward edge of the head restraint retainer (4).
3. Press in on the tool in order to release the retainer clips.
4. Lift the head restraint from the retainers.



Installation Procedure





1. Install the head restraint (3) into the retainers (4).
2. Push the head restraint to the full down position.
3. Pull up in order to ensure that the head restraint is engaged with the head restraint retainers.
