C214 (DR Harness RH, Uplevel and Luxury)
C214 (DR Harness RH, Uplevel and Luxury)

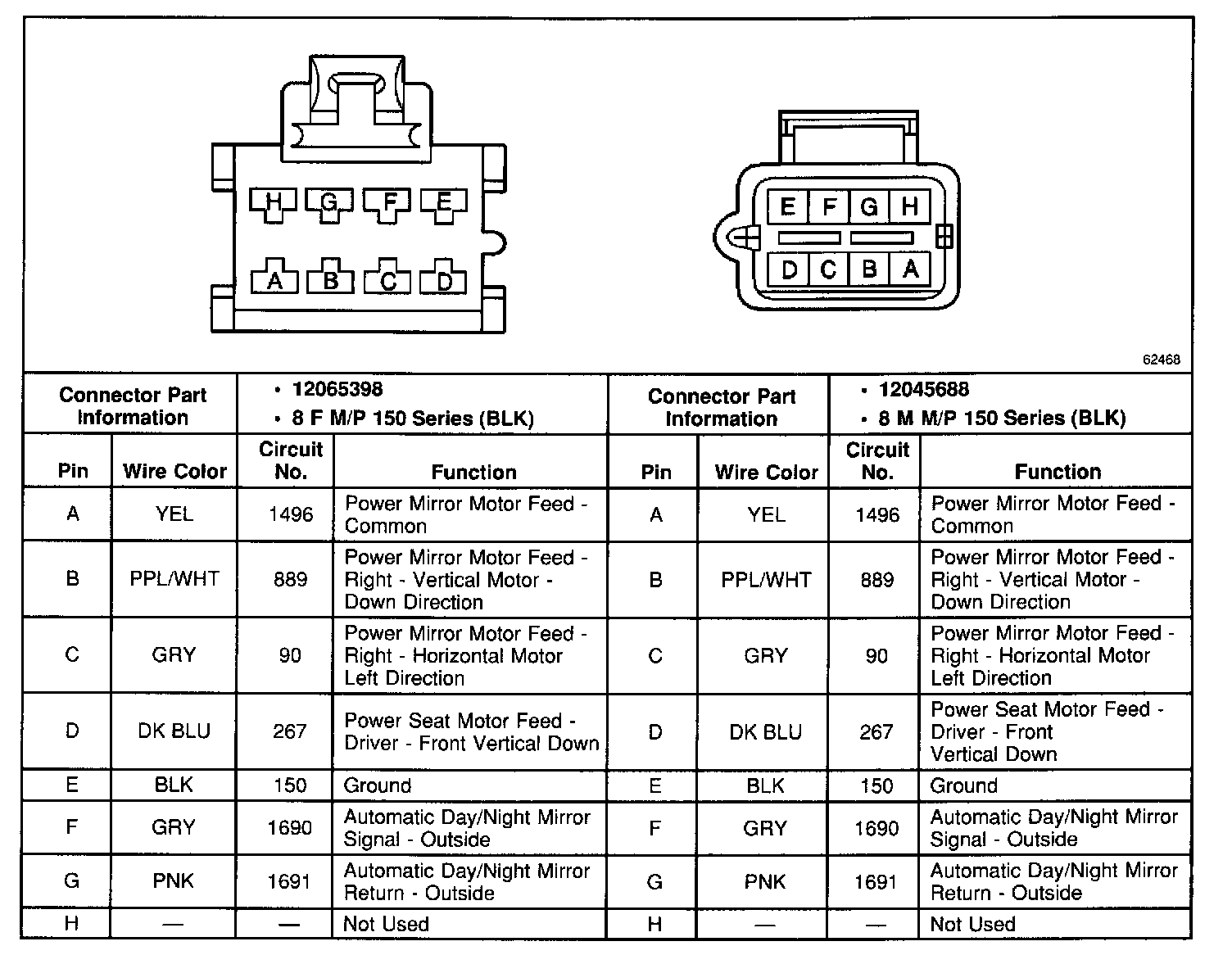

C214 (Crossbody Harness Inline to Door Harness RH, Uplevel and Luxury):
