Operation CHARM
: Car repair manuals for everyone.
Home
>>
GMC
>>
2000
>>
K 3500 Truck 4WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C300 - C399
>>
C305 (Floor Console Harness, Luxury)
C305 (Floor Console Harness, Luxury)

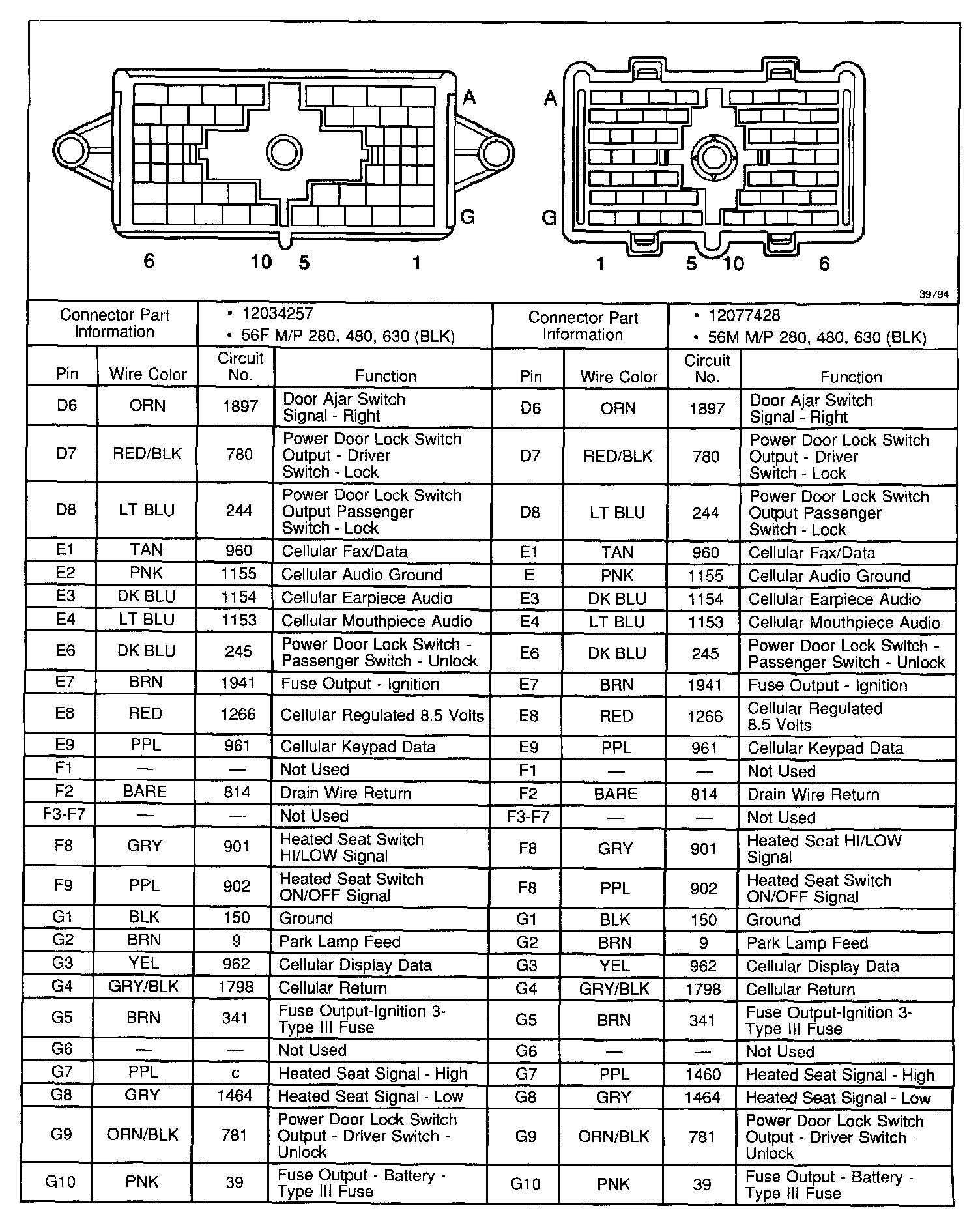

C305 (Crossbody Harness Inline to Floor Console Harness, Luxury) (Part 1 Of 2):
C305 (Crossbody Harness Inline to Floor Console Harness, Luxury) (Part 2 Of 2):
