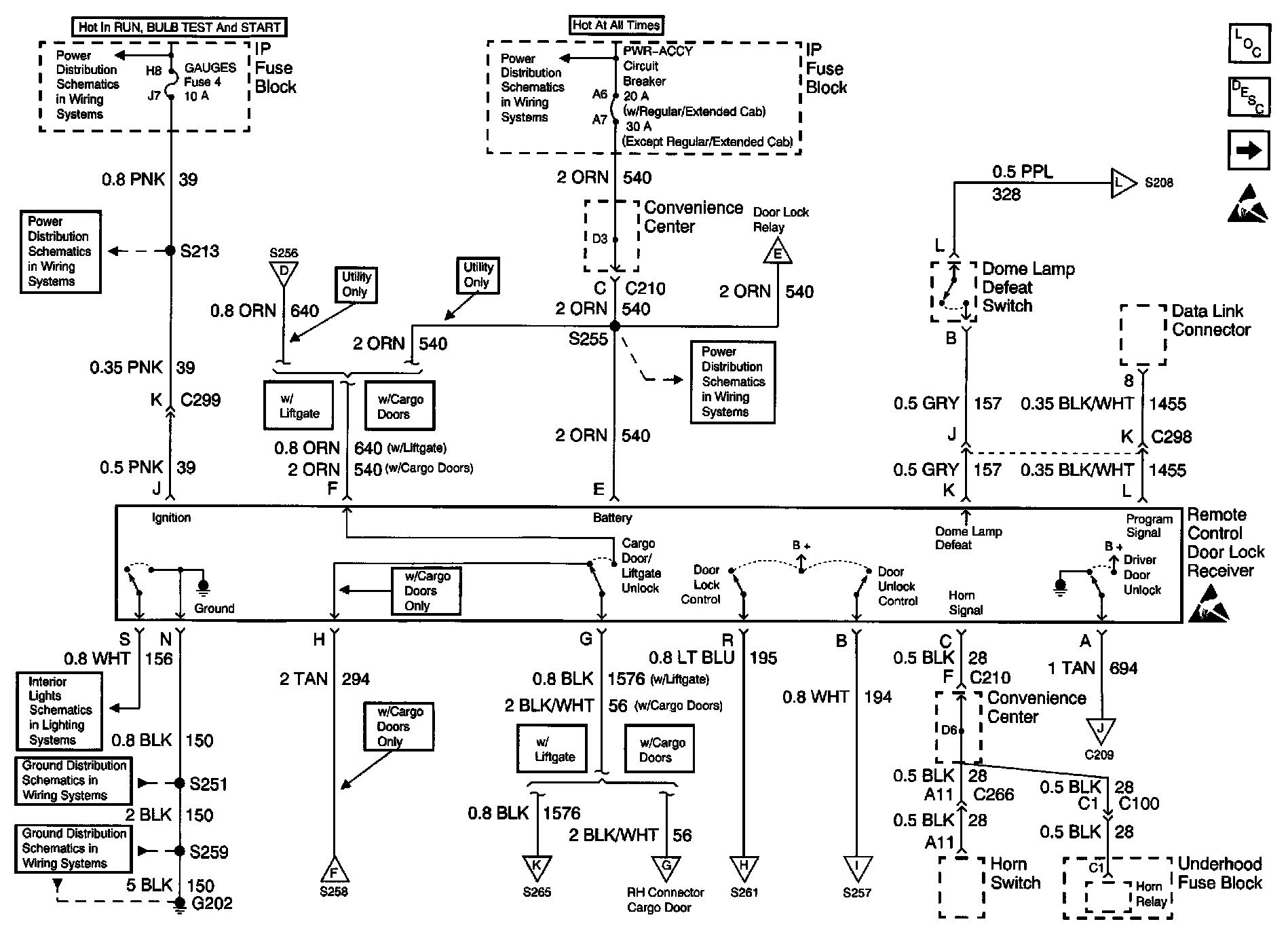

Remote Control Door Lock Receiver

Keyless Entry Schematics (Except Luxury): Remote Control Door Lock Receiver:
