Headlights/Daylights Running Lights (DRL)
>>
Headlamp and Panel Dimmer Switch, Headlamp Control Module
Headlamp and Panel Dimmer Switch, Headlamp Control Module

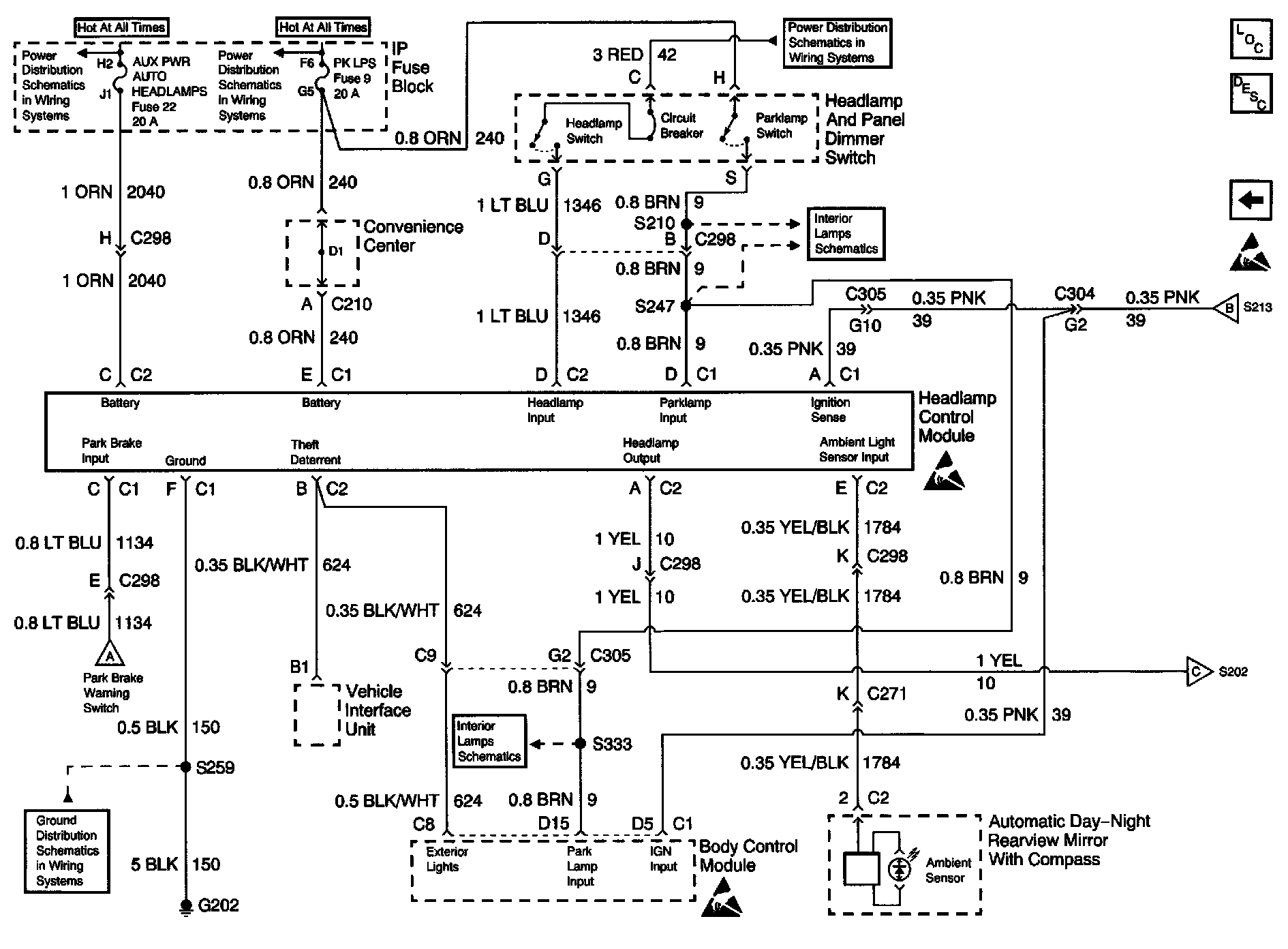

Headlights Twilight Sentinel/Daytime Running Lights (DRL) Schematics: Headlamp and Panel Dimmer Switch, Headlamp Control Module:
