7. Intake Manifold Removal - Upper

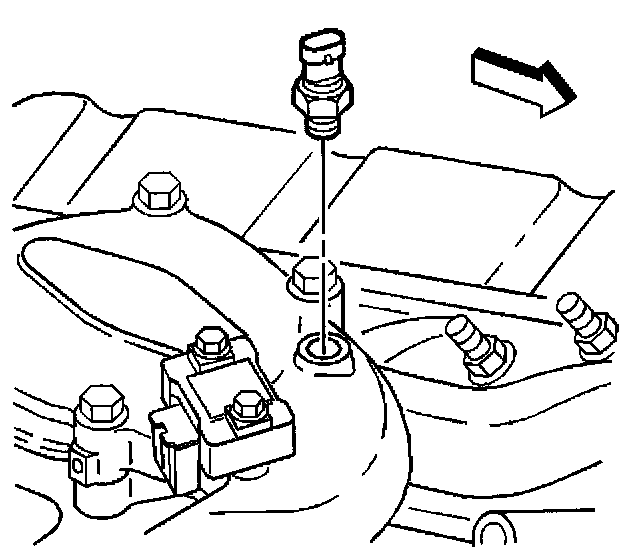

1. Disconnect the Intake Air Temperature (IAT) sensor electrical connector.
2. Remove the IAT sensor.

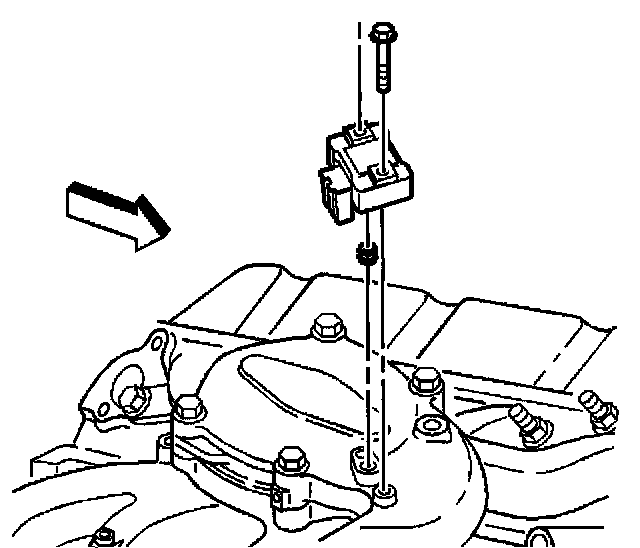

3. Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector.
4. Remove the MAP sensor retaining bolts.
5. Remove the MAP sensor.
6. Remove the gasket.

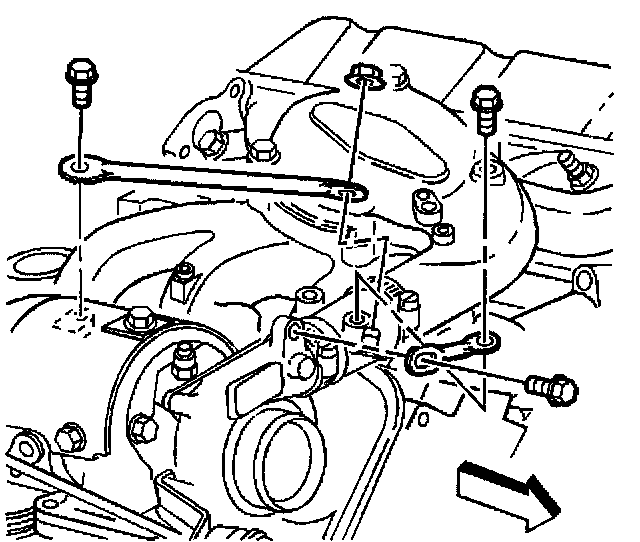

7. Remove the turbocharger short brace retaining bolts.
8. Remove the turbocharger short brace.
9. Remove the turbocharger long brace retaining bolt.
10. Remove the turbocharger long brace retaining nut.
11. Remove the turbocharger long brace.





12. Loosen the turbocharger connection hose clamps.
13. Loosen the turbocharger connection hose.
13.1. Insert a small flat screwdriver blade between the turbocharger connection hose and the turbocharger and slide the screwdriver blade along the surface of the turbocharger until the hose twists freely.
13.2. Insert a small flat screwdriver blade between the turbocharger connection hose and the upper intake manifold and slide the screwdriver blade along the surface of the upper intake manifold until the hose twists freely.

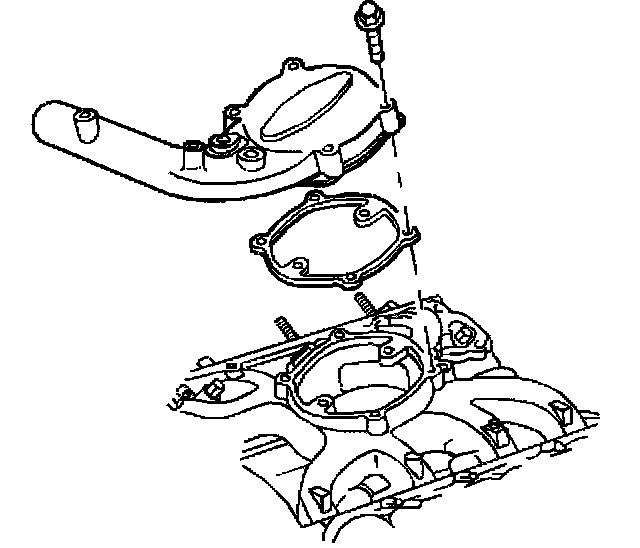

14. Remove the upper intake manifold retaining bolts.
15. Remove the upper intake manifold.
16. Remove the gasket.
17. Remove the intake manifold.
