93. Accessory Installation






1. Install the left accessory/lift bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the left accessory/lift bracket retaining bolts.
^ Tighten the bolts to 50 Nm (37 lb ft).
3. Install the left accessory/lift bracket retaining nut (if equipped).
^ Tighten the nut to 50 Nm (37 lb ft).





4. Install the vacuum pump.
5. Install the vacuum pump retaining bolts.
^ Tighten the bolts to 25 Nm (19 lb ft).

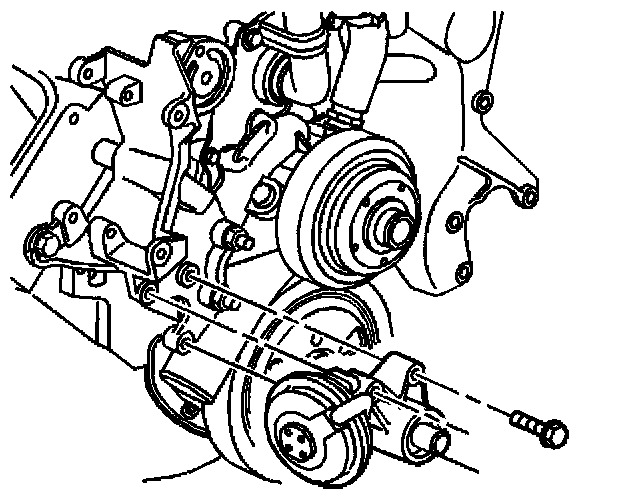

6. Install the drive belt tensioner.
7. Install the drive belt tensioner retaining bolt.
^ Tighten the bolts to 83 Nm (61 lb ft).
